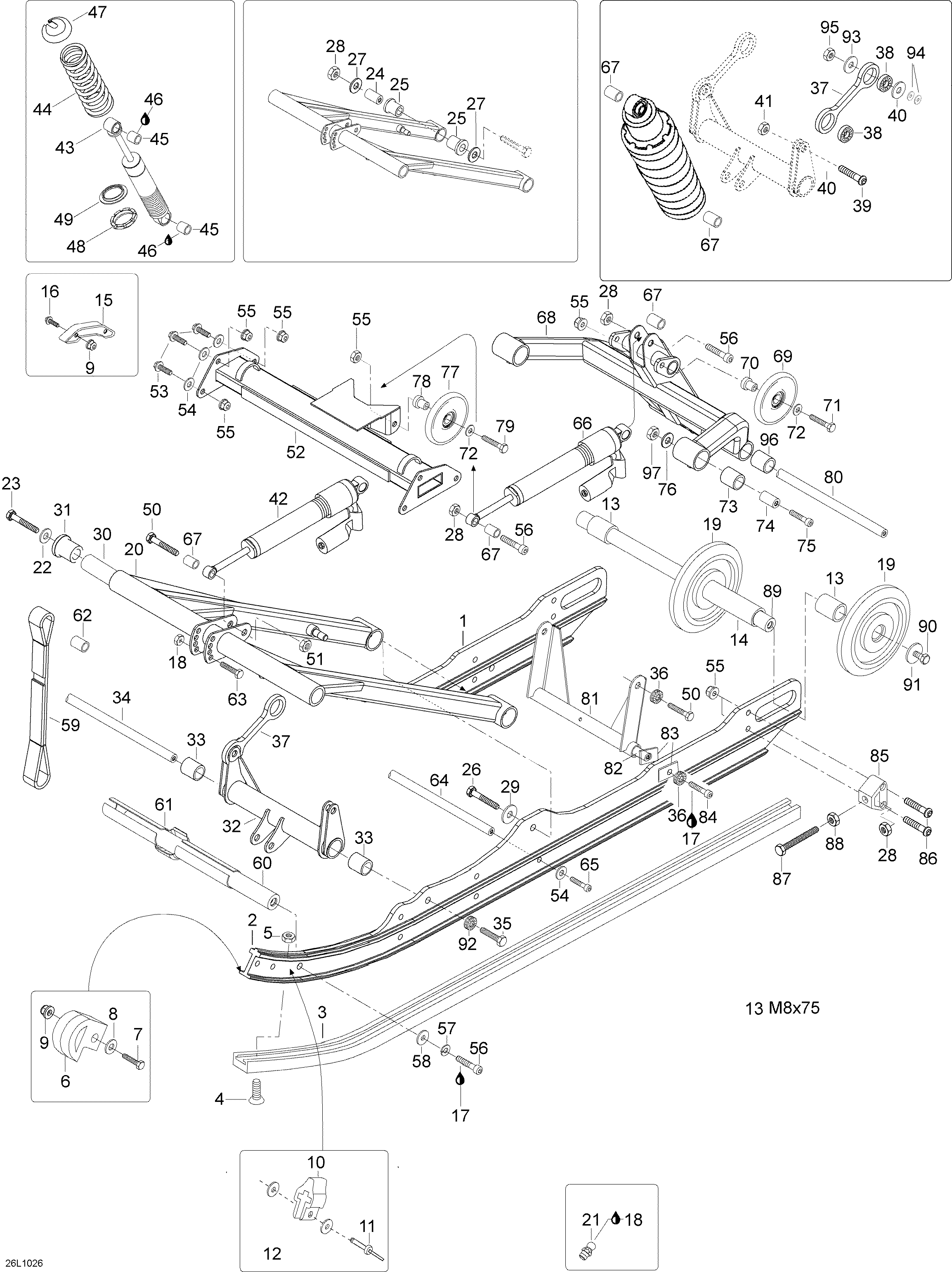

08- Rear Suspension для BRP Lynx Rave RS 600 - 2010
-
№АртикулНазвание
-
1503191978 R.H. RunnerR.H. Runner
-
2503191978 L.H. RunnerL.H. Runner
-
3503192189 ShoeShoe
-
4208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6503191137 Runner ProtectorRunner Protector
-
7207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
9233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
10503192106 Rubber StopperRubber Stopper
-
11293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
12503191273 WasherWasher
-
135441512 SleeveSleeve
-
145448027 SleeveSleeve
-
155343191 Sliding PadSliding Pad
-
16207764044 Bolt Carriage DIN.603Bolt Carriage DIN.603
-
17293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
18293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
19503189478 Thin Wheel 165Thin Wheel 165
-
20503191989 Front armFront arm
-
21408200700 Grease FittingGrease Fitting
-
22250200005 Conical Spring Washer M12Conical Spring Washer M12
-
23207026044 Hex. Screw M12 x 60Hex. Screw M12 x 60
-
24605354157 ShaftShaft
-
2531065 CushionCushion
-
26207007044 Hex. Screw M10 X 70Hex. Screw M10 X 70
-
27605355801 WasherWasher
-
28232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
29503183300 WasherWasher
-
30503192046 ShaftShaft
-
3131024 CushionCushion
-
32605355772 Front Arm weldFront Arm weld
-
3331024 CushionCushion
-
34605355800 ShaftShaft
-
35205005547 Screw M10 x 55Screw M10 x 55
-
3620068 Lock washer D10Lock washer D10
-
37605254159 Link plateLink plate
-
38605631003 Ball bearingBall bearing
-
39205402546 Socket Screw BN.HD.ISO.7380Socket Screw BN.HD.ISO.7380
-
40234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
41232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
43503192315 Shock, front armShock, front arm
-
43503192317 Shock, rear armShock, rear arm
-
44503192355 Spring, front armSpring, front arm
-
44605625000 Spring, rear armSpring, rear arm
-
4531094 CushionCushion
-
4632161 Loctite 641, 50mlLoctite 641, 50ml
-
47605354631 Spring stopperSpring stopper
-
48230048 CamCam
-
49230049 Spring guideSpring guide
-
50207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
51232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
52503192100 Middle beam blackMiddle beam black
-
53207182544 Hex. Screw M8 X 25Hex. Screw M8 X 25
-
54605620002 Washer A8,4Washer A8,4
-
55233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
56205005044 Socket head screw M10 x 45Socket head screw M10 x 45
-
57234001410 Flat Washer 10 mmFlat Washer 10 mm
-
5820005 Washer, hardened M10Washer, hardened M10
-
59605355116 Stopper strapStopper strap
-
60605353958 ShaftShaft
-
61605355096 LimiterLimiter
-
62605455335 SleeveSleeve
-
63207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
645343471 ShaftShaft
-
65205005044 Socket head screw M10 x 50Socket head screw M10 x 50
-
675446652 SleeveSleeve
-
68605354962 Rear armRear arm
-
6946100 Idler wheel 133/blackIdler wheel 133/black
-
70605454461 SleeveSleeve
-
71207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
7220077 Washer A8,4Washer A8,4
-
7331065 Upper Cushion rear armUpper Cushion rear arm
-
74503191927 ShaftShaft
-
75205027544 Socket head screwSocket head screw
-
7620040 Washer A12.5Washer A12.5
-
77572043500 Idler WheelIdler Wheel
-
78605454167 SleeveSleeve
-
79207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
80605355118 ShaftShaft
-
81605353953 Rear armRear arm
-
82605355119 ShaftShaft
-
83503192045 Support plateSupport plate
-
84205005547 Socket head screw M10 x 55Socket head screw M10 x 55
-
855341633 TensionerTensioner
-
86205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
87230100044 Hex. Screw M10 X 100Hex. Screw M10 X 100
-
88232006414 Hex. Nut M10Hex. Nut M10
-
895341511 ShaftShaft
-
90207303544 Hex. Screw M10 x 35 (Scotch Grip)Hex. Screw M10 x 35 (Scotch Grip)
-
91503183300 WasherWasher
-
92512056700 Lock WasherLock Washer
-
9325004 Cup spring 28 X 10,2 X 1,25Cup spring 28 X 10,2 X 1,25
-
94234001410 Flat Washer 10 mmFlat Washer 10 mm
-
95233401414 Lock spring nut M10Lock spring nut M10
-
9631024 Lower Cushion rear armLower Cushion rear arm
-
97232521414 Elastic Stop Nut M12Elastic Stop Nut M12
