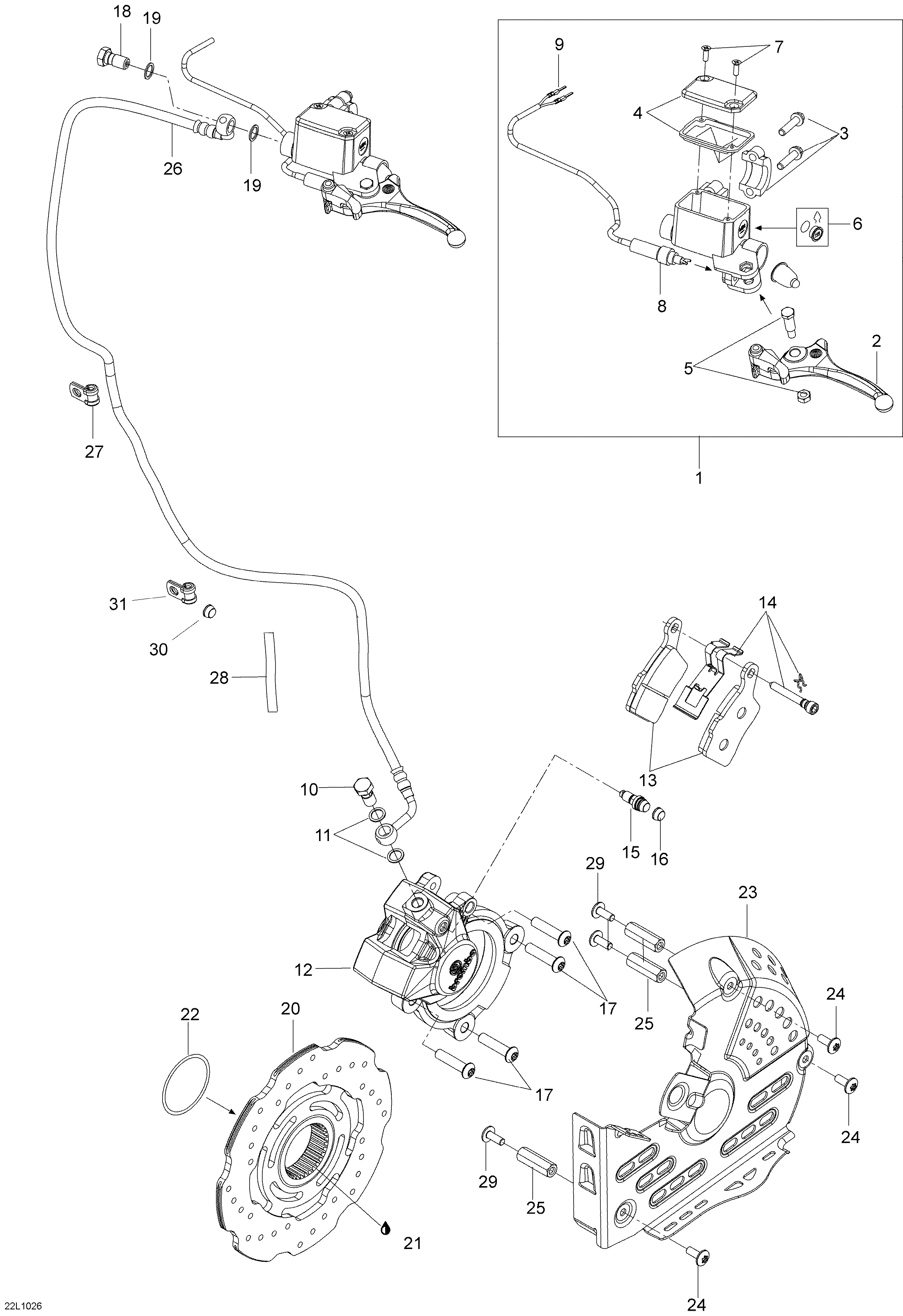

06- Hydraulic Brake для BRP Lynx Rave RS 600 - 2010
-
№АртикулНазвание
-
1507032511 Cylinder MAster Ass'y. Includes 1 to 9Cylinder MAster Ass'y. Includes 1 to 9
-
2507032428 LeverLever
-
3507032477 ClampClamp
-
4415029900 CapCap
-
5415030000 Pin Ass'yPin Ass'y
-
7216141260 Screw M4 X 12Screw M4 X 12
-
8515176468 Microswitch. Includes 8 to 9Microswitch. Includes 8 to 9
-
9515175232 Male TerminalMale Terminal
-
10414920500 Banjo BoltBanjo Bolt
-
11414920600 WasherWasher
-
12507032501 Brake Caliper Ass'y. Includes 12 to 16Brake Caliper Ass'y. Includes 12 to 16
-
13507032489 Brake Pads KitBrake Pads Kit
-
14507032474 Kit, Pin, Clip, SpringKit, Pin, Clip, Spring
-
17250000301 Torx Screw M8 X 35, Scotch GripTorx Screw M8 X 35, Scotch Grip
-
18414920500 Banjo BoltBanjo Bolt
-
19414920600 WasherWasher
-
20507032488 DiskDisk
-
21293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
22293300134 O-RingO-Ring
-
23507032446 Disk Protector, AluminumDisk Protector, Aluminum
-
24250000365 Torx Screw M6 X 16Torx Screw M6 X 16
-
25507032497 Threaded TubeThreaded Tube
-
26507032505 HoseHose
-
27705600459 ClampClamp
-
28409901700 Tubing 9 mmTubing 9 mm
-
29207761644 Carriage Bolt M6 X 16Carriage Bolt M6 X 16
-
30293900098 BushingBushing
-
31414176000 Open ClampOpen Clamp
