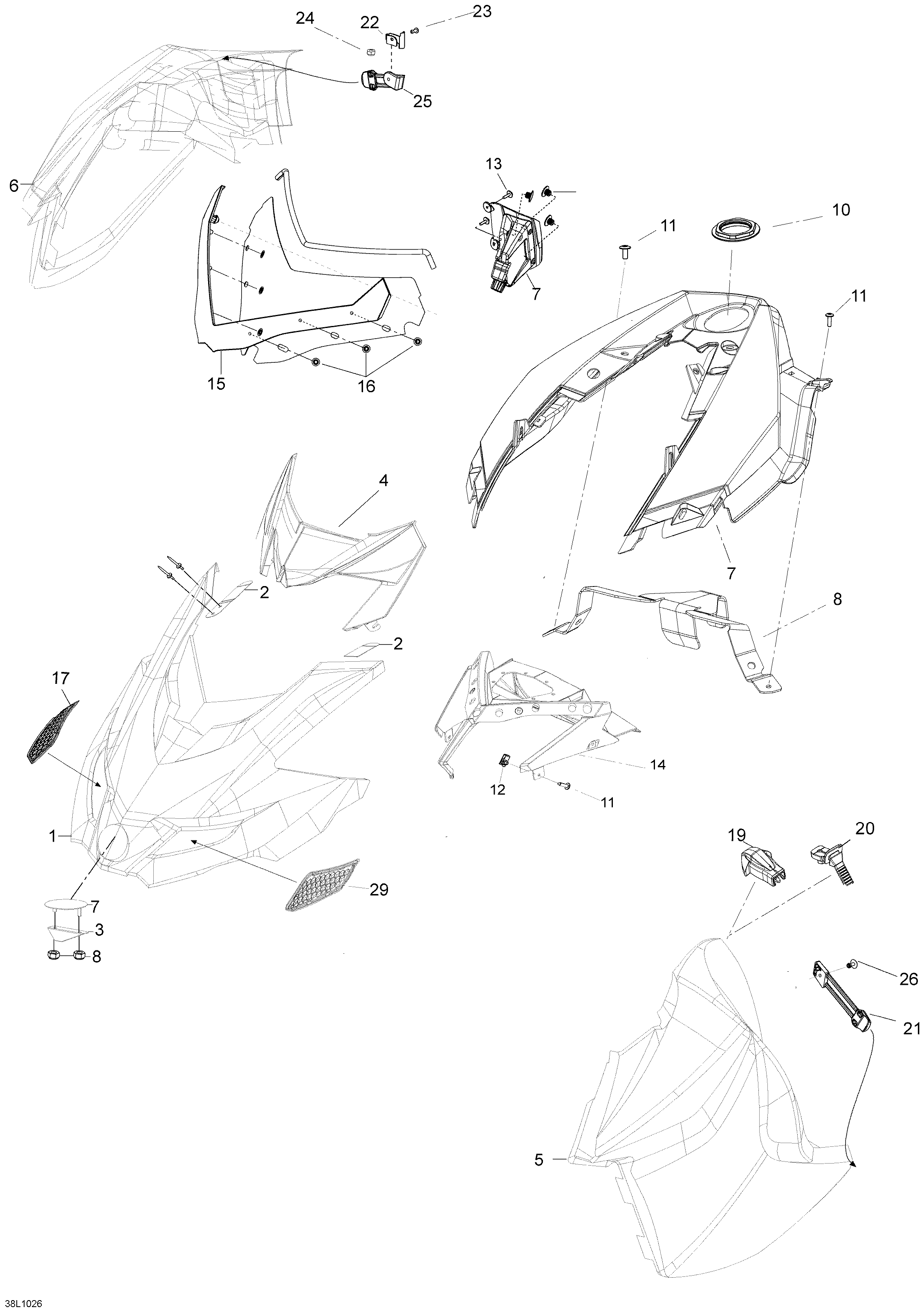

09- Hood для BRP Lynx Rave RS 600 - 2010
-
№АртикулНазвание
-
1517304389 Hood/console WhiteHood/console White
-
2517304152 Rear fastening plate. Only for light weight hoodsRear fastening plate. Only for light weight hoods
-
3517304153 Front fastening plate. Only for light weight hoodsFront fastening plate. Only for light weight hoods
-
4517303979 Headlamp coverHeadlamp cover
-
5517304546 L.H. PanelL.H. Panel
-
6517304548 R.H. PanelR.H. Panel
-
7517304333 ConsoleConsole
-
8517304230 Console support blackConsole support black
-
936037 Rivet black 4.8x16Rivet black 4.8x16
-
10517302575 Console NutConsole Nut
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250000048 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
13293150170 Pop Rivet 5/32''Pop Rivet 5/32''
-
14517304699 Indicator SupportIndicator Support
-
15860200089 Windshield Support KitWindshield Support Kit
-
XXX517304293 Wind shieldWind shield
-
16517303756 GrommetGrommet
-
17517304008 Grill LHGrill LH
-
18517302785 ClipClip
-
19517304075 End Piece LatchEnd Piece Latch
-
20517303981 Panel LatchPanel Latch
-
21517303612 Panel LatchPanel Latch
-
22517304221 Latch SupportLatch Support
-
23207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
24233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
25517303808 Panel LatchPanel Latch
-
26293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
27517303968 Deflector packDeflector pack
-
28517304186 Support air intake silencerSupport air intake silencer
-
29517304141 Grill RHGrill RH
