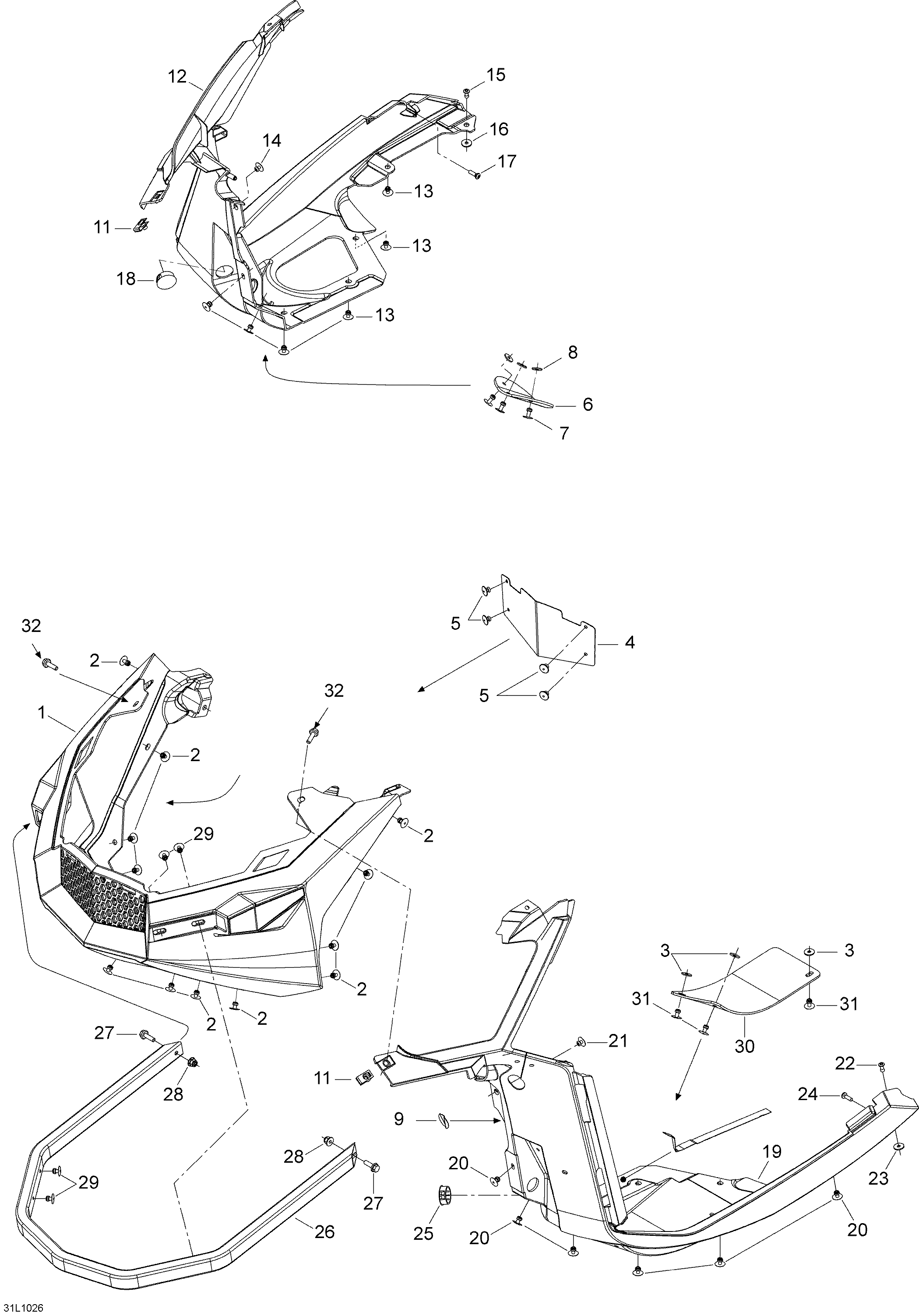

09- Bottom Pan для BRP Lynx Rave RS 600 - 2010
-
№АртикулНазвание
-
1502006971 Front Bottom Pan, Depp BlackFront Bottom Pan, Depp Black
-
2293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4502007056 Bottom Pan PlateBottom Pan Plate
-
5293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
6502006935 Snow DeflectorSnow Deflector
-
7293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
8517124300 WasherWasher
-
9293250087 Gasket, NeopreneGasket, Neoprene
-
11250000048 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
12502007035 RH Bottom PanRH Bottom Pan
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
15390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
16517124300 WasherWasher
-
17250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
18414916600 Nylon CapNylon Cap
-
19502006832 LH Bottom PanLH Bottom Pan
-
20293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
21293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
22390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
23517124300 WasherWasher
-
24250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
25414916600 Nylon CapNylon Cap
-
26502007116 Front BumperFront Bumper
-
27207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
28233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
30502006888 Guard PlateGuard Plate
-
31293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
32250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
