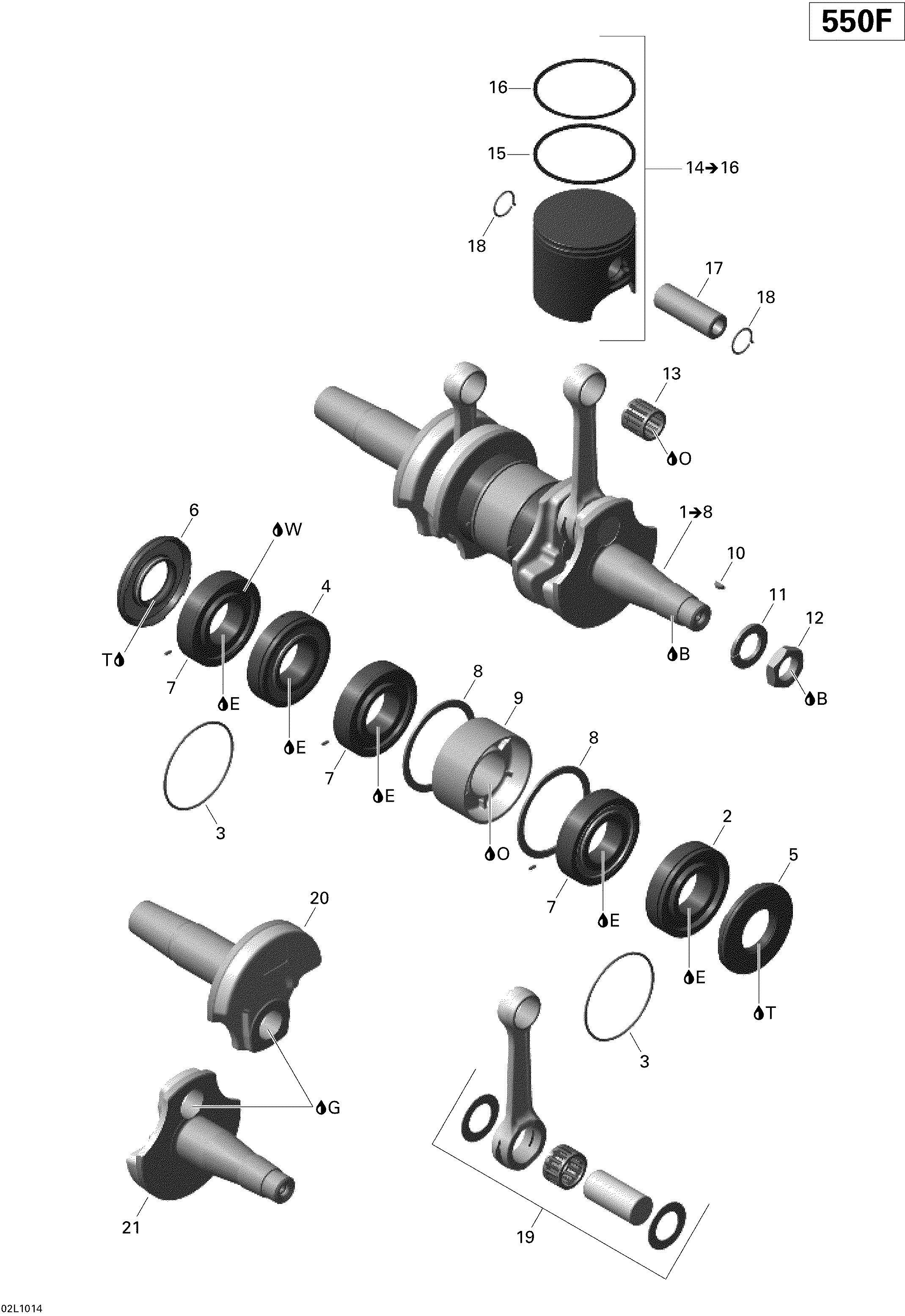

01- Crankshaft And Pistons для BRP Lynx Xtrim 550 - 2010
-
№АртикулНазвание
-
1420889067 Crankshaft. Includes 1 to 8Crankshaft. Includes 1 to 8
-
2420832571 Ball BearingBall Bearing
-
3293300022 O-Ring, 64 mm X 2 mmO-Ring, 64 mm X 2 mm
-
4420832632 Ball BearingBall Bearing
-
5420831952 Oil SealOil Seal
-
6420831955 Oil SealOil Seal
-
7420832573 Ball BearingBall Bearing
-
8420927710 Retaining DiskRetaining Disk
-
9420850149 Labyrinth SleeveLabyrinth Sleeve
-
10420246055 Woodruff KeyWoodruff Key
-
11420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
12420842239 Hex. Nut, M22 X 1.5Hex. Nut, M22 X 1.5
-
13420832445 Needle BearingNeedle Bearing
-
14420889050 Piston Ass'y 75.86 mm, Standard. Includes 14 to 16Piston Ass'y 75.86 mm, Standard. Includes 14 to 16
-
14420889051 Piston Ass'y 76.11 mm, 1st Oversize. Includes 14 to 16Piston Ass'y 76.11 mm, 1st Oversize. Includes 14 to 16
-
14420889052 Piston Assy 76.36 mm, 2nd Oversize. Includes 14 to 16Piston Assy 76.36 mm, 2nd Oversize. Includes 14 to 16
-
15420815300 Rectangular Ring, StandardRectangular Ring, Standard
-
15420815301 Rectangular Ring, 1stRectangular Ring, 1st
-
15420815302 Rectangular Ring, 2ndRectangular Ring, 2nd
-
16420815155 Semi-Trapez Ring, StandardSemi-Trapez Ring, Standard
-
16420815156 Semi-Trapez Ring, 1stSemi-Trapez Ring, 1st
-
16420815157 Semi-Trapez Ring, 2ndSemi-Trapez Ring, 2nd
-
17420916407 Piston PinPiston Pin
-
18420845106 Piston CirclipPiston Circlip
-
19420889068 Rod Repair KitRod Repair Kit
-
21420819210 Crankshaft MAG SideCrankshaft MAG Side
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
E293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
G413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
T420899271 Petamo Grease, GHY133N, 400 gPetamo Grease, GHY133N, 400 g
-
W293550021 Isoflex Grease, TOPAS NB52, 50 gIsoflex Grease, TOPAS NB52, 50 g
