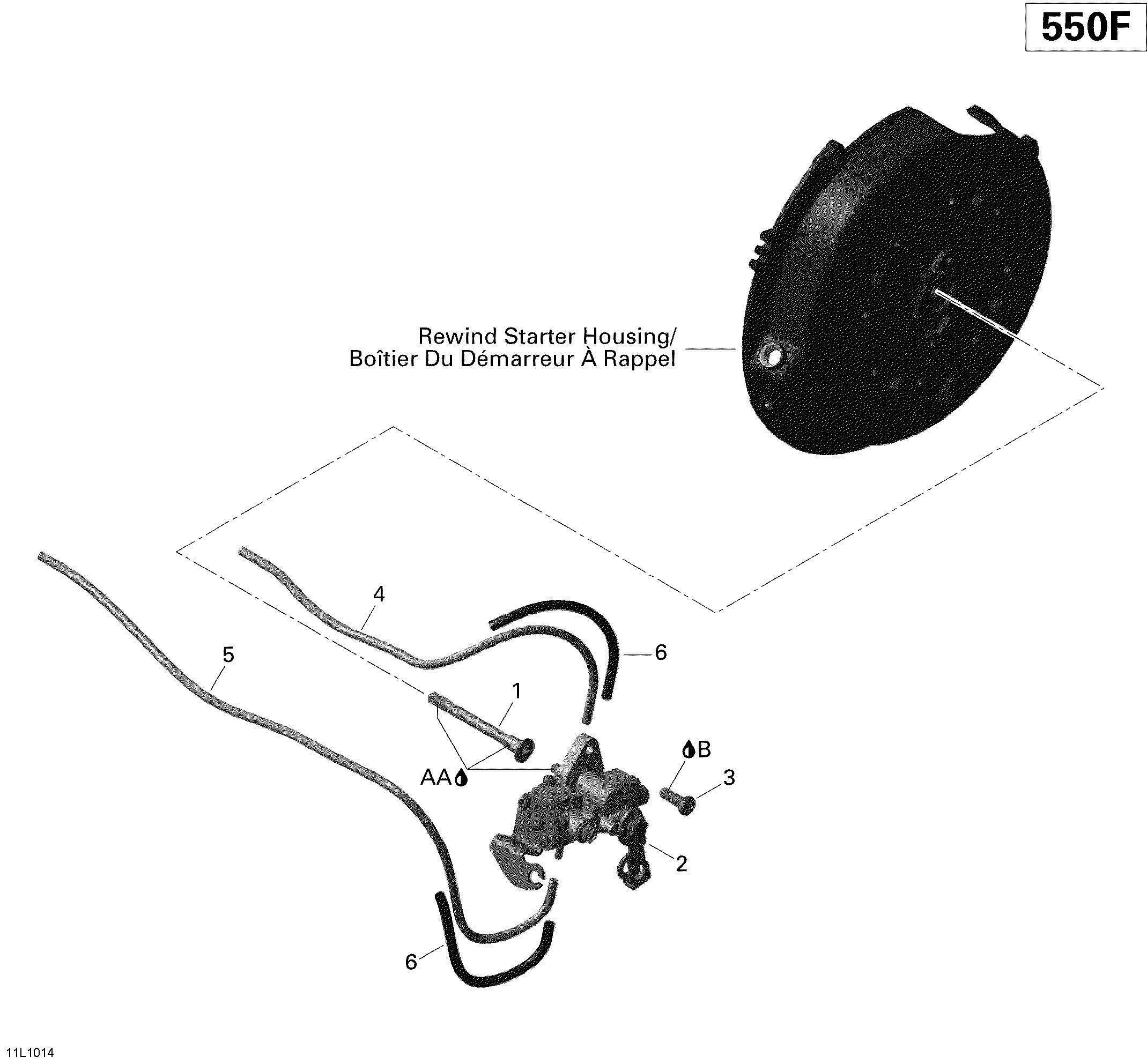

02- Oil Pump для BRP Lynx Xtrim 550 - 2010
-
№АртикулНазвание
-
1420820090 Oil Pump ShaftOil Pump Shaft
-
2420892291 Oil PumpOil Pump
-
3420841971 ScrewScrew
-
4414413800 Oil HoseOil Hose
-
5414413800 Oil HoseOil Hose
-
6420960728 Isolation LineIsolation Line
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
AA420899763 Molykote PG 54, 10 gMolykote PG 54, 10 g
