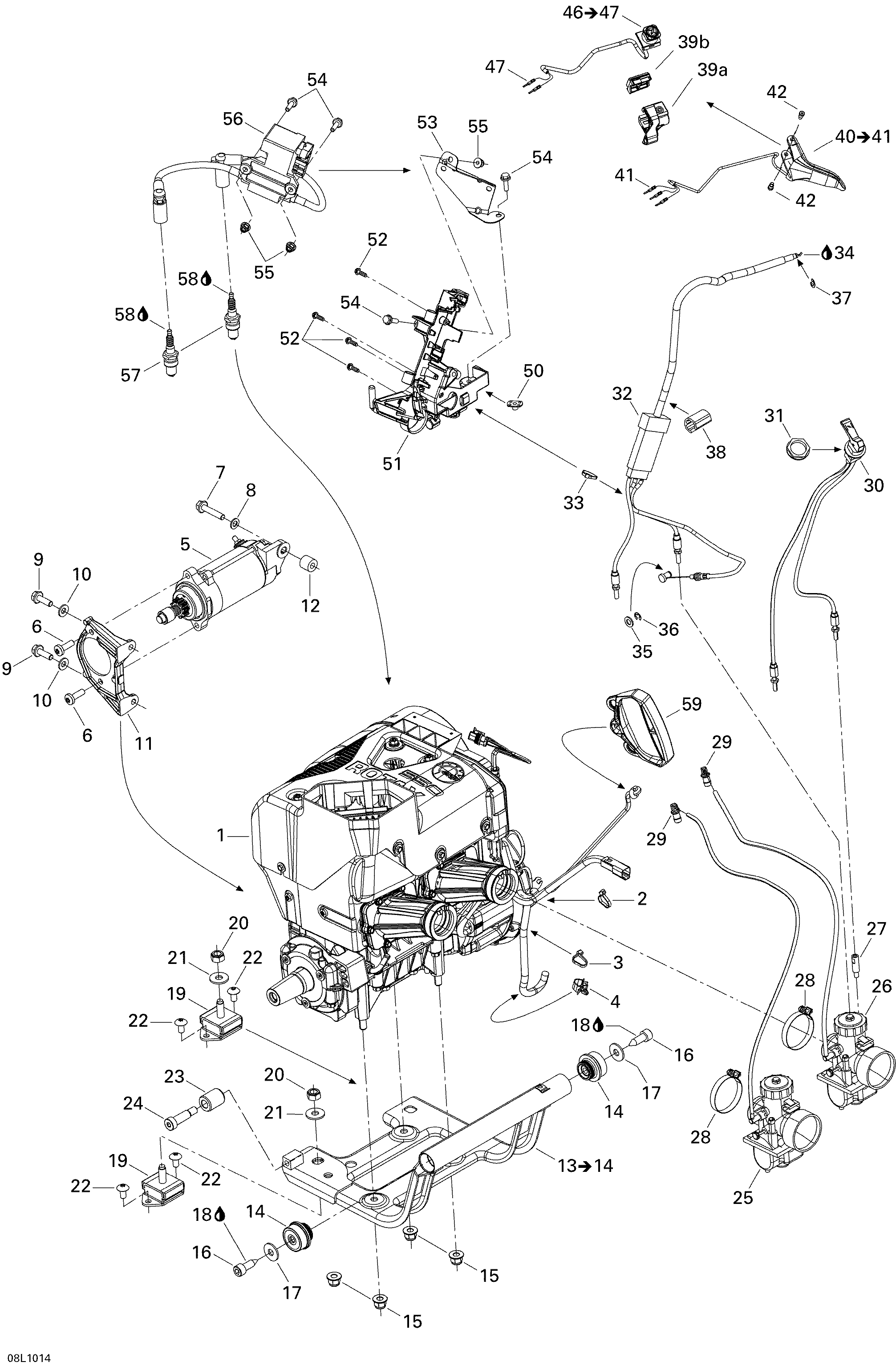

01- Engine для BRP Lynx Xtrim 550 - 2010
-
№АртикулНазвание
-
2414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4515176795 ClipClip
-
5515176858 Starter Ass'y. Electric StartStarter Ass'y. Electric Start
-
6250000248 Torx Screw M8 X 25, Scotch Grip. Electric StartTorx Screw M8 X 25, Scotch Grip. Electric Start
-
7207584044 Hex. Flanged Screw M8 X 40, Scotch Grip. Electric StartHex. Flanged Screw M8 X 40, Scotch Grip. Electric Start
-
8250200008 Flat Washer 8 mm. Electric StartFlat Washer 8 mm. Electric Start
-
9207582586 Hex. Flanged Screw M8 X 25, Scotch Grip. Electric StartHex. Flanged Screw M8 X 25, Scotch Grip. Electric Start
-
10234281474 Conical Spring Washer M8. Electric StartConical Spring Washer M8. Electric Start
-
11512060328 Support. Electric StartSupport. Electric Start
-
12515176597 Spacer. Electric StartSpacer. Electric Start
-
13512060637 Engine Support Ass'yEngine Support Ass'y
-
14512059691 Rubber MountRubber Mount
-
15233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
16250000094 Screw M10 X 30Screw M10 X 30
-
17250200014 Flat WasherFlat Washer
-
18413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
19512060564 Rubber MountRubber Mount
-
20232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
21250200014 Flat WasherFlat Washer
-
22250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
23512060395 StopperStopper
-
24250000463 Socket Head Screw, Scotch GripSocket Head Screw, Scotch Grip
-
25403138810 Carburetor VM30-217, PTOCarburetor VM30-217, PTO
-
26403138801 Carburetor VM30-216, MAGCarburetor VM30-216, MAG
-
27512060562 ExtensionExtension
-
28512059834 Gemi ClampGemi Clamp
-
29414814100 Male ConnectorMale Connector
-
30512060319 Choke CableChoke Cable
-
31512060016 Plastic NutPlastic Nut
-
32512060320 Throttle CableThrottle Cable
-
33293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
34293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
35234081100 Flat Washer 8 mmFlat Washer 8 mm
-
36414753500 CirclipCirclip
-
37414274500 CirclipCirclip
-
38512060313 ProtectorProtector
-
39a512060198 Upper Housing Ass'yUpper Housing Ass'y
-
39b512060430 Lower HousingLower Housing
-
40512060466 Throttle Handle Ass'yThrottle Handle Ass'y
-
41515175232 Male TerminalMale Terminal
-
42732601143 Flanged ScrewFlanged Screw
-
46515176725 Kill SwitchKill Switch
-
47515175232 Male TerminalMale Terminal
-
50293100003 Nut M6Nut M6
-
51512060278 Coil SupportCoil Support
-
52241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
53512060460 Support CoilsSupport Coils
-
54207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
55233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
56512060324 Calibrated ModuleCalibrated Module
-
57512059552 Spark Plug, NGK BR9ECS-5Spark Plug, NGK BR9ECS-5
-
58293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
59512060136 Starter GripStarter Grip
