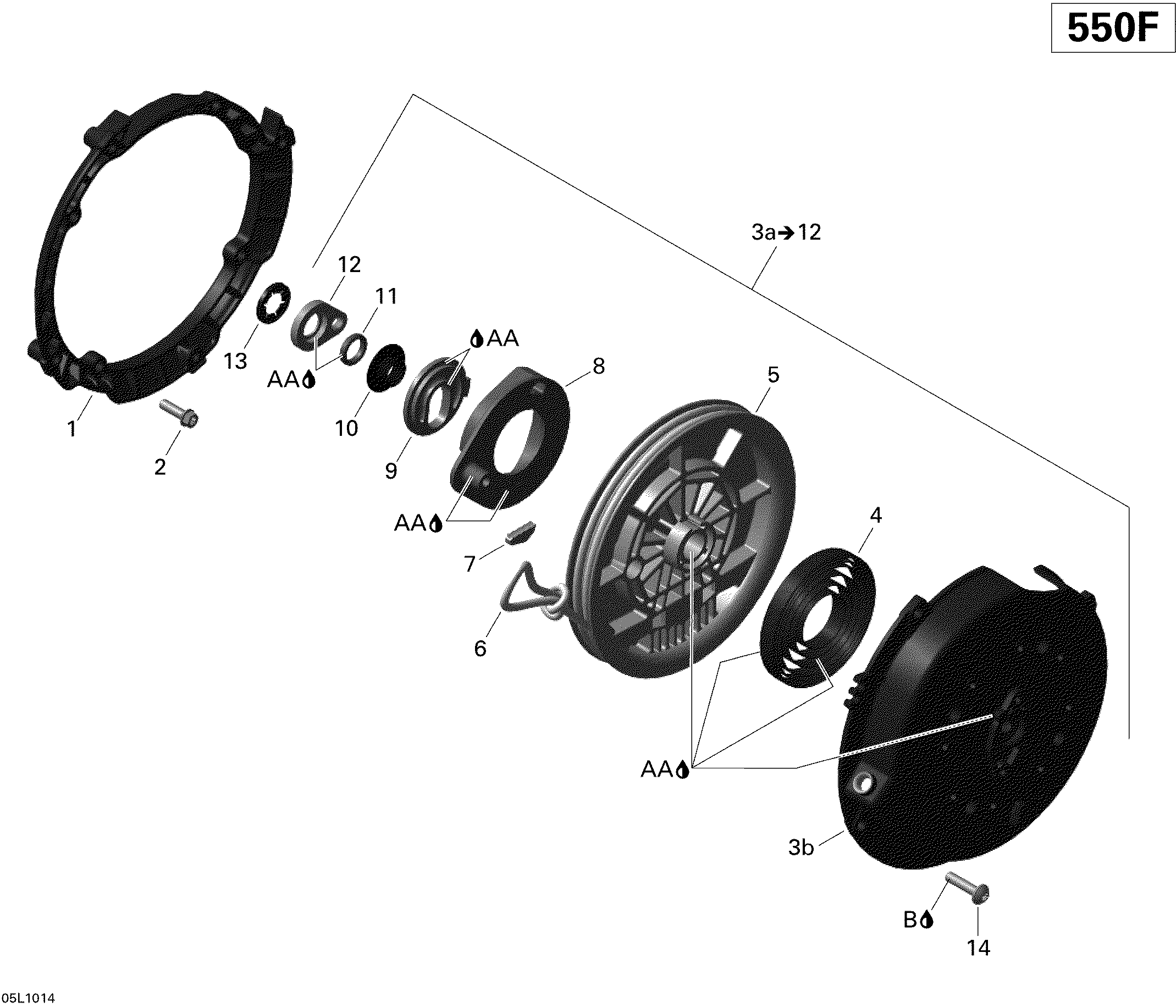

04- Rewind Starter для BRP Lynx Xtrim 550 - 2010
-
№АртикулНазвание
-
1420810955 Flange ConnectorFlange Connector
-
2420440202 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
3a420890175 Rewing Starter Ass'y. Includes 3a to 12Rewing Starter Ass'y. Includes 3a to 12
-
4420939115 Rewind SpringRewind Spring
-
5420852480 Rope SheaveRope Sheave
-
6412500200 Starter Rope, MeterStarter Rope, Meter
-
7420852070 Key ClampKey Clamp
-
8420852296 PawlPawl
-
9420852308 Pawl LockPawl Lock
-
10420847926 Stage SleeveStage Sleeve
-
11420250400 O-RingO-Ring
-
12420852520 Lock RingLock Ring
-
13420845560 Locking ElementLocking Element
-
14420940431 ScrewScrew
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
AA420899763 Molykote PG 54, 10 gMolykote PG 54, 10 g
