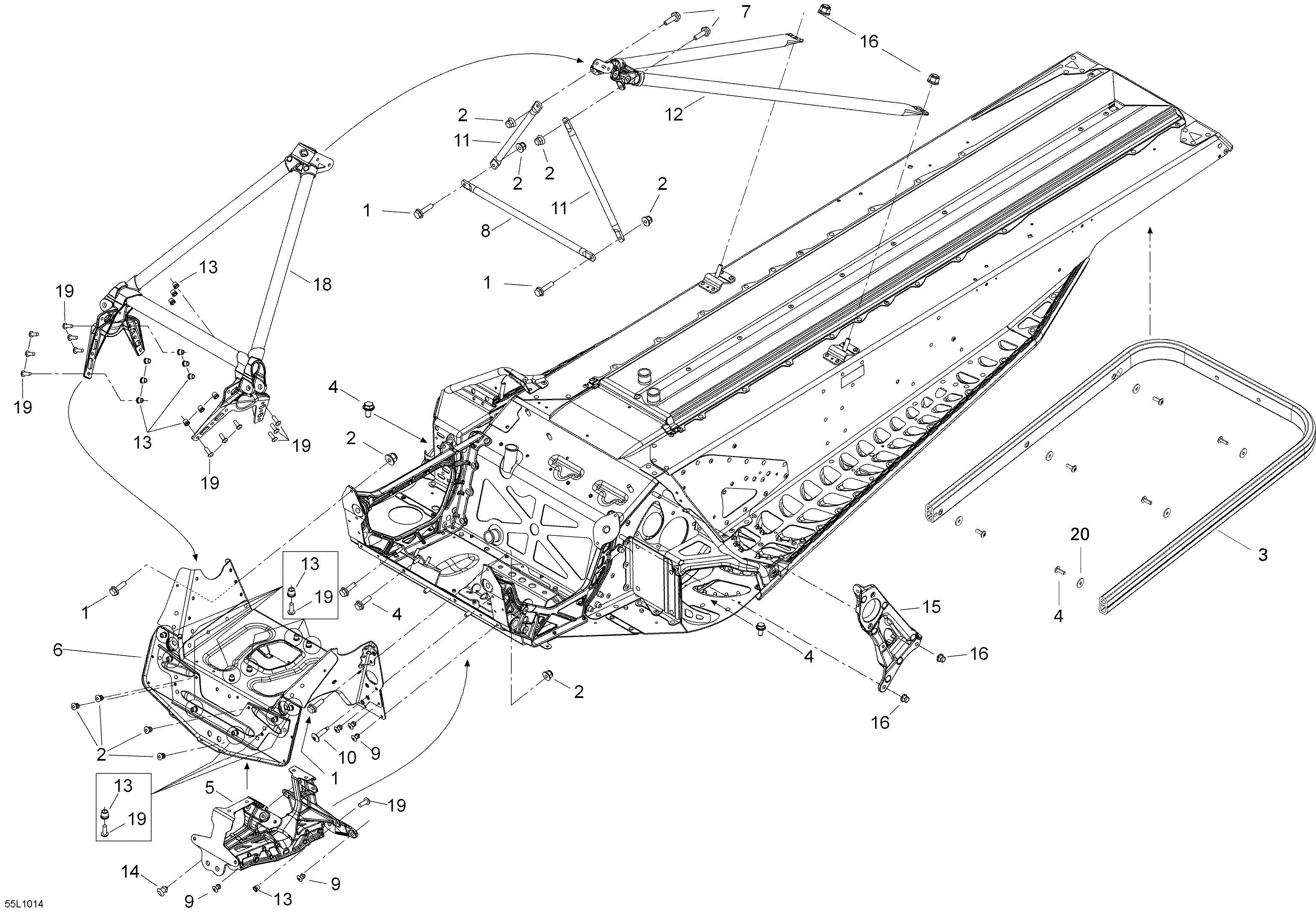

09- Frame and components для BRP Lynx Xtrim 550 - 2010
-
№АртикулНазвание
-
1207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3518325578 Rear Bumper, 146''Rear Bumper, 146''
-
4250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
5518325925 Front Suspension SupportFront Suspension Support
-
6518325567 S-ModuleS-Module
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8518325115 Center Column SupportCenter Column Support
-
9293150144 Stavex RivetStavex Rivet
-
10210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
11518325114 Upper Column SupportUpper Column Support
-
12518325700 Rear MemberRear Member
-
14293150147 Hemlock RivetHemlock Rivet
-
15518326369 Driven Pulley SupportDriven Pulley Support
-
16233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
17205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
18518325554 Front MemberFront Member
-
20224061201 Flat WasherFlat Washer
