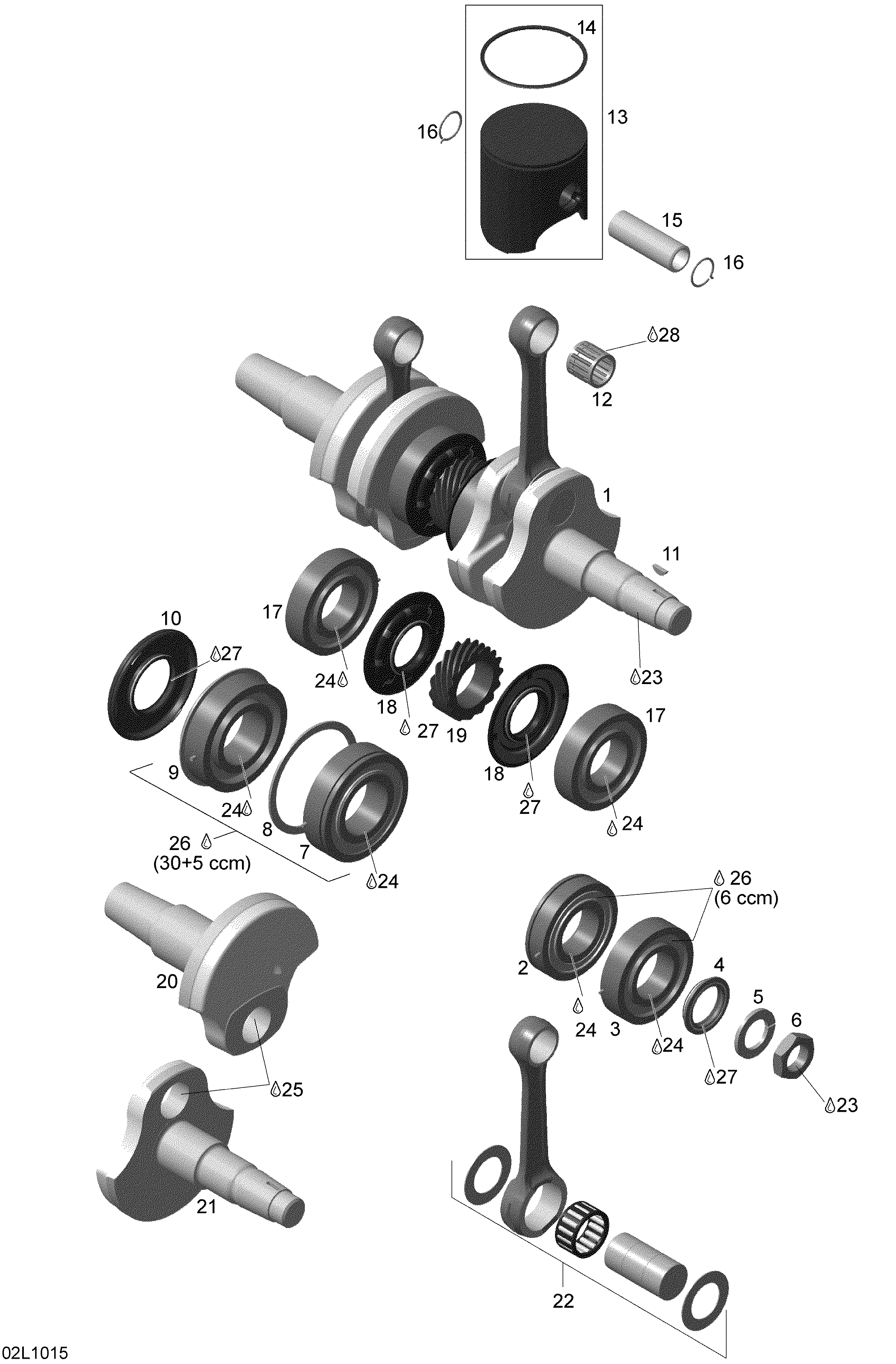

01- Crankshaft для BRP Lynx Xtrim Commander Limited 600 SDI - 2010
![](/wa-data/public/shop/sheme/bombardier/lynx/77cbd4bb-8808-41ca-a3fe-b84d22beb5cb.png)
-
№АртикулНазвание
-
1420890954 Crankshaft Ass'y. Includes 1 to 10Crankshaft Ass'y. Includes 1 to 10
-
2420832633 Ball BearingBall Bearing
-
3420832575 Ball BearingBall Bearing
-
4420931793 Oil SealOil Seal
-
5420945759 Lock Washer, 22 mmLock Washer, 22 mm
-
6420842234 Hex. Nut M22Hex. Nut M22
-
7420832602 Ball BearingBall Bearing
-
8420926190 WasherWasher
-
9420832700 Ball BearingBall Bearing
-
10420931284 Oil SealOil Seal
-
11420246015 Woodruff KeyWoodruff Key
-
12420832445 Needle BearingNeedle Bearing
-
13420892386 Piston Ass'y With Rings, 71.89 mm. Includes 13 to 14Piston Ass'y With Rings, 71.89 mm. Includes 13 to 14
-
14420815295 Semi-Trapez RingSemi-Trapez Ring
-
15420916412 Piston PinPiston Pin
-
16420845106 Piston CirclipPiston Circlip
-
17420832575 Ball BearingBall Bearing
-
18420931455 Oil SealOil Seal
-
19420834355 Central GearCentral Gear
-
20420818709 Crankshaft PTOCrankshaft PTO
-
21420819232 Crankshaft MAGCrankshaft MAG
-
22420684653 Rod Repair Kit, MAG SideRod Repair Kit, MAG Side
-
22420684654 Rod Repair Kit, PTO SideRod Repair Kit, PTO Side
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
26293550021 Isoflex Grease, TOPAS NB52, 50 gIsoflex Grease, TOPAS NB52, 50 g
-
27420899271 Petamo Grease, GHY133N, 400 gPetamo Grease, GHY133N, 400 g
-
28619590103 Injection oil (12 x 1 Liter)Injection oil (12 x 1 Liter)
