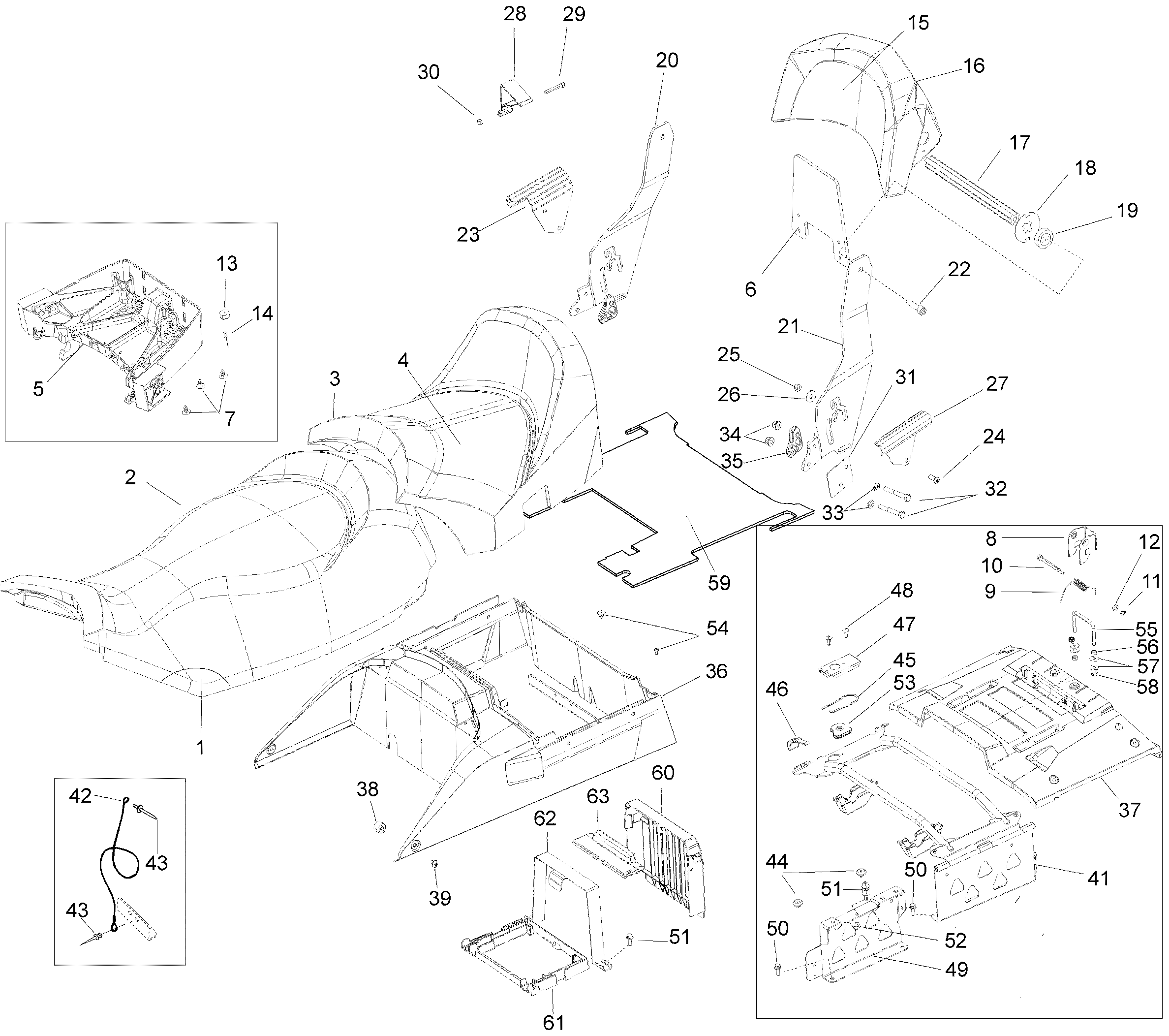

09- Seat для BRP Lynx Xtrim Commander Limited 600 SDI - 2010
-
№АртикулНазвание
-
1510005316 Seat Foam (GRAND)Seat Foam (GRAND)
-
2510005257 Cover, frontCover, front
-
3510005256 Cover rearCover rear
-
4510004871 Foam SeatFoam Seat
-
5510004816 Seat BaseSeat Base
-
6510005330 Backrest PlateBackrest Plate
-
7414644300 DartDart
-
8708000144 Latch, BlackLatch, Black
-
9708000369 SpringSpring
-
10207068044 Screw Hex. M6 X 80Screw Hex. M6 X 80
-
11732610072 Push NutPush Nut
-
12234061410 Flat Washer 6 mmFlat Washer 6 mm
-
13510004999 CoverCover
-
14293150015 Pop Rivet 1/8”Pop Rivet 1/8”
-
15510004985 Foam BackrestFoam Backrest
-
16510005259 Backrest Cover XU GRANDBackrest Cover XU GRAND
-
17510005311 Axle, backrestAxle, backrest
-
18510005312 Limiter PlateLimiter Plate
-
19510004378 Rubber ShimRubber Shim
-
20510004988 RH ArmRH Arm
-
21510004989 LH ArmLH Arm
-
22250000491 Socket head screw M10 X 25Socket head screw M10 X 25
-
23510005215 R.H. handleR.H. handle
-
24205982086 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
25232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
26234082410 Flat Washer 8 mmFlat Washer 8 mm
-
27510005213 L.H. handleL.H. handle
-
28510005139 Security LockSecurity Lock
-
29205064044 Socket Screw HD.DIN.912Socket Screw HD.DIN.912
-
3033010 Elastic flanged nut M6Elastic flanged nut M6
-
31510004995 Cover PlateCover Plate
-
32207086044 Hex. Screw M8 X 60Hex. Screw M8 X 60
-
33234081410 Flat Washer 8 mmFlat Washer 8 mm
-
34233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
35510005151 AdapterAdapter
-
36510004874 Storage Box XUStorage Box XU
-
37510004875 Storage Box Cover XUStorage Box Cover XU
-
38510005147 BushingBushing
-
39250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
40510004951 Fastening Tube PaintFastening Tube Paint
-
41510005156 Cable Support PlateCable Support Plate
-
42546777 Retainer cableRetainer cable
-
43390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
44605452114 PlugPlug
-
45269700017 Latch SpringLatch Spring
-
46510005072 PullerPuller
-
47510005112 Lock Pin CoverLock Pin Cover
-
48732600030 ScrewScrew
-
49510004998 Locking Plate (Frame)Locking Plate (Frame)
-
50207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
51605452035 Lock PinLock Pin
-
52233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
53510005044 Lock Pin GuideLock Pin Guide
-
54293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
55510004876 Fastener PinFastener Pin
-
56250000135 Hex. Nut M6Hex. Nut M6
-
5720117 WasherWasher
-
5833010 NutNut
-
59510005043 FoamFoam
-
60510005079 Battery CoverBattery Cover
-
61515176804 Battery SupportBattery Support
-
62510005143 Battery StrapBattery Strap
-
63510005146 Strap CoverStrap Cover
