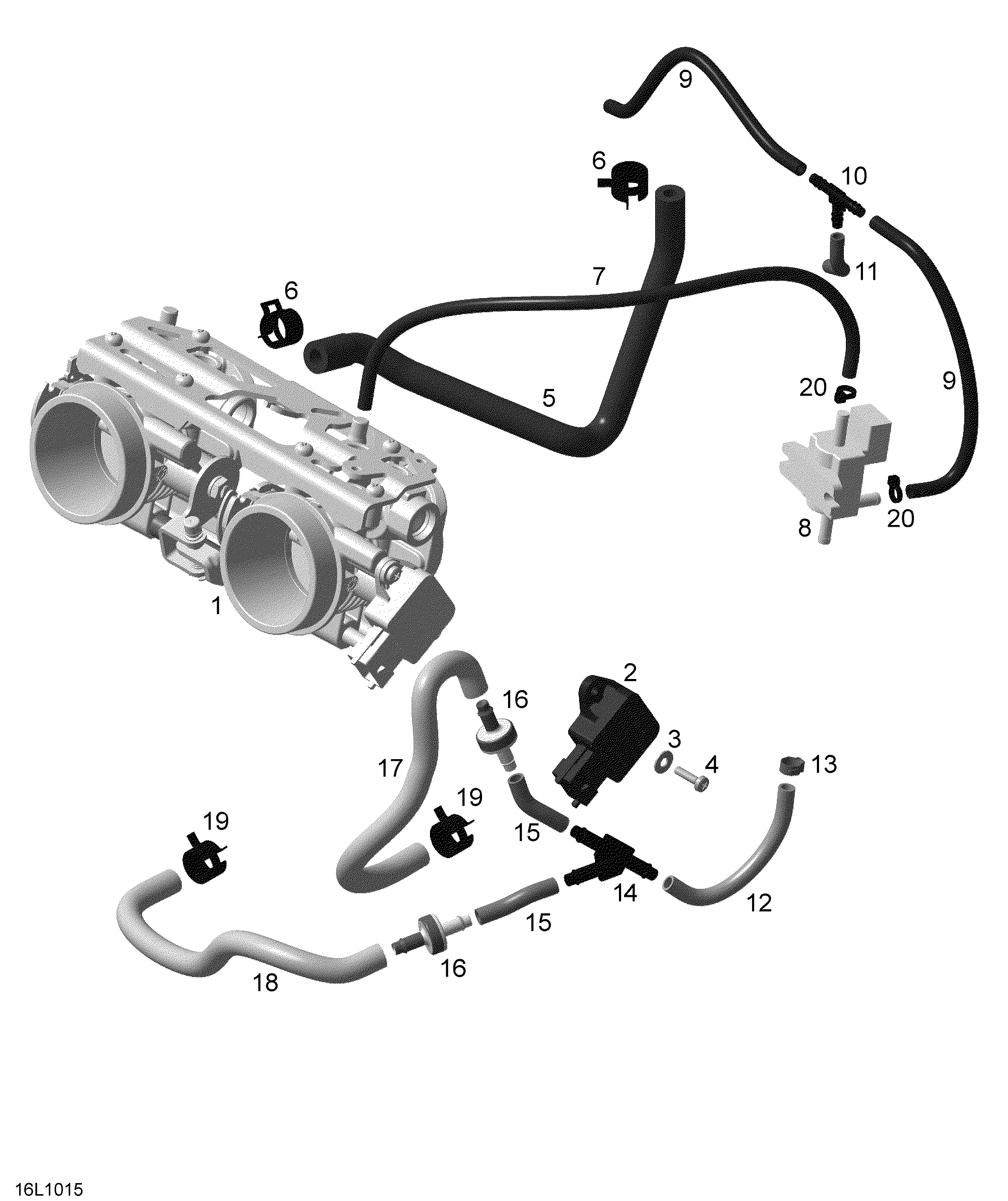

02- Throttlebody для BRP Lynx Xtrim Commander Limited 600 SDI - 2010
-
№АртикулНазвание
-
1420892132 Throttle BodyThrottle Body
-
2270000251 Position SensorPosition Sensor
-
3234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
4208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
5420460860 HoseHose
-
6420853511 ClampClamp
-
7420660577 High Pressure Air Hose, 380 mmHigh Pressure Air Hose, 380 mm
-
8270600005 Solenoid ValveSolenoid Valve
-
9420660571 High Pressure Air Hose, 180 mmHigh Pressure Air Hose, 180 mm
-
10293710068 T-FittingT-Fitting
-
11420660572 High Pressure Air Hose, 50 mmHigh Pressure Air Hose, 50 mm
-
12420460852 High Pressure Air Hose, 80 mmHigh Pressure Air Hose, 80 mm
-
13420853658 Gear ClampGear Clamp
-
14293710059 Y-FittingY-Fitting
-
15420460851 High Pressure Air Hose, 40 mmHigh Pressure Air Hose, 40 mm
-
16420660543 Check ValveCheck Valve
-
17420460782 Molded HoseMolded Hose
-
18420460786 Molded HoseMolded Hose
-
19420853511 ClampClamp
-
20293750001 Tie-Rap 94 mmTie-Rap 94 mm
