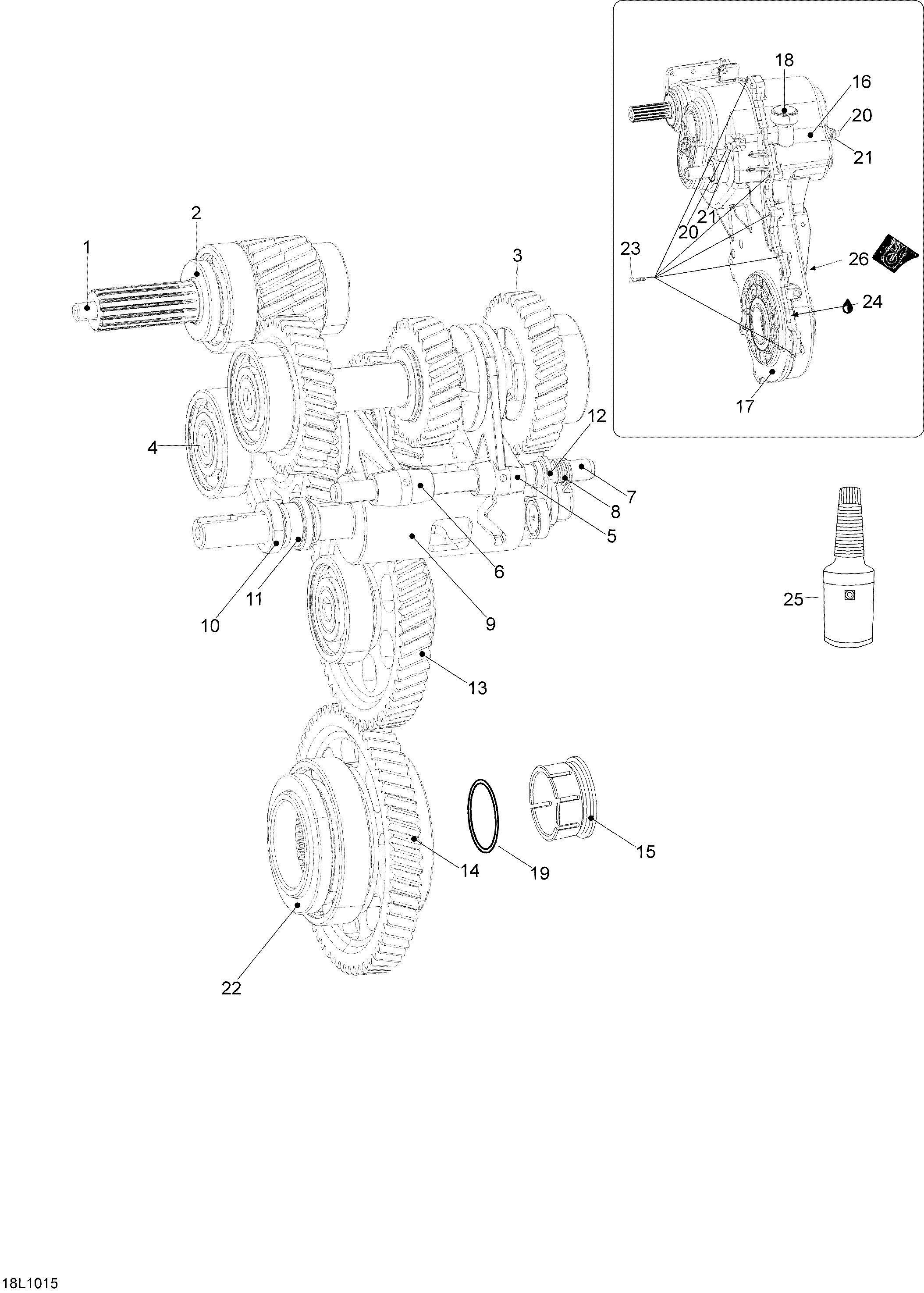

05- Transmission для BRP Lynx Xtrim Commander Limited 600 SDI - 2010
-
№АртикулНазвание
-
-504153005 Transmission H 2F+N+R MY10Transmission H 2F+N+R MY10
-
1619230009 Countershaft Ass'yCountershaft Ass'y
-
2619230010 Oil sealOil seal
-
3619230012 Main shaftMain shaft
-
4619230013 Reverse shaftReverse shaft
-
5619230014 Fork, forwardsFork, forwards
-
6619230015 Fork, reverseFork, reverse
-
7619230016 ShaftShaft
-
8619230017 SpringSpring
-
9619230018 Shifting drumShifting drum
-
10619230019 Oil sealOil seal
-
11619230020 BushingBushing
-
12619230021 Locking leverLocking lever
-
13619230022 Middle gearMiddle gear
-
14619230023 Lower gearLower gear
-
15504152821 Magnetic CapMagnetic Cap
-
16619230025 Cover, outsideCover, outside
-
17619230026 Cover, insideCover, inside
-
18619230027 Plug, oilPlug, oil
-
19619230028 O-RingO-Ring
-
20619230029 ScrewScrew
-
21619230030 WasherWasher
-
22619230031 Oil sealOil seal
-
23619230033 Screw M6 x 20Screw M6 x 20
-
24420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
25619590182 OIL-GEAR SYNTHETIC (12 x 1l)OIL-GEAR SYNTHETIC (12 x 1l)
-
26516003925 Checking Label, TransmissionChecking Label, Transmission
