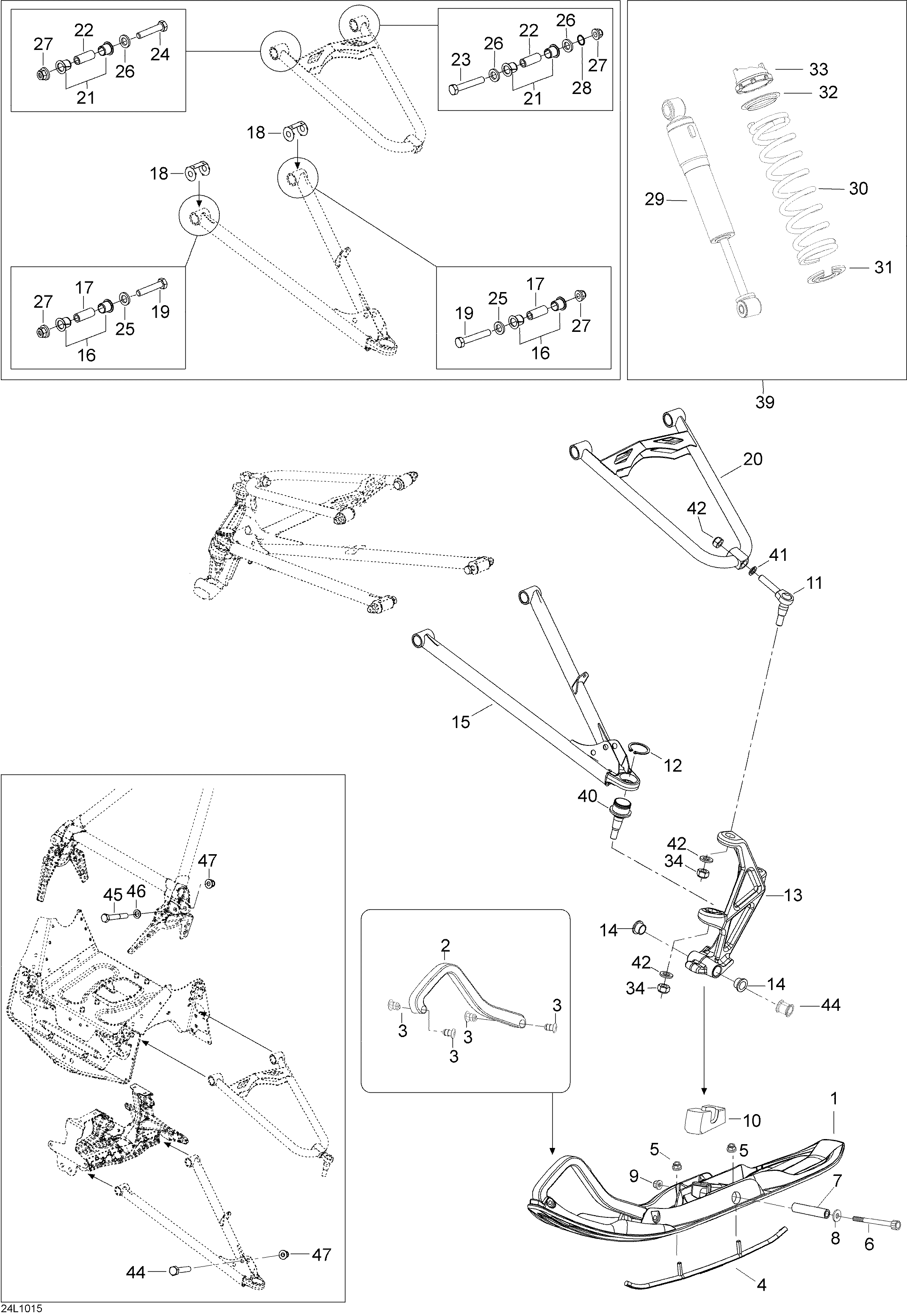

07- Front Suspension And Ski для BRP Lynx Xtrim Commander Limited 600 SDI - 2010
-
№АртикулНазвание
-
1505072673 Plastic SkiPlastic Ski
-
2505071556 Handle, Full MoonHandle, Full Moon
-
3505071812 RetainerRetainer
-
4605352643 Carbide KitCarbide Kit
-
533074 Elastic flanged nut M10Elastic flanged nut M10
-
6230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
7506133300 SpacerSpacer
-
8732900049 WasherWasher
-
933012 Elastic stop nut M10Elastic stop nut M10
-
10505072561 Rubber DamperRubber Damper
-
11505072257 Upper Ball JointUpper Ball Joint
-
12293370035 CirclipCirclip
-
13505072721 LH Ski LegLH Ski Leg
-
13505072722 RH Ski LegRH Ski Leg
-
14505072690 Leg CushionLeg Cushion
-
15505072640 RH Lower ArmRH Lower Arm
-
15505072641 LH Lower ArmLH Lower Arm
-
16505072208 BushingBushing
-
17505072393 BushingBushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
20505072390 Upper ArmUpper Arm
-
21505072250 BushingBushing
-
22505072143 BushingBushing
-
23250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
24250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
28505072448 O-RingO-Ring
-
29505072825 ShockShock
-
30505072882 Spring 300mm-16N/MMSpring 300mm-16N/MM
-
31230076 Spring SeatSpring Seat
-
32503191872 Spring GuideSpring Guide
-
33505070150 Adjustment CamAdjustment Cam
-
34250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
35207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
36207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
37503189564 WasherWasher
-
38233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
40505072682 Lower Ball JointLower Ball Joint
-
41503189276 WasherWasher
-
42250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
43234021410 Flat Washer 12 mmFlat Washer 12 mm
-
44505071999 SpacerSpacer
