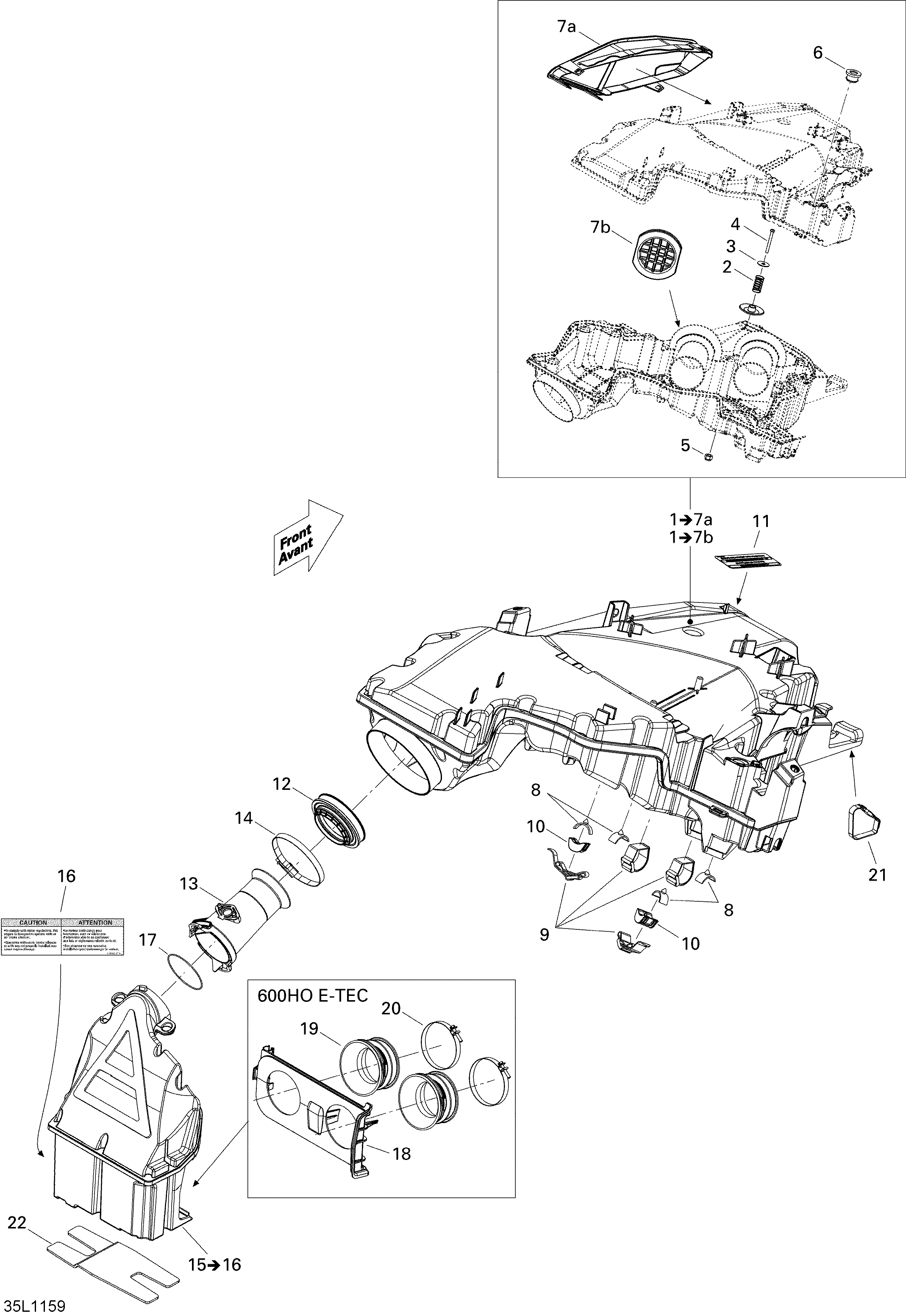

02- Air Intake System для BRP Lynx Rave SC 600 E-TEC - 2011
-
№АртикулНазвание
-
1508000625 Secondary Chamber Ass'y. Includes 1 to 7b, 600HO ETECSecondary Chamber Ass'y. Includes 1 to 7b, 600HO ETEC
-
2508000576 SpringSpring
-
3224060201 Flat WasherFlat Washer
-
4205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
5232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
6508000574 GrommetGrommet
-
7A508000568 Air FilterAir Filter
-
7b508000590 Cap. 600HO ETECCap. 600HO ETEC
-
8508000537 StopperStopper
-
9508000532 Strip VelcroStrip Velcro
-
10508000572 BumperBumper
-
11516004651 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
12508000567 Intake adaptorIntake adaptor
-
13508000662 FluteFlute
-
14514052924 Norma ClampNorma Clamp
-
15508000660 Primary Chamber Ass'y. Includes 15 to 16, 600HO ETECPrimary Chamber Ass'y. Includes 15 to 16, 600HO ETEC
-
16516003371 Caution Label, Air IntakeCaution Label, Air Intake
-
17293300140 O'RingO'Ring
-
18508000613 Plate Adapter. 600HO ETECPlate Adapter. 600HO ETEC
-
19508000614 Air Intake Adapter. 600HO ETECAir Intake Adapter. 600HO ETEC
-
20508000346 Gemi ClampGemi Clamp
-
21508000599 Velcro StripVelcro Strip
-
22508000674 Insulated FoamInsulated Foam
