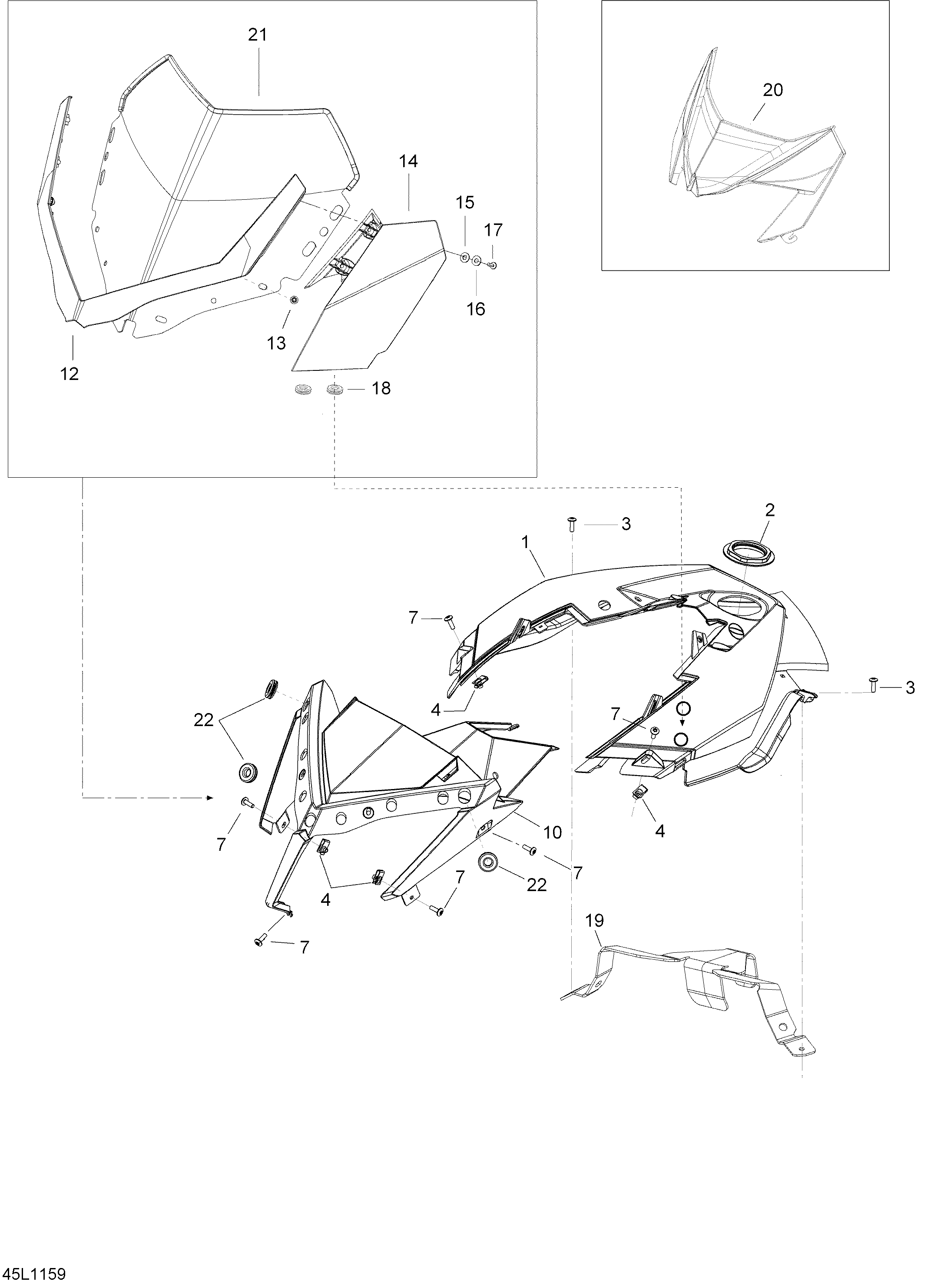

09- Windshield And Console для BRP Lynx Rave SC 600 E-TEC - 2011
-
№АртикулНазвание
-
1517304645 Console WhiteConsole White
-
2517302575 Console NutConsole Nut
-
3293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
4250100113 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
7250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
10517304575 Indicator SupportIndicator Support
-
12860200091 Windshield Support Assy incl 12-13Windshield Support Assy incl 12-13
-
12860200089 Windshield SupportWindshield Support
-
13732610072 Push NutPush Nut
-
14619560022 Wind deflector Kit RE-X incl. 14-18Wind deflector Kit RE-X incl. 14-18
-
14517303604 DEFLECTOR-AIR RHDEFLECTOR-AIR RH
-
14517303605 DEFLECTOR-AIR LHDEFLECTOR-AIR LH
-
15250200024 Rubber washerRubber washer
-
16250200025 Washer 5mmWasher 5mm
-
17250000146 TORX-SCREW TRUSS HEAD PT.K50X16TORX-SCREW TRUSS HEAD PT.K50X16
-
18517303756 GrommetGrommet
-
19517304230 Support plate for consoleSupport plate for console
-
20517304648 Headlamp coverHeadlamp cover
-
21517303608 WindshieldWindshield
-
22517303756 GrommetGrommet
