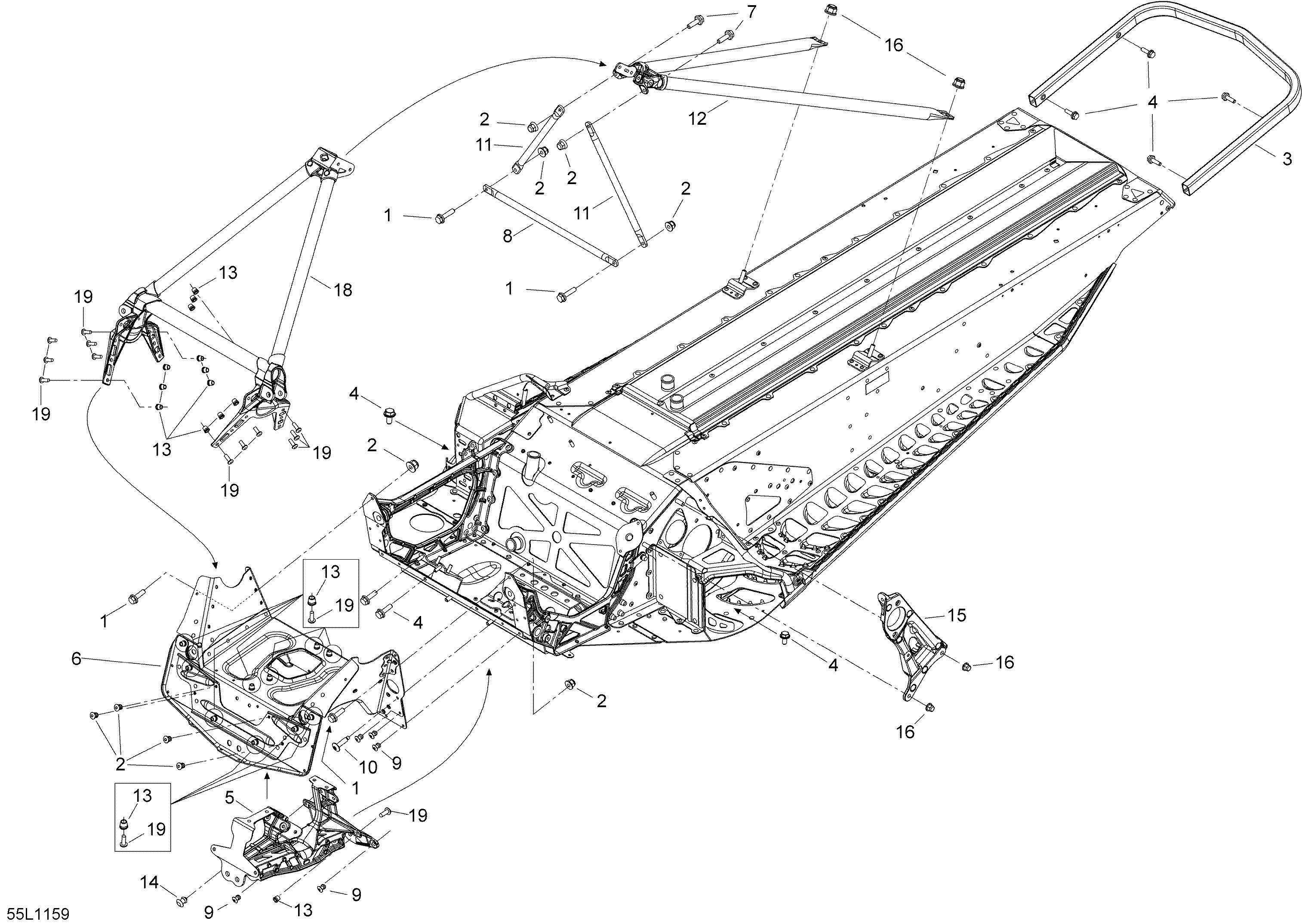

09- Frame and components для BRP Lynx Rave SC 600 E-TEC - 2011
-
№АртикулНазвание
-
1207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
2233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3518324980 Rear BumperRear Bumper
-
4207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
5518325925 SupportSupport
-
6518326762 Cross member (S-module)Cross member (S-module)
-
7207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
8518325115 Center Column SupportCenter Column Support
-
9293150144 Stavex RivetStavex Rivet
-
10210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
11518325114 Upper Column SupportUpper Column Support
-
12518326685 Rear MemberRear Member
-
14293150147 Hemlock RivetHemlock Rivet
-
15518326192 Driven Pulley SupportDriven Pulley Support
-
16233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
18518326555 Front MemberFront Member
