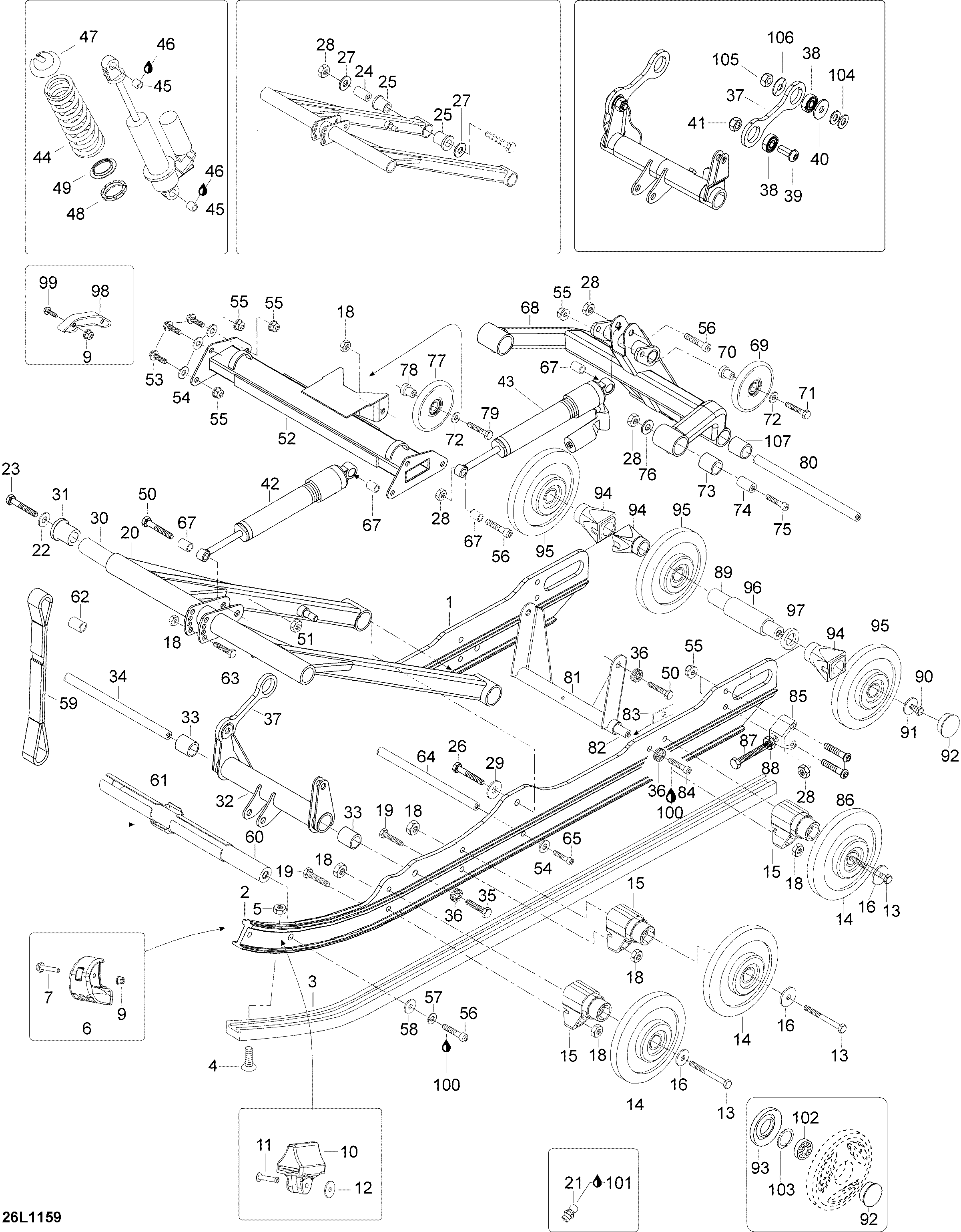

08- Rear Suspension для BRP Lynx Rave SC 600 E-TEC - 2011
-
№АртикулНазвание
-
1503191978 R.H. RunnerR.H. Runner
-
2503191978 L.H. RunnerL.H. Runner
-
3503192193 ShoeShoe
-
440845 Socket head screw M6 x 25Socket head screw M6 x 25
-
533010 Elastic stop nut M6Elastic stop nut M6
-
6503192299 Runner protectorRunner protector
-
7207652544 Hex. screwHex. screw
-
9233251434 Elastic flanged nut M5Elastic flanged nut M5
-
10503192106 Rubber stopperRubber stopper
-
11293150142 Pop rivetPop rivet
-
12503191273 WasherWasher
-
13207667044 Hex. screw M6 x 70Hex. screw M6 x 70
-
14503192441 Idler wheel, 141Idler wheel, 141
-
15503192793 SupportSupport
-
16503191820 Cup washerCup washer
-
18233261414 Nut flange elastic M6Nut flange elastic M6
-
19207662544 Screw-hex flangeScrew-hex flange
-
20503191989 Front armFront arm
-
21408200700 Grease nippleGrease nipple
-
22250200005 WasherWasher
-
23207026044 Hex. screw M12 x 60Hex. screw M12 x 60
-
24605354157 ShaftShaft
-
2531065 BushingBushing
-
2640021 Hex. screw M10 x 70Hex. screw M10 x 70
-
27605355801 WasherWasher
-
2833012 Elastic stop nut M10Elastic stop nut M10
-
29503183300 Lock washerLock washer
-
30503192046 ShaftShaft
-
3131024 CushionCushion
-
32605355772 SwingSwing
-
3331024 CushionCushion
-
34605355800 ShaftShaft
-
35205005547 Screw M10 x 55Screw M10 x 55
-
3620068 Lock washer D10 (Nordlock)Lock washer D10 (Nordlock)
-
37605254159 Link plateLink plate
-
38605631003 Ball bearingBall bearing
-
39205402546 Socket head screw M10 x 25Socket head screw M10 x 25
-
40234002600 Washer M10Washer M10
-
41232500416 Elastic stop nut M10Elastic stop nut M10
-
42619330004 Shock, front arm (cal.503191863)Shock, front arm (cal.503191863)
-
43619330015 Shock, rear arm (cal.503192383)Shock, rear arm (cal.503192383)
-
44503192356 Spring, rear arm 280-65 Nm.Spring, rear arm 280-65 Nm.
-
44605625010 Spring, front arm 239-60 Nm.Spring, front arm 239-60 Nm.
-
4531094 CushionCushion
-
4632161 Loctite 641, 50mlLoctite 641, 50ml
-
47605354631 Spring lock 46mm.Spring lock 46mm.
-
47230076 Spring lock 36mm.Spring lock 36mm.
-
49230049 Spring guide 46mm.Spring guide 46mm.
-
5040016 Hex. screw M10 x 45Hex. screw M10 x 45
-
5133012 Elastic stop nut M10Elastic stop nut M10
-
52503192100 Middle beamMiddle beam
-
5340037 Screw M8 x 25Screw M8 x 25
-
54234081410 Washer A8,4Washer A8,4
-
55233281414 Elastic flanged nut M8Elastic flanged nut M8
-
56205005044 Socket head screw M10 x 50Socket head screw M10 x 50
-
57233281414 Elastic stop nut M10Elastic stop nut M10
-
5820005 Washer, hardened M10Washer, hardened M10
-
59605355116 Stopper strapStopper strap
-
60605353958 ShaftShaft
-
61605355096 LimiterLimiter
-
62605455335 SleeveSleeve
-
63207084544 Screw hex M8 x 45Screw hex M8 x 45
-
645343471 ShaftShaft
-
65205005044 Socket head screw M10 x 50Socket head screw M10 x 50
-
675446652 SleeveSleeve
-
68503193081 Rear armRear arm
-
69503192675 Idler wheel 133/blackIdler wheel 133/black
-
70605454461 SleeveSleeve
-
7140008 Screw M8 x 45Screw M8 x 45
-
7220077 Washer A8,4Washer A8,4
-
7331065 CushionCushion
-
74503191927 ShaftShaft
-
75205027544 Socket head screw M12 x 75Socket head screw M12 x 75
-
7620040 Washer A12Washer A12
-
77572043500 Support wheelSupport wheel
-
78605454167 SleeveSleeve
-
79207083544 Screw M8 x 35Screw M8 x 35
-
80605355118 ShaftShaft
-
81605353953 SwingSwing
-
82605355119 ShaftShaft
-
83503192045 Support plateSupport plate
-
84205005547 Socket head screw M10 x 55, 12.9Socket head screw M10 x 55, 12.9
-
855341633 TensionerTensioner
-
86205484546 Socket head screw M8 x 45Socket head screw M8 x 45
-
87230100044 Hex. screw M10 x 100Hex. screw M10 x 100
-
88232006414 Nut M10Nut M10
-
89503190429 ShaftShaft
-
9040050 Hex. screw M10 x 35Hex. screw M10 x 35
-
91503190439 WasherWasher
-
92570063600 CapCap
-
93503190434 Labyrint sleeveLabyrint sleeve
-
94503190428 SpacerSpacer
-
95503192677 Idler wheel 165, redIdler wheel 165, red
-
96503190430 SpacerSpacer
-
97503190432 WasherWasher
-
98503192731 Sliding padSliding pad
-
99207764044 Locking screw M6 x 40Locking screw M6 x 40
-
100293800005 Loctite 271, 10mlLoctite 271, 10ml
-
101293550033 Synthetic grease, 400Synthetic grease, 400
-
102503190396 Ball bearingBall bearing
-
103415129371 Retaining ringRetaining ring
-
104234001410 Washer M10Washer M10
-
10625004 Spring cupSpring cup
-
10731024 CushionCushion
