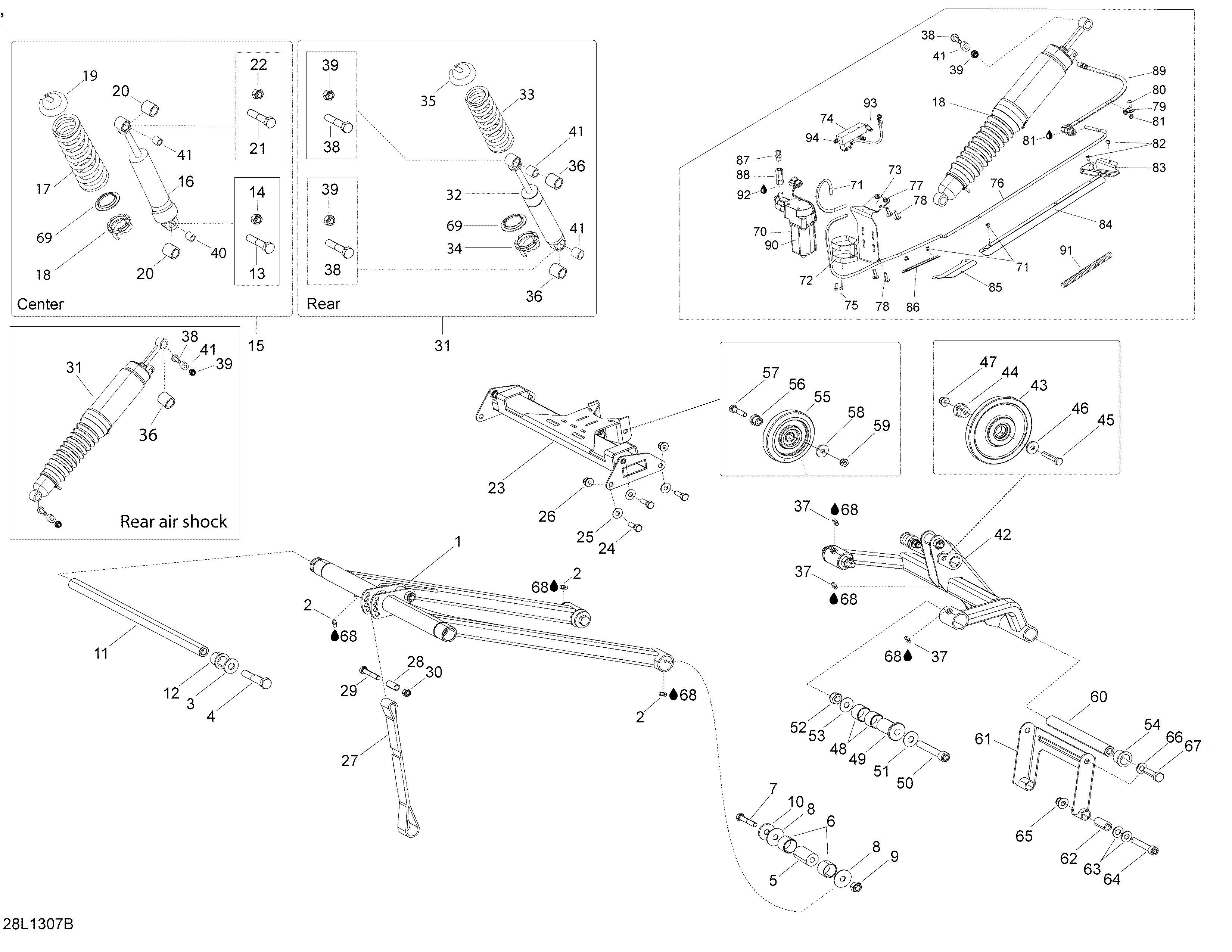

08- Rear Suspension для BRP Lynx Adventure GT 1200 4-TEC - 2013
-
№АртикулНазвание
-
1503193092 Front ArmFront Arm
-
2408200700 Grease FittingGrease Fitting
-
3250200005 Washer Spring Conical M12Washer Spring Conical M12
-
440243 Screw Hex M12 X 60Screw Hex M12 X 60
-
5605354157 ShaftShaft
-
631065 BushingBushing
-
740021 Screw Hex M10 x 70Screw Hex M10 x 70
-
8605355801 WasherWasher
-
9232500416 Nut Stop Elastic M10Nut Stop Elastic M10
-
10503183300 WasherWasher
-
115347719 Upper ShaftUpper Shaft
-
1231024 CushionCushion
-
13250000549 Screw Hex M10 X 45Screw Hex M10 X 45
-
14232500416 Nut Stop Elastic M10Nut Stop Elastic M10
-
16503192399 ShockShock
-
16503193282 Shock. ACS ModelsShock. ACS Models
-
17503192788 SpringSpring
-
17503191848 Spring. CE ModelsSpring. CE Models
-
17503193279 Spring. ACS ModelsSpring. ACS Models
-
18230078 Spring SeatSpring Seat
-
19230076 Spring SeatSpring Seat
-
2031094 Glide BearingGlide Bearing
-
2140016 Screw Hex M10 X 45Screw Hex M10 X 45
-
22232500416 Nut Stop Elastic M10Nut Stop Elastic M10
-
23503192344 Middle BeamMiddle Beam
-
23503192971 Middle beam (ACS). ACS ModelsMiddle beam (ACS). ACS Models
-
24207182544 Screw Hex M8 X 25Screw Hex M8 X 25
-
25605620002 WasherWasher
-
26233281414 Nut Flange Elastic M8Nut Flange Elastic M8
-
27605355116 Limiter strapLimiter strap
-
27503192926 Limiter strap (ACS). ACS ModelsLimiter strap (ACS). ACS Models
-
28605455335 SleeveSleeve
-
29207084544 Screw Hex M8 X 45Screw Hex M8 X 45
-
30232581414 Nut Stop Elastic M8Nut Stop Elastic M8
-
32503192403 ShockShock
-
32503193255 Shock. CE ModelsShock. CE Models
-
32503193255 Shock. ACS ModelsShock. ACS Models
-
32503193054 Shock air. ACS ModelsShock air. ACS Models
-
33503192428 SpringSpring
-
33503193280 Spring. CE ModelsSpring. CE Models
-
33503193280 Spring. ACS ModelsSpring. ACS Models
-
34230078 Spring SeatSpring Seat
-
35230076 Spring SeatSpring Seat
-
3631094 Glide BearingGlide Bearing
-
37408200700 Grease FittingGrease Fitting
-
3840134 Screw Socket M10 X 45Screw Socket M10 X 45
-
39232500416 Nut Stop Elastic M10Nut Stop Elastic M10
-
405446652 BushingBushing
-
415446652 BushingBushing
-
42503193079 Rear Arm WeldRear Arm Weld
-
42503192969 Rear Arm Weld (Douple shock). ACS ModelsRear Arm Weld (Douple shock). ACS Models
-
43503193644 Idler Wheel 133mmIdler Wheel 133mm
-
44605454461 SleeveSleeve
-
45207084544 Screw hexScrew hex
-
4620077 WasherWasher
-
47233281414 Nut Flange Elastic M8Nut Flange Elastic M8
-
4831065 BushingBushing
-
49605354157 ShaftShaft
-
50205006544 Screw Socket M10 X 65Screw Socket M10 X 65
-
51503189564 WasherWasher
-
52232500416 Nut Stop Elastic M10Nut Stop Elastic M10
-
53605355801 WasherWasher
-
5431024 CushionCushion
-
55572043500 Wheel IdlerWheel Idler
-
56503193330 SleeveSleeve
-
57207083544 Screw Hex M8 X 35Screw Hex M8 X 35
-
5820077 WasherWasher
-
59232581414 Nut Stop Elastic M8Nut Stop Elastic M8
-
60503192397 ShaftShaft
-
61503192346 Rear SwingRear Swing
-
62503192341 Rear Swing ShaftRear Swing Shaft
-
63234001410 Washer Flat M10Washer Flat M10
-
64205006044 Screw Socket M10 X 60Screw Socket M10 X 60
-
65233201414 Nut Flange ElasticNut Flange Elastic
-
66234001410 Washer Flat M10Washer Flat M10
-
67207204044 Screw Hex M10 X 45Screw Hex M10 X 45
-
68293550033 GreaseGrease
-
69230049 Spring guideSpring guide
-
70503192517 CompressorCompressor
-
71415129507 HoseHose
-
72503193103 Compressor bracketCompressor bracket
-
73503193484 SupportSupport
-
74503193009 Air manifoldAir manifold
-
75205562044 Screw socket M6x20Screw socket M6x20
-
76415129507 TubeTube
-
77605636003 Clinch nut M6 HEXSERTClinch nut M6 HEXSERT
-
78250000128 Torx Truss M/S GM6047M NYLON PATCHTorx Truss M/S GM6047M NYLON PATCH
-
79705600459 ClampClamp
-
80235551494 Screw -Torx BUTTON HEAD M5 X 14Screw -Torx BUTTON HEAD M5 X 14
-
81233251414 Nut Flange Elastic DIN.6926Nut Flange Elastic DIN.6926
-
82293150102 Pop Rivet 3/16Pop Rivet 3/16
-
83503193004 BracketBracket
-
84503193006 Hose ProtectorHose Protector
-
85503193007 Hose ProtectorHose Protector
-
86503193011 Hose ProtectorHose Protector
-
87706000869 ConnectorConnector
-
88706000940 Check ValveCheck Valve
-
89503191933 Hose assyHose assy
-
90706000631 Compressor isolatorCompressor isolator
-
91515175442 Protector tubeProtector tube
-
92293800018 Pipe SealantPipe Sealant
-
93706000872 Connector 90°Connector 90°
-
94706000869 ConnectorConnector
