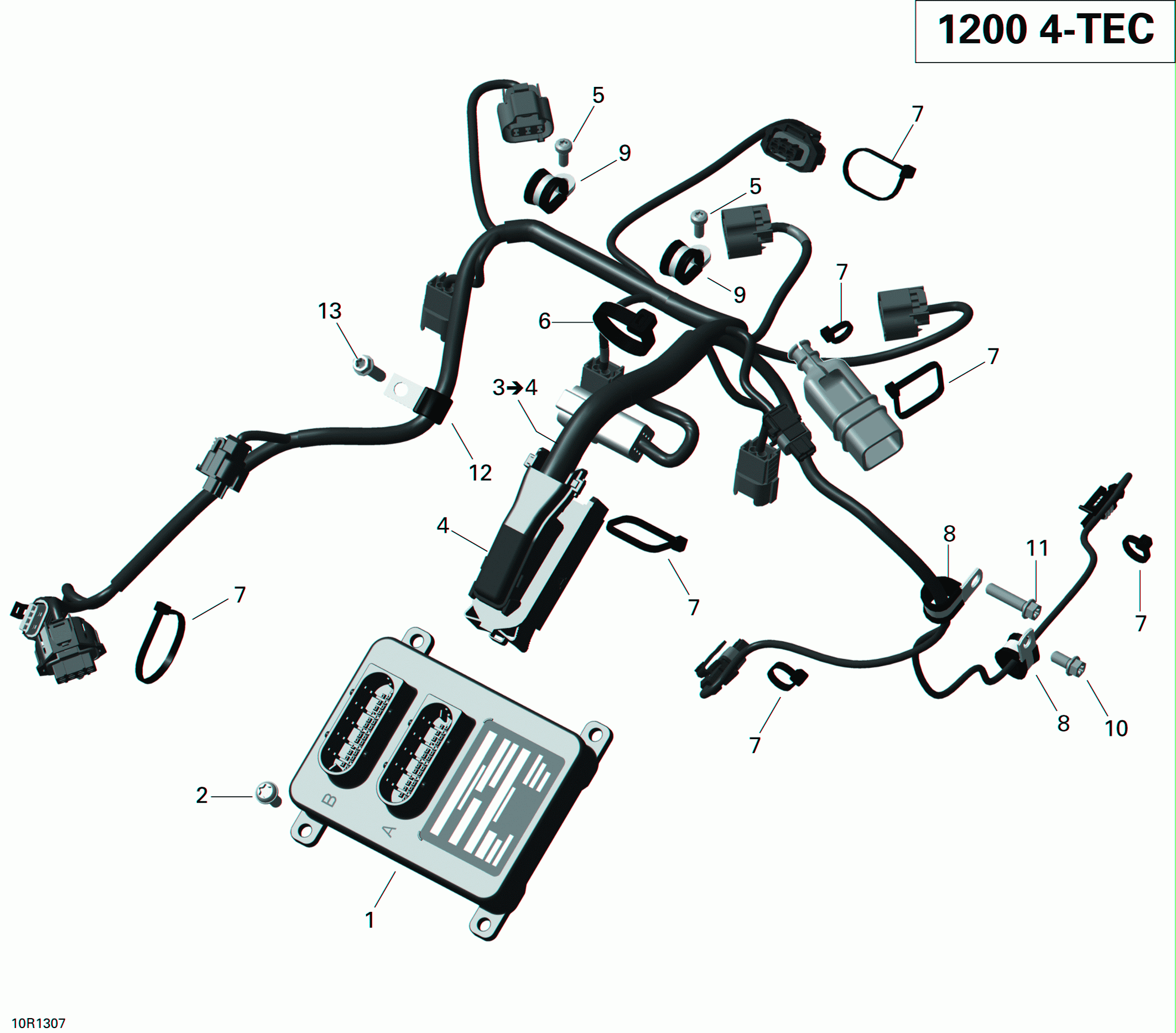

10- Engine Harness And Electric Module для BRP Lynx Adventure GT 1200 4-TEC - 2013
-
№АртикулНазвание
-
1420666128 ECM, Engine Control ModuleECM, Engine Control Module
-
2420641583 Torx Flanged Screw M6Torx Flanged Screw M6
-
3420665637 Engine Wiring Harness Ass'y. Includes 3 to 4Engine Wiring Harness Ass'y. Includes 3 to 4
-
4420664450 ECM Connector housingECM Connector housing
-
5420640081 Torx Screw M5 X 12Torx Screw M5 X 12
-
6420866716 Tie-RapTie-Rap
-
7420866717 Tie RapTie Rap
-
8420851492 Cable Clamp 15/M6Cable Clamp 15/M6
-
9420851108 Cable ClampCable Clamp
-
10420440147 Torx Screw M6 X 12Torx Screw M6 X 12
-
11420440234 Torx Screw M6 X 25Torx Screw M6 X 25
-
12420251812 Cable clamp 9,5/M6Cable clamp 9,5/M6
-
13420440234 Torx Screw M6 X 25Torx Screw M6 X 25
