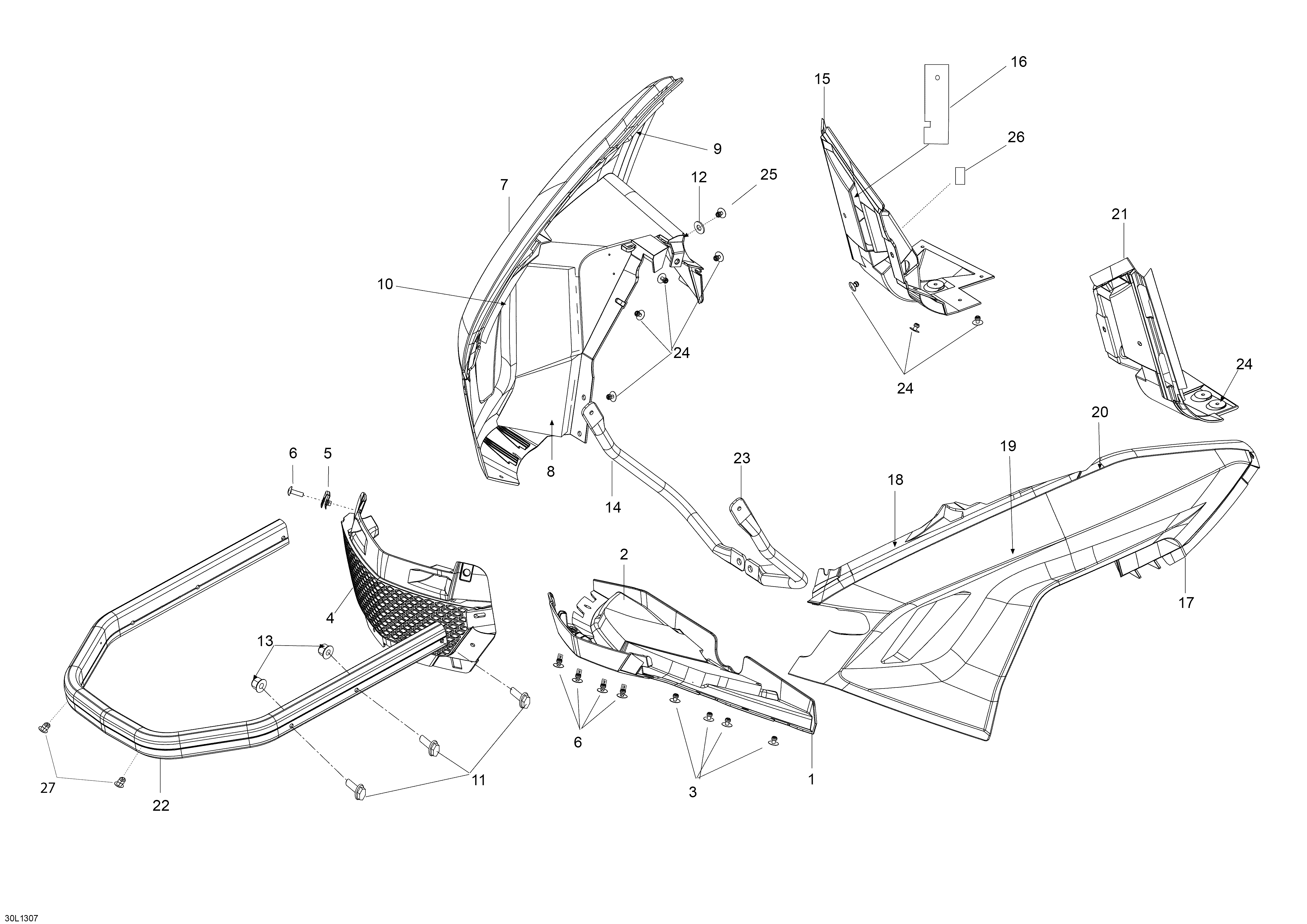

09- Bottom Pan для BRP Lynx Adventure GT 1200 4-TEC - 2013
-
№АртикулНазвание
-
1502007184 Bottom-pan frontBottom-pan front
-
2502007002 IsolationIsolation
-
3293150103 Rivet 3/16Rivet 3/16
-
4502007145 GrillGrill
-
5250100113 Nut U-typeNut U-type
-
6250000128 ScrewScrew
-
7502007188 Bottom-pan R.H. assyBottom-pan R.H. assy
-
7502007180 Bottom-pan R.H. assy (CE). CE ModelsBottom-pan R.H. assy (CE). CE Models
-
8502007006 IsolationIsolation
-
9502007008 IsolationIsolation
-
10502007009 IsolationIsolation
-
11207664044 ScrewScrew
-
12234052490 WasherWasher
-
13233261414 NutNut
-
14502007015 Bumber support R.H.Bumber support R.H.
-
15502007191 Bottom-pan rear, R.H.Bottom-pan rear, R.H.
-
16502007038 Aluminium foilAluminium foil
-
17502007196 Bottom-pan L.H. assyBottom-pan L.H. assy
-
17502007182 Bottom-pan L.H. assy (CE). CE ModelsBottom-pan L.H. assy (CE). CE Models
-
18502007003 IsolationIsolation
-
19502007004 IsolationIsolation
-
20502007005 IsolationIsolation
-
21502007195 Bottom-pan rear, L.H.Bottom-pan rear, L.H.
-
22502007285 Bumber, brownBumber, brown
-
23502007014 Bumber support L.H.Bumber support L.H.
-
24293150104 RivetRivet
-
25390402200 RivetRivet
-
2644110 Aluminum foilAluminum foil
-
27293730041 DartDart
