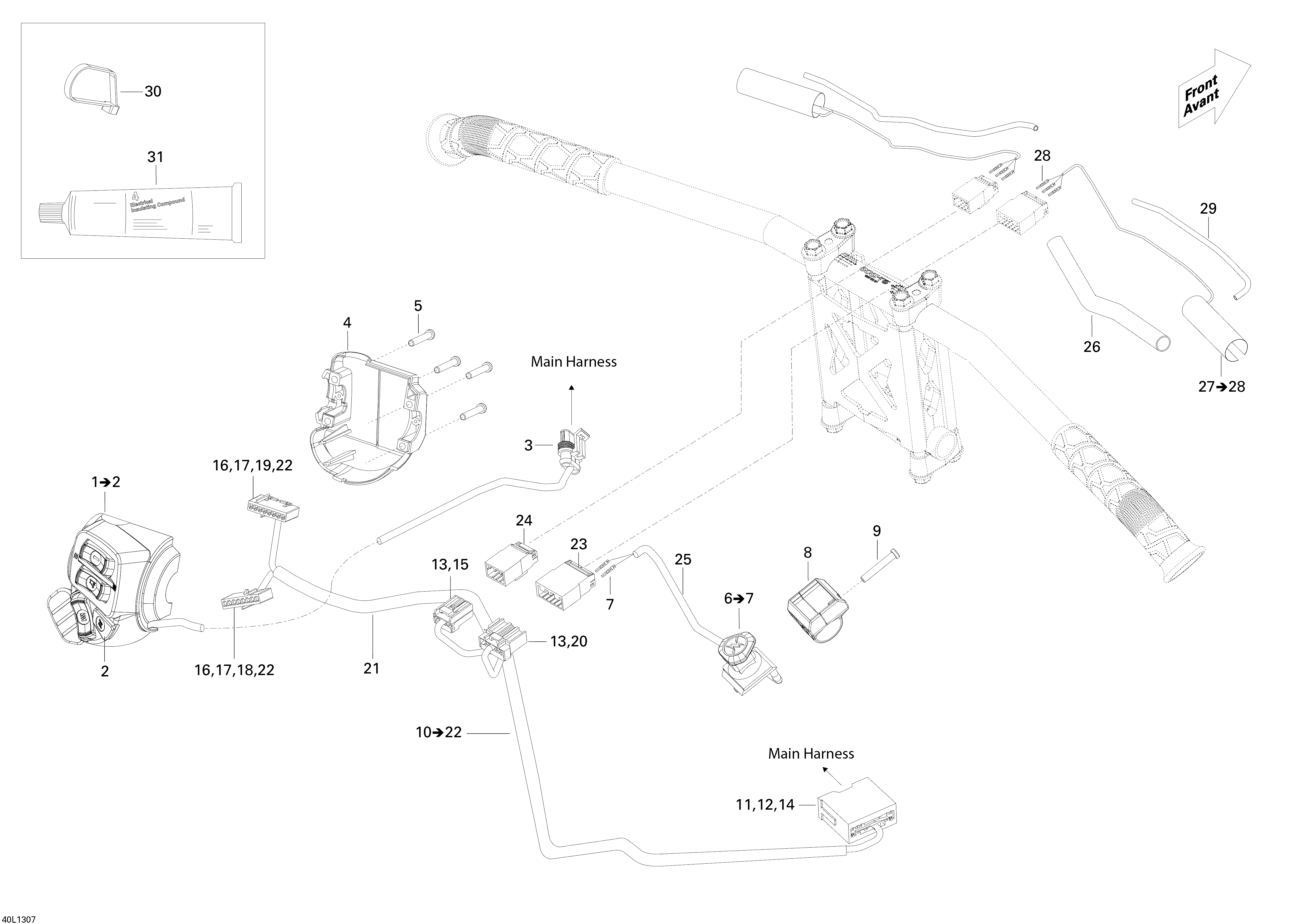

10- Steering Wiring Harness для BRP Lynx Adventure GT 1200 4-TEC - 2013
-
№АртикулНазвание
-
1515177020 LH Switch Housing. Includes 1 to 2LH Switch Housing. Includes 1 to 2
-
2515176088 Start/RER ButtonStart/RER Button
-
3409209600 Female HousingFemale Housing
-
4515175926 Housing Switch PlateHousing Switch Plate
-
5250000263 Torx Screw #8-18Torx Screw #8-18
-
6515177362 Kill Switch. Includes 6 to 7Kill Switch. Includes 6 to 7
-
7515175232 Male TerminalMale Terminal
-
8515176825 Kill Switch SupportKill Switch Support
-
9250000263 Torx Screw #8-18Torx Screw #8-18
-
10515176868 Steering Wiring Harness. Includes 10 to 26Steering Wiring Harness. Includes 10 to 26
-
11515175232 Male TerminalMale Terminal
-
12515175273 Male TerminalMale Terminal
-
13515175231 Female TerminalFemale Terminal
-
14515175351 Male HousingMale Housing
-
16515175808 Female TerminalFemale Terminal
-
17515175809 Female Lock, 8 CircuitsFemale Lock, 8 Circuits
-
18515175807 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
19515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
20515175543 Female HousingFemale Housing
-
21515175830 Low Temperature Tubing 1/2”Low Temperature Tubing 1/2”
-
22515175941 Female TerminalFemale Terminal
-
23515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
24515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
25515175830 Low Temperature Tubing 1/2”Low Temperature Tubing 1/2”
-
26515175830 Low Temperature Tubing 1/2”Low Temperature Tubing 1/2”
-
27506152428 Heating ElementHeating Element
-
28515175232 Male TerminalMale Terminal
-
29515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
30414115200 Tie-Rap 180mmTie-Rap 180mm
-
31619600021 Dielectric Grease, 75 ml.Dielectric Grease, 75 ml.
