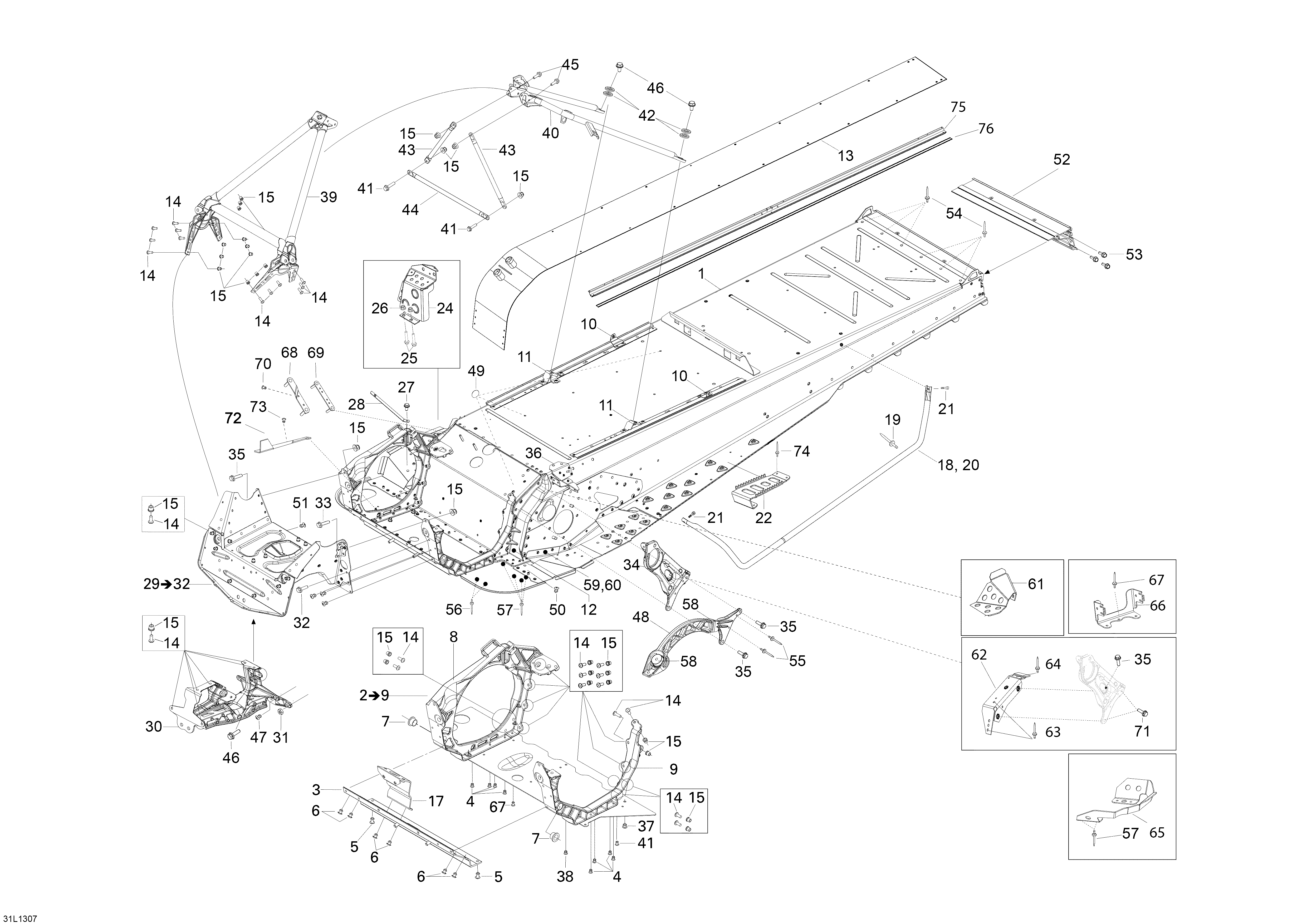

09- Frame для BRP Lynx Adventure GT 1200 4-TEC - 2013
-
№АртикулНазвание
-
1518327229 Frame XU 1203 PPS BlackFrame XU 1203 PPS Black
-
2518326720 Module EngineModule Engine
-
3518326198 Front memberFront member
-
4390909100 RivetRivet
-
5293150120 RivetRivet
-
6293150119 RivetRivet
-
7505072690 CushionCushion
-
8518326328 R.H. MemberR.H. Member
-
9518326330 L.H. MemberL.H. Member
-
10518325987 Seat box bracketSeat box bracket
-
11518326109 Bracket L.H.Bracket L.H.
-
11518326110 Bracket R.H.Bracket R.H.
-
12518325524 Frame corner L.H.Frame corner L.H.
-
12518325526 Frame corner R.H.Frame corner R.H.
-
13509000645 RadiatorRadiator
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15233261414 Hex. Flanged elastic nut M6Hex. Flanged elastic nut M6
-
17518325371 MAG SupportMAG Support
-
18518326963 Footrest support tube L.H.Footrest support tube L.H.
-
19390909100 RivetRivet
-
20518326964 Footrest support tube R.H.Footrest support tube R.H.
-
21207662086 Screw-hex. Flange M6 x 20Screw-hex. Flange M6 x 20
-
22520001208 Footrest rear blackFootrest rear black
-
24518327375 Toe hook L.H. blackToe hook L.H. black
-
24518327376 Toe hook R.H. blackToe hook R.H. black
-
25207662086 Hex. Flange screw M6 x 20Hex. Flange screw M6 x 20
-
26233261414 Elastic flanged nut M6Elastic flanged nut M6
-
27390909200 Torx-Screw M6 x 20Torx-Screw M6 x 20
-
28514054616 Bracket springBracket spring
-
29518327157 Module S drilledModule S drilled
-
30518325925 SupportSupport
-
31233281414 Elastic flanged nut M8Elastic flanged nut M8
-
32210262080 Hex. Screw forming M6 x 20Hex. Screw forming M6 x 20
-
33250000522 Hex. Flange screwHex. Flange screw
-
34518327372 Pulley supportPulley support
-
35207582586 Hex. Flanged screw M8 x 25Hex. Flanged screw M8 x 25
-
36605355235 Fastening bracketFastening bracket
-
37293150163 Rivet Hucklock 4.8Rivet Hucklock 4.8
-
38293150144 RivetRivet
-
39518326970 Member-frontMember-front
-
40518326103 Support tube upperSupport tube upper
-
41207662086 Hex. Flanged screw M6 x 20Hex. Flanged screw M6 x 20
-
43518325114 SupportSupport
-
44518326657 Upper columUpper colum
-
45250000522 Hex. Flanged screw M6 x 25Hex. Flanged screw M6 x 25
-
46207561244 Hex. Flanged screw M6 x 12Hex. Flanged screw M6 x 12
-
47293150147 Hemlock rivetHemlock rivet
-
48518326336 BraceBrace
-
49518325560 Adhesive PatchAdhesive Patch
-
50414644300 DartDart
-
51293730042 DartDart
-
52518327194 Rear ProfileRear Profile
-
53250000376 Screw M8 x 25Screw M8 x 25
-
54293150174 RivetRivet
-
5536087 RivetRivet
-
56293150104 RivetRivet
-
57390909200 RivetRivet
-
58512060295 Rubber MountRubber Mount
-
59518326439 Drive axle cover L.H.Drive axle cover L.H.
-
60518326440 Drive axle cover R.H.Drive axle cover R.H.
-
61518325626 Brake Hose GuardBrake Hose Guard
-
62518326430 Clinch nut plateClinch nut plate
-
63390909100 Rivet avex 12 mm.Rivet avex 12 mm.
-
65518326566 Pulley cover plate (NA models only)Pulley cover plate (NA models only)
-
66515177073 Fuse box supportFuse box support
-
67390909200 Rivet Avex 10mm.Rivet Avex 10mm.
-
68518326123 Gearbox Counter Plate FrontGearbox Counter Plate Front
-
69518326124 Gearbox Counter Plate RearGearbox Counter Plate Rear
-
70390402200 Rivet 3/16Rivet 3/16
-
71207583586 Screw M8 x 35Screw M8 x 35
-
72518327448 Muffler support plateMuffler support plate
-
73293150163 Rivet Huckloc 4.8 mm.Rivet Huckloc 4.8 mm.
-
7436005 Rivet blackRivet black
-
75518327505 Radiator protector. CE ModelsRadiator protector. CE Models
-
76518327389 Protector plastic. CE ModelsProtector plastic. CE Models
