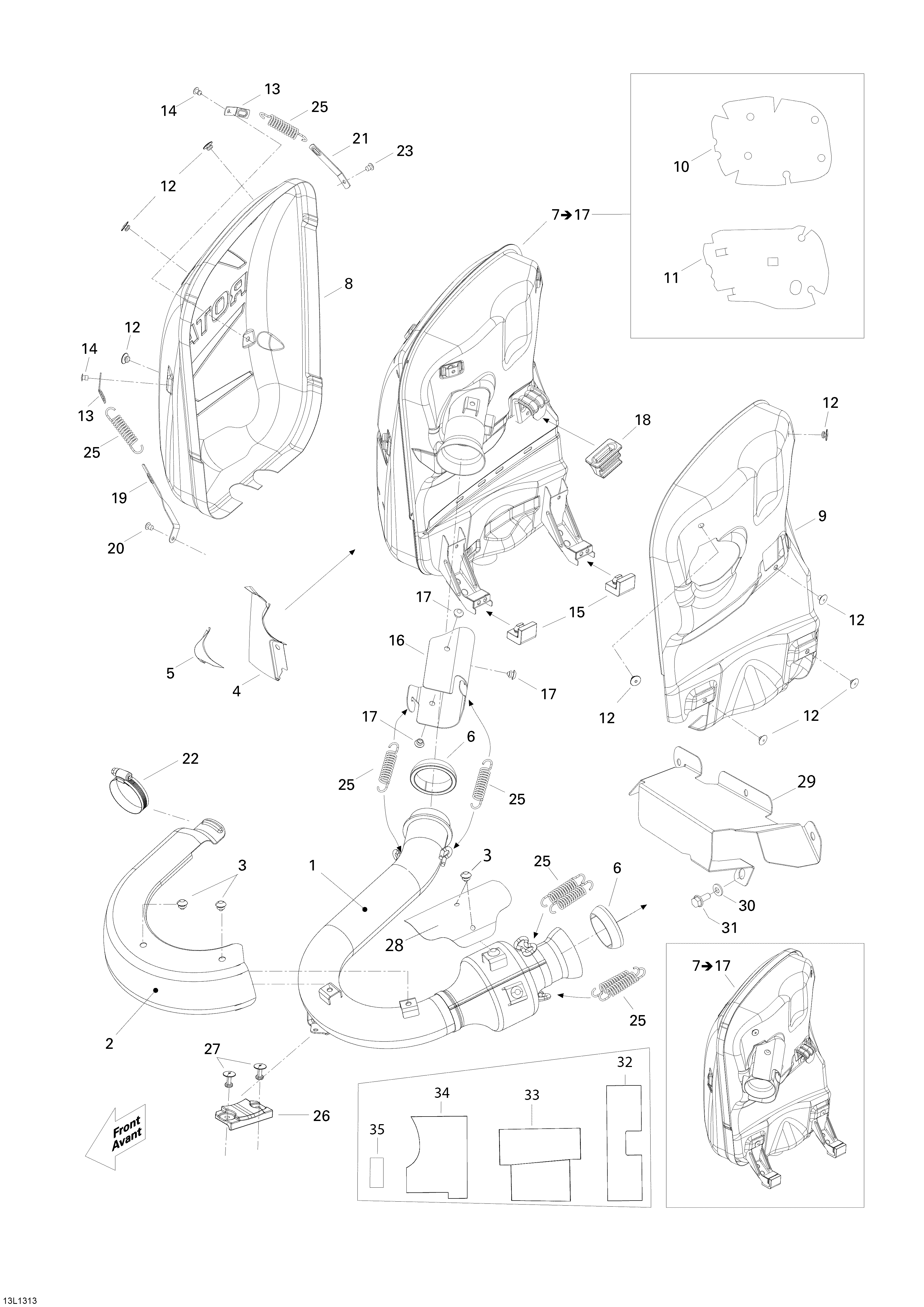

01- Exhaust System для BRP Lynx 69 Ranger Alpine 1200 4-TEC - 2013
-
№АртикулНазвание
-
1514054947 Tube assy`Tube assy`
-
2514054397 DeflectorDeflector
-
3293150173 Rivet 6,4 mmRivet 6,4 mm
-
4514054398 Reflective SheetReflective Sheet
-
5514054399 Reflective SheetReflective Sheet
-
6514054174 Exhaust GasketExhaust Gasket
-
7514054931 Muffler Ass'yMuffler Ass'y
-
8514054474 RH Heat ShieldRH Heat Shield
-
9514054369 LH Heat ShieldLH Heat Shield
-
10514054256 Insulating WoolInsulating Wool
-
11514054257 Insulating WoolInsulating Wool
-
12390910000 Pop Rivet 3/16”Pop Rivet 3/16”
-
13514054522 Spring BracketSpring Bracket
-
14390909200 Avex RivetAvex Rivet
-
15514054529 Lower StopperLower Stopper
-
16514054396 DeflectorDeflector
-
17293150173 Rivet 6,4 mmRivet 6,4 mm
-
18514054346 StopperStopper
-
19514054620 Spring BracketSpring Bracket
-
20390909100 Avex RivetAvex Rivet
-
21514054484 Spring BracketSpring Bracket
-
22293650036 ClampClamp
-
23390909200 Avex RivetAvex Rivet
-
25514054226 SpringSpring
-
26514054275 BumberBumber
-
27293150103 RivetRivet
-
28514054724 DeflectorDeflector
-
29512060675 Heat shield plate. CE modelsHeat shield plate. CE models
-
3020068 Lock washer. CE modelsLock washer. CE models
-
31205002044 Screw socket M10x1,5x20. CE modelsScrew socket M10x1,5x20. CE models
-
32508000736 Heat shield. CE modelsHeat shield. CE models
-
33508000737 Heat shield. CE modelsHeat shield. CE models
-
34508000738 Heat shield. CE modelsHeat shield. CE models
-
3539065 Aluminium coated fiberglass tube. CE modelsAluminium coated fiberglass tube. CE models
