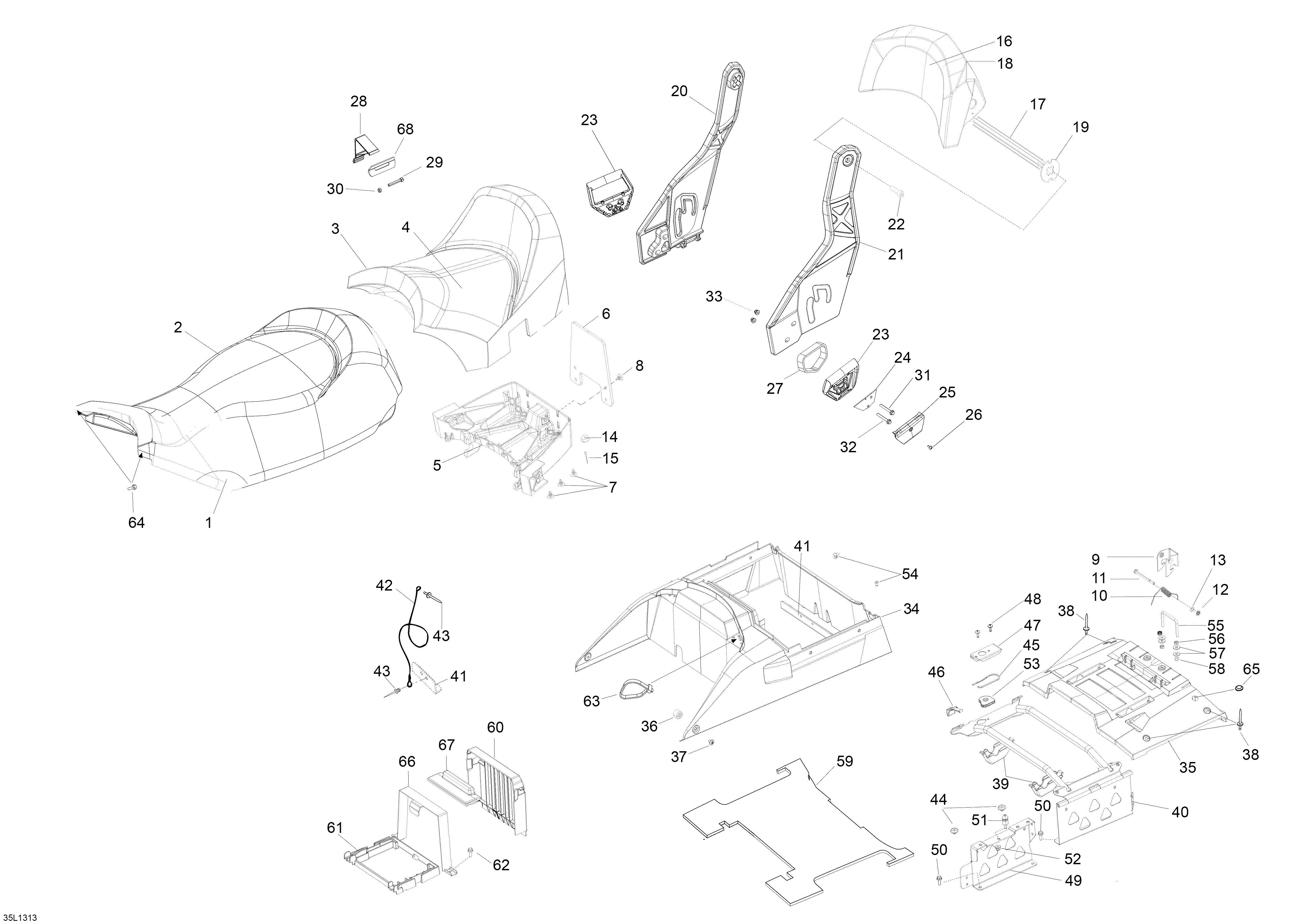

09- Seat для BRP Lynx 69 Ranger Alpine 1200 4-TEC - 2013
-
№АртикулНазвание
-
1510005316 Front Seat FoamFront Seat Foam
-
2510005724 Cover, frontCover, front
-
3510005320 Rear Seat CoverRear Seat Cover
-
4510004871 Rear Seat FoamRear Seat Foam
-
5510004816 Rear Seat BaseRear Seat Base
-
6510005330 Backrest PlateBackrest Plate
-
7414644300 DartDart
-
8293150067 Rivet Tri-FastRivet Tri-Fast
-
9708000144 LatchLatch
-
10708000369 SpringSpring
-
11207068044 ScrewScrew
-
12732610072 Push NutPush Nut
-
13234061410 WasherWasher
-
14510004903 Rubber StopperRubber Stopper
-
15293150015 Rivet 1/8Rivet 1/8
-
16510004985 Backrest FoamBackrest Foam
-
17605355357 Backrest AxleBackrest Axle
-
18510005259 Backrest CoverBackrest Cover
-
19510005312 Limiter PlateLimiter Plate
-
20510005420 RH. ArmRH. Arm
-
21510005419 LH. ArmLH. Arm
-
22250000553 ScrewScrew
-
23510005409 HandleHandle
-
24510005479 Support PlateSupport Plate
-
25510005444 Handle CoverHandle Cover
-
26732600030 Screw-FormingScrew-Forming
-
27510005613 AdapterAdapter
-
28510005139 Security LockSecurity Lock
-
29205065044 Screw-SocketScrew-Socket
-
30232561434 NutNut
-
31207689044 ScrewScrew
-
32207688544 ScrewScrew
-
33233281414 NutNut
-
34510005525 Storage Box, whiteStorage Box, white
-
35510005606 Storage Box Cover, whiteStorage Box Cover, white
-
36510005147 Rubber BushingRubber Bushing
-
37250000389 Torx-TrussTorx-Truss
-
38293150104 Rivet 3/16Rivet 3/16
-
39510004999 CoverCover
-
40510005714 Fastening TubeFastening Tube
-
41510005156 Cable Support PlateCable Support Plate
-
42546777 Seat Retainer CableSeat Retainer Cable
-
43390402200 Rivet 3/16Rivet 3/16
-
44605452114 Rubber PlugRubber Plug
-
45269700017 Spring LatchSpring Latch
-
46510005072 PullerPuller
-
47510005698 Lock Pin CoverLock Pin Cover
-
48732600030 Screw-FormingScrew-Forming
-
49510004998 Locking PlateLocking Plate
-
50207561644 ScrewScrew
-
51605452035 Lock PinLock Pin
-
52233261416 NutNut
-
53510005044 Lock Pin GuideLock Pin Guide
-
54293150104 Rivet 3/16Rivet 3/16
-
55510004876 Fastener PinFastener Pin
-
56250000135 NutNut
-
5720117 WasherWasher
-
58232561434 NutNut
-
59510005043 FoamFoam
-
60510005079 Battery CoverBattery Cover
-
61515176804 Battery SupportBattery Support
-
62207561644 ScrewScrew
-
63605627000 Tie RapTie Rap
-
64732600030 Screw-FormingScrew-Forming
-
65572051500 CapCap
-
66510005250 Battery StrapBattery Strap
-
67605356094 Retainer strapRetainer strap
-
68510005480 Screen plateScreen plate
