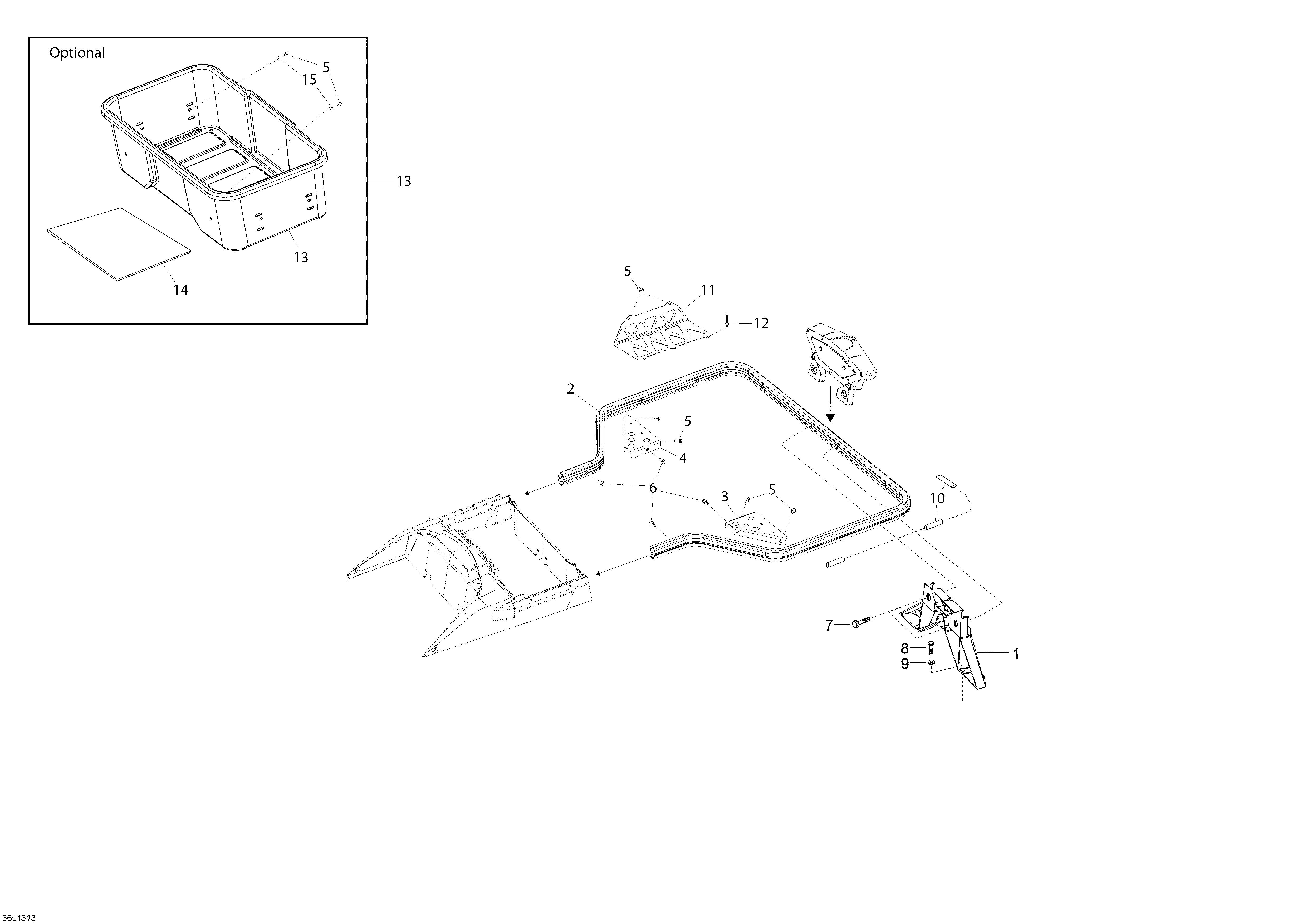

09- Cargo Rack для BRP Lynx 69 Ranger Alpine 1200 4-TEC - 2013
-
№АртикулНазвание
-
1511000559 Rear Light SupportRear Light Support
-
2511000800 Rack BarRack Bar
-
3511000803 Rack bar fastening plate LHRack bar fastening plate LH
-
4511000804 Rack bar fastening plate RHRack bar fastening plate RH
-
5207662086 Screw -Hex .Flange M6x20 10.9Screw -Hex .Flange M6x20 10.9
-
6207561644 Screw-Hex. Flange M6x16 8.8Screw-Hex. Flange M6x16 8.8
-
7207663534 Screw Hex. Flange M6x35Screw Hex. Flange M6x35
-
8205562044 Socket Head Screw M6x20 8.8Socket Head Screw M6x20 8.8
-
9234062410 Flat WasherFlat Washer
-
10511000657 Support HoseSupport Hose
-
11511000857 Alpine storage plateAlpine storage plate
-
12390909200 Rivet AvexRivet Avex
-
13860200768 Storage box Alpine kit (Opt.)Storage box Alpine kit (Opt.)
-
1520117 Washer 6X18-1,25 Black anodizedWasher 6X18-1,25 Black anodized
