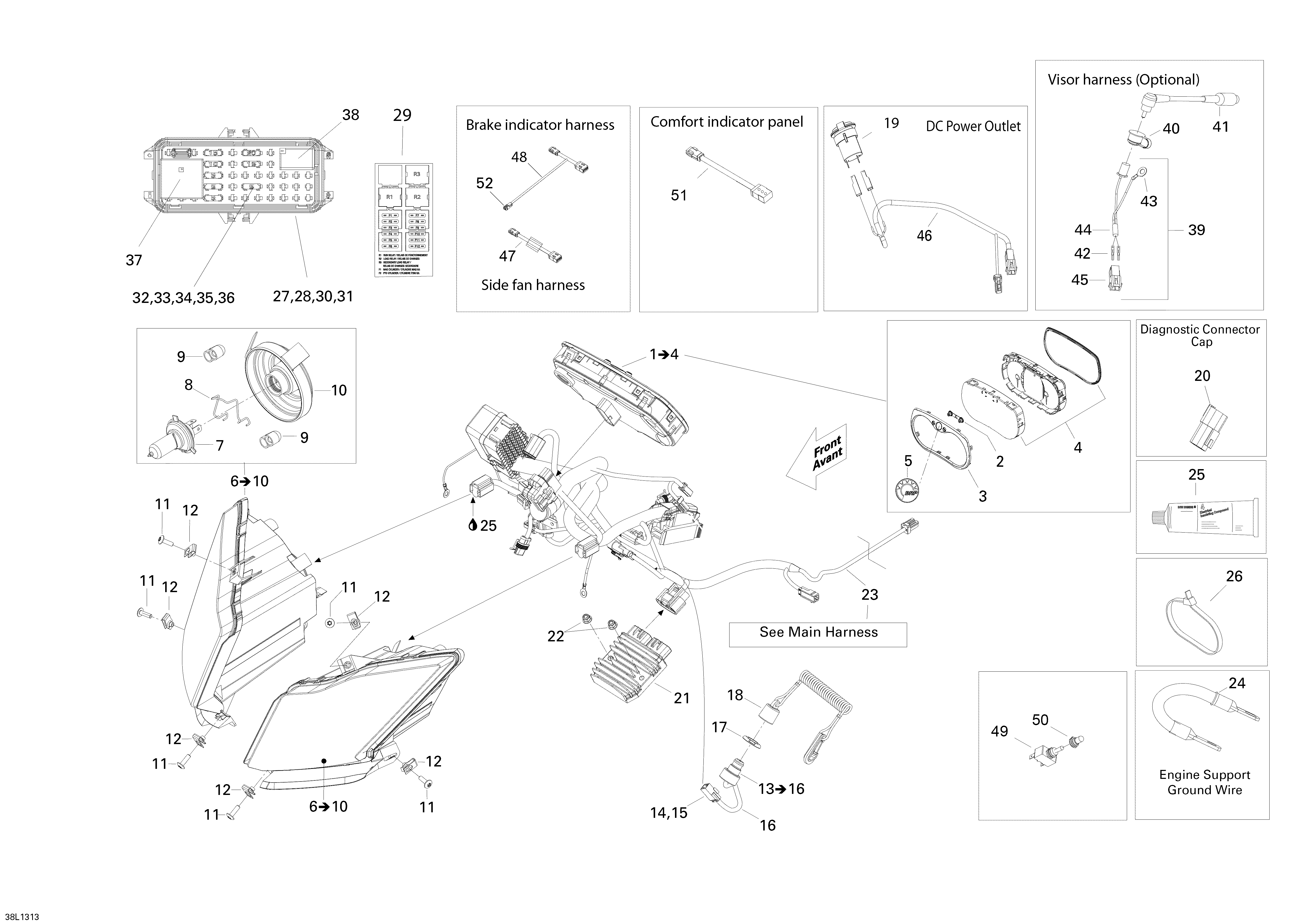

10- Electrical System для BRP Lynx 69 Ranger Alpine 1200 4-TEC - 2013
-
№АртикулНазвание
-
1515177490 Speedometer Ass'ySpeedometer Ass'y
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 Lens And SealLens And Seal
-
5219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
6517304194 RH HeadlampRH Headlamp
-
6517304195 LH HeadlampLH Headlamp
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
9515176498 CapCap
-
10515176499 CoverCover
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250100113 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
13515177249 Dess SwitchDess Switch
-
14515175232 Male TerminalMale Terminal
-
15515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
16409902000 Tubing 12 mmTubing 12 mm
-
17278000508 Safety Switch NutSafety Switch Nut
-
18515177057 DESS CapDESS Cap
-
19710001248 Power Outlet-DCPower Outlet-DC
-
20515176234 Female Terminal HousingFemale Terminal Housing
-
21515177325 RegulatorRegulator
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23515177269 Main Harness AlpineMain Harness Alpine
-
24515176883 Ground Wire (110mm)Ground Wire (110mm)
-
25293550004 Dielectric GreaseDielectric Grease
-
26293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
26293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
26414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
26293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
27710000781 Fuse Puller ToolFuse Puller Tool
-
28710001026 Fuse Box CoverFuse Box Cover
-
29516004919 Fuse label 1200Fuse label 1200
-
30278002172 FoamFoam
-
31710000660 Fuse box assyFuse box assy
-
32710000742 Fuse 5AFuse 5A
-
33710000743 Fuse 7,5AFuse 7,5A
-
34710000744 Fuse 10AFuse 10A
-
35710000745 Fuse 15AFuse 15A
-
36710000747 Fuse 30AFuse 30A
-
37515176775 Relay 50 A (bigger)Relay 50 A (bigger)
-
38515176774 Relay 30 A (smaller)Relay 30 A (smaller)
-
39515177187 Visor Harness (Opt.)Visor Harness (Opt.)
-
40572103300 CapCap
-
41515175851 ExtensionExtension
-
42515175232 Male terminalMale terminal
-
43515175172 Open barrelOpen barrel
-
44515175332 Vinyl tubingVinyl tubing
-
45515175654 Male terminal housingMale terminal housing
-
46515177188 Power Outlet HarnessPower Outlet Harness
-
47515177071 Harness side fanHarness side fan
-
48515177072 Harness brake indicatorHarness brake indicator
-
49410110700 SwitchSwitch
-
50515175281 Switch coverSwitch cover
-
51515177377 Comfort incidator panelComfort incidator panel
-
52619690022 Brake Signal Light (LED)Brake Signal Light (LED)
