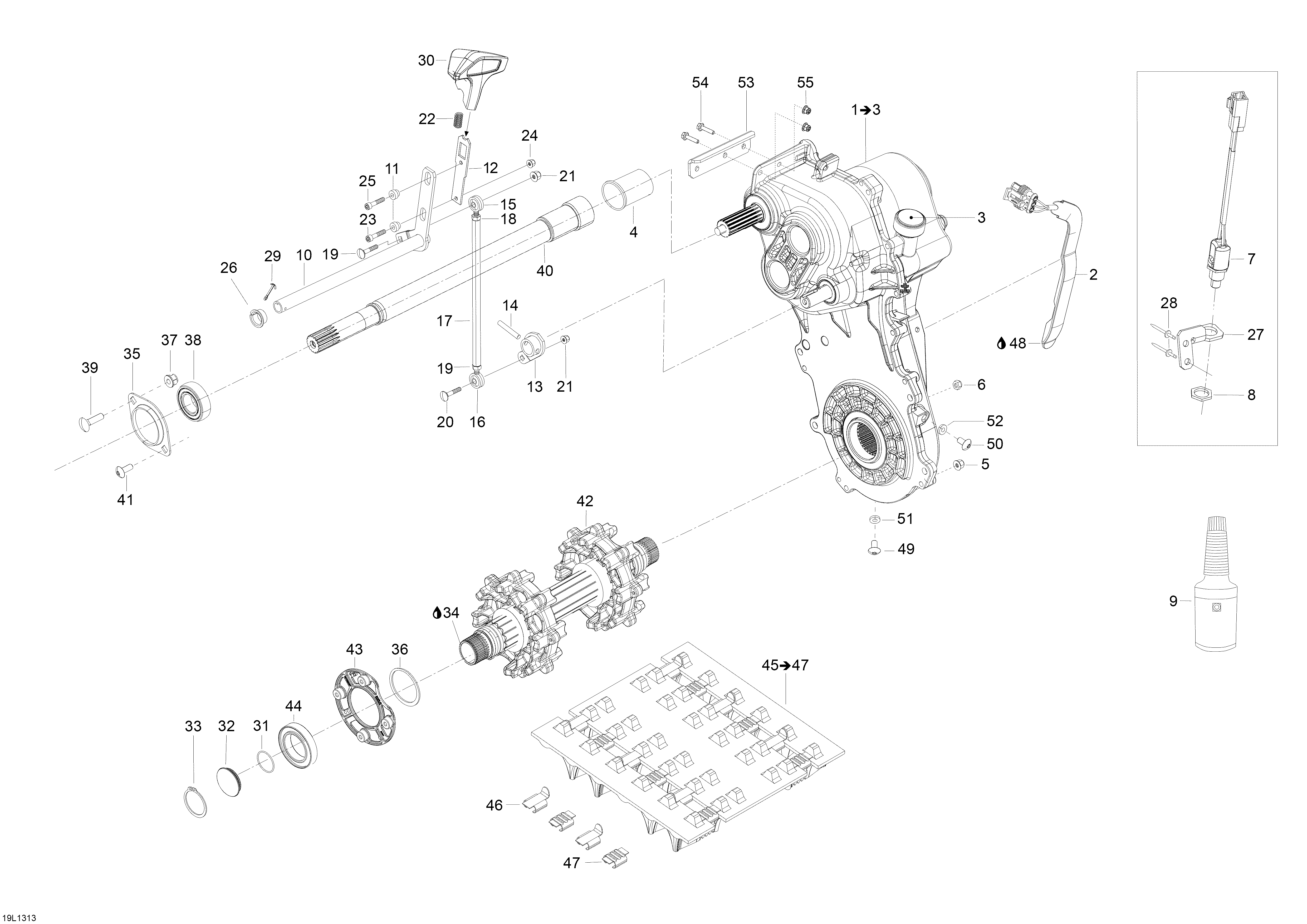

05- Drive System для BRP Lynx 69 Ranger Alpine 1200 4-TEC - 2013
-
№АртикулНазвание
-
1504153005 Gearbox, High Ratio. Includes 1 To 3Gearbox, High Ratio. Includes 1 To 3
-
2504152896 SensorSensor
-
3619230027 Cap, OilCap, Oil
-
4504153054 Protective RubberProtective Rubber
-
5233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
6232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
7515176472 SwitchSwitch
-
8250000373 NutNut
-
9619590182 Gearbox OilGearbox Oil
-
10504152887 ShifterShifter
-
11504152787 SleeveSleeve
-
12504152831 Shifter ArmShifter Arm
-
13504153131 Lever WeldLever Weld
-
1441012 Spring PinSpring Pin
-
15707000689 Ball Joint R.HBall Joint R.H
-
16707000690 Ball Joint L.HBall Joint L.H
-
17504152836 RodRod
-
18232061414 Nut M6Nut M6
-
19232066414 L.H. Nut M6L.H. Nut M6
-
20207762044 Bolt Carriage M6 x 20Bolt Carriage M6 x 20
-
21232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
22504152882 SpringSpring
-
23205052544 Screw M5 x 25Screw M5 x 25
-
24233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
25732600030 Screw FormingScrew Forming
-
26504152890 BushingBushing
-
27504152902 Sensor BracketSensor Bracket
-
28293150163 RivetRivet
-
29250400035 Cotter PinCotter Pin
-
30504152837 Shifter HandleShifter Handle
-
31293300122 O-RingO-Ring
-
32504152619 Magnetic CapMagnetic Cap
-
33504152572 CirclipCirclip
-
35504153089 Bearing HousingBearing Housing
-
36504153207 ShimShim
-
37233281414 Nut M8Nut M8
-
38293350074 Ball BearingBall Bearing
-
39207783044 Carriage BoltCarriage Bolt
-
40504153163 Counter ShaftCounter Shaft
-
41250000198 Torx Truss Screw M8 x 16Torx Truss Screw M8 x 16
-
42504153203 Drive Axle Ass'yDrive Axle Ass'y
-
43504152949 Bearing HousingBearing Housing
-
44293350059 Ball BearingBall Bearing
-
45504153218 Track Ass'y (600 x 3968 x 32 Studded). Includes 45 To 47Track Ass'y (600 x 3968 x 32 Studded). Includes 45 To 47
-
465318323 GuideGuide
-
48293800066 Loctite 5900, 300mlLoctite 5900, 300ml
-
49619230037 Allen Screw M8 x 10Allen Screw M8 x 10
-
50619230038 Allen Screw M10 x 16Allen Screw M10 x 16
-
51615580812 Gasket RingGasket Ring
-
52619230047 Seal RingSeal Ring
-
53518327029 Extension PlateExtension Plate
-
54207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
55233261414 Elastic Flange Nut M6Elastic Flange Nut M6
