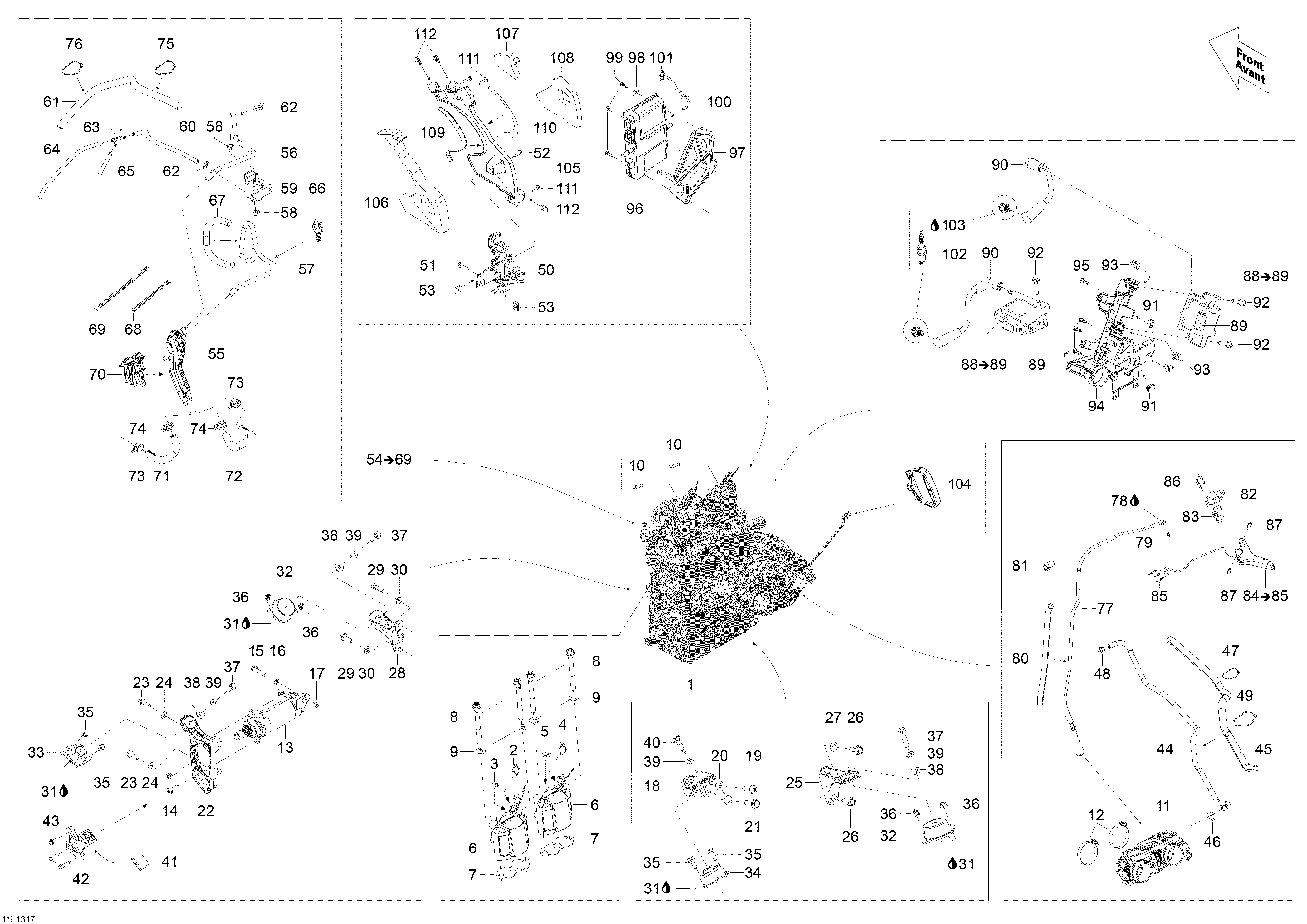

01- Engine And Engine Support для BRP Lynx Rave RE 600 E-TEC - 2013
-
№АртикулНазвание
-
2293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
3293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
4293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
5293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
6512060727 Fuel Injector Ass'yFuel Injector Ass'y
-
7420430930 GasketGasket
-
8420441187 Flanged Torx Screw M10 x 90Flanged Torx Screw M10 x 90
-
9234001410 Flat Washer M10Flat Washer M10
-
10420924724 Hose NippleHose Nipple
-
11420889197 Throttle BodyThrottle Body
-
12293650158 ClampClamp
-
13515177389 Electric Starter. (Electrical Start)Electric Starter. (Electrical Start)
-
14250000248 Pan HD. Torx Screw M8 x 25, Scotch Grip. (Electrical Start)Pan HD. Torx Screw M8 x 25, Scotch Grip. (Electrical Start)
-
15207583544 Hex. Flange Screw M8 x 35, Scotch Grip. (Electrical Start)Hex. Flange Screw M8 x 35, Scotch Grip. (Electrical Start)
-
16250200008 Flat Washer M8. (Electrical Start)Flat Washer M8. (Electrical Start)
-
17515176500 Washer. (Electrical Start)Washer. (Electrical Start)
-
18512060478 Rear Support, PTO SideRear Support, PTO Side
-
19250000248 Pan HD. Torx Screw M8 x 25, Scotch GripPan HD. Torx Screw M8 x 25, Scotch Grip
-
20234281474 Conical Spring Washer M8Conical Spring Washer M8
-
21207582586 Hex. Flanged Screw M8 x 25, Scotch GripHex. Flanged Screw M8 x 25, Scotch Grip
-
22512060712 Front Support, PTO SideFront Support, PTO Side
-
23207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
24234281474 Conical Spring Washer M8Conical Spring Washer M8
-
25512060559 Rear Support, MAG SideRear Support, MAG Side
-
26207582044 Hex. Flange Screw M8 x 20, Scotch GripHex. Flange Screw M8 x 20, Scotch Grip
-
27234281474 Conical Spring Washer M8Conical Spring Washer M8
-
28512060469 Front Support, MAG SideFront Support, MAG Side
-
29207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
30234281474 Conical Spring Washer M8Conical Spring Washer M8
-
32512060729 Rubber MountRubber Mount
-
33512060387 Rubber MountRubber Mount
-
34512060448 Rubber MountRubber Mount
-
35207561644 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
36233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
37207683044 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
38503183200 Washer, YellowWasher, Yellow
-
39234281474 Conical Spring Washer M8Conical Spring Washer M8
-
40250000570 Hex. Screw M8Hex. Screw M8
-
41512060627 StopperStopper
-
42512060576 Stopper SupportStopper Support
-
43207562544 Hex. Flanged Screw M6 x 25, Scotch GripHex. Flanged Screw M6 x 25, Scotch Grip
-
44512060740 Formed HoseFormed Hose
-
45415080000 TubingTubing
-
46293650172 Hose ClampHose Clamp
-
47414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
48293650046 Oetiker ClampOetiker Clamp
-
49293750008 Tie-Rap 368 mmTie-Rap 368 mm
-
50512060298 Solenoid SupportSolenoid Support
-
51207652044 Hex. Flange Screw M5 x 20Hex. Flange Screw M5 x 20
-
52207652044 Hex. Flange Screw M5 x 20Hex. Flange Screw M5 x 20
-
53250000079 Extruded Panel Nut M5 x 0.8Extruded Panel Nut M5 x 0.8
-
55512060692 ManifoldManifold
-
56415080200 Polyurethane Hose, 310 mmPolyurethane Hose, 310 mm
-
57415080200 Polyurethane Hose, 425 mmPolyurethane Hose, 425 mm
-
58293650043 ClampClamp
-
59512060774 Solenoid ValveSolenoid Valve
-
60270000374 Hose 4.3 mm, 220 mmHose 4.3 mm, 220 mm
-
61409901700 Tubing 9 mmTubing 9 mm
-
62293750001 Tie Rap 94 mmTie Rap 94 mm
-
63293710068 T-FittingT-Fitting
-
64270000374 Hose 4.3 mm, 180 mmHose 4.3 mm, 180 mm
-
65270000374 Hose 4.3 mm, 50 mmHose 4.3 mm, 50 mm
-
66512060762 Clip Ass?yClip Ass?y
-
67415079900 Protector Tube, 175 mmProtector Tube, 175 mm
-
68512060814 Spring, 295 mmSpring, 295 mm
-
69512060807 Spring, 410 mmSpring, 410 mm
-
70512060769 SupportSupport
-
71512060695 HoseHose
-
72512060694 HoseHose
-
73293650214 Spring ClampSpring Clamp
-
74293650047 Crimp ClampCrimp Clamp
-
75293750001 Tie Rap 94 mmTie Rap 94 mm
-
76293750001 Tie Rap 94 mmTie Rap 94 mm
-
77512060624 Throttle CableThrottle Cable
-
78619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
79414274500 CirclipCirclip
-
80409901700 Tubing 9 mmTubing 9 mm
-
81512060313 ProtectorProtector
-
82512059969 Upper HousingUpper Housing
-
83512059537 Lower HousingLower Housing
-
84512060618 Throttle Handle Ass'y. Includes 84 To 85Throttle Handle Ass'y. Includes 84 To 85
-
85515175232 Male TerminalMale Terminal
-
86205052544 Socket Screw M5 x 25Socket Screw M5 x 25
-
87732601143 Shoulder ScrewShoulder Screw
-
88512060810 Ignition Coil. Includes 88 To 89Ignition Coil. Includes 88 To 89
-
89710000568 HousingHousing
-
90512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
91710000992 ClipClip
-
92250000253 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
93293100003 NutNut
-
94512060696 Support CoilsSupport Coils
-
95241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
96512060833 Calibrated Module ETECCalibrated Module ETEC
-
97512060858 Calibrated Module SupportCalibrated Module Support
-
98250200040 Flat WasherFlat Washer
-
99250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
100415080100 LineLine
-
101414814100 Male ConnectorMale Connector
-
102415129432 Spark Plug (PZFR6F)Spark Plug (PZFR6F)
-
103619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
104512060136 Starter Grip. (Manual Start)Starter Grip. (Manual Start)
-
105512060339 Noise ShieldNoise Shield
-
106512060343 Interior Noise FoamInterior Noise Foam
-
107512060344 Upper Exterior Noise FoamUpper Exterior Noise Foam
-
108512060362 Lower Exterior Noise FoamLower Exterior Noise Foam
-
109512060574 Heat ShieldHeat Shield
-
110512060575 Heat ShieldHeat Shield
-
111207652044 Hex. Flange Screw M5 x 20Hex. Flange Screw M5 x 20
-
112250000079 Panel Nut M5 x 0.8Panel Nut M5 x 0.8
