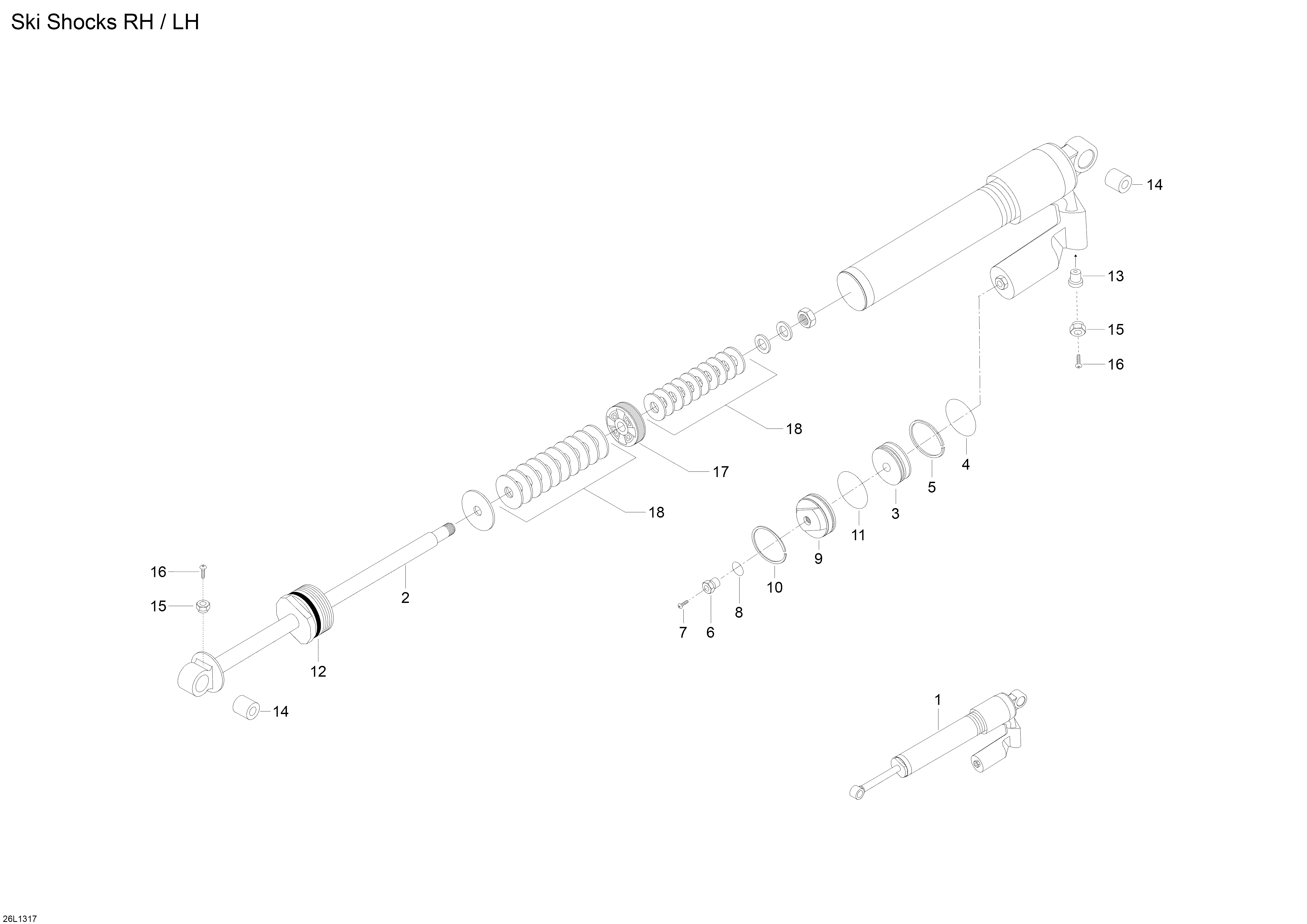

07- Ski Shocks для BRP Lynx Rave RE 600 E-TEC - 2013
-
№АртикулНазвание
-
1505073299 Front Shock RHFront Shock RH
-
1505073300 Front Shock LHFront Shock LH
-
2619300175 Rod AssyRod Assy
-
4415093807 O RingO Ring
-
5415093806 Piston RingPiston Ring
-
6505070398 Air ValveAir Valve
-
7505070399 ScrewScrew
-
8505070400 O RingO Ring
-
9619300009 Seal Carrier Ass'ySeal Carrier Ass'y
-
10619300006 Stop RingStop Ring
-
11415093804 O RingO Ring
-
14619300028 Rubber BushRubber Bush
-
15505072753 Knob AdjusterKnob Adjuster
-
16205031060 Socket Screw M3 x 10Socket Screw M3 x 10
-
18619300060 Shim 40/46 mm, 17 x 0,114Shim 40/46 mm, 17 x 0,114
-
18619300069 Shim 40/46 mm, 17 x 0,203Shim 40/46 mm, 17 x 0,203
-
18619300068 Shim 40/46 mm, 18 x 0,114Shim 40/46 mm, 18 x 0,114
-
18619300067 Shim 40/46 mm, 18 x 0,152Shim 40/46 mm, 18 x 0,152
-
18230029 Shim 40/46 mm, 20 x 0,114Shim 40/46 mm, 20 x 0,114
-
18230030 Shim 40/46 mm, 20 x 0,152Shim 40/46 mm, 20 x 0,152
-
18230031 Shim 40/46 mm, 20 x 0,203Shim 40/46 mm, 20 x 0,203
-
18230032 Shim 40/46 mm, 20 x 0,254Shim 40/46 mm, 20 x 0,254
-
18619300097 Shim 40/46 mm, 20 x 0,305Shim 40/46 mm, 20 x 0,305
-
18619300143 Shim 40/46 mm, 22 x 0,114Shim 40/46 mm, 22 x 0,114
-
18619300140 Shim 40/46 mm, 22 x 0,152Shim 40/46 mm, 22 x 0,152
-
18619300098 Shim 40/46 mm, 22 x 0,203Shim 40/46 mm, 22 x 0,203
-
18619300134 Shim 40/46 mm, 22 x 0,254Shim 40/46 mm, 22 x 0,254
-
18619300144 Shim 40/46 mm, 22 x 0,305Shim 40/46 mm, 22 x 0,305
-
18619300145 Shim 40/46 mm, 24 x 0,114Shim 40/46 mm, 24 x 0,114
-
18619300146 Shim 40/46 mm, 24 x 0,152Shim 40/46 mm, 24 x 0,152
-
18619300147 Shim 40/46 mm, 24 x 0,203Shim 40/46 mm, 24 x 0,203
-
18619300095 Shim 40/46 mm, 24 x 0,254Shim 40/46 mm, 24 x 0,254
-
18619300148 Shim 40/46 mm, 24 x 0,305Shim 40/46 mm, 24 x 0,305
-
18619300149 Shim 40/46 mm, 26 x 0,114Shim 40/46 mm, 26 x 0,114
-
18619300141 Shim 40/46 mm, 26 x 0,152Shim 40/46 mm, 26 x 0,152
-
18619300150 Shim 40/46 mm, 26 x 0,203Shim 40/46 mm, 26 x 0,203
-
18619300099 Shim 40/46 mm, 26 x 0,254Shim 40/46 mm, 26 x 0,254
-
18619300100 Shim 40/46 mm, 26 x 0,305Shim 40/46 mm, 26 x 0,305
-
18619300101 Shim 40/46 mm, 28 x 0,114Shim 40/46 mm, 28 x 0,114
-
18619300151 Shim 40/46 mm, 28 x 0,152Shim 40/46 mm, 28 x 0,152
-
18619300102 Shim 40/46 mm, 28 x 0,203Shim 40/46 mm, 28 x 0,203
-
18619300103 Shim 40/46 mm, 28 x 0,254Shim 40/46 mm, 28 x 0,254
-
18619300152 Shim 40/46 mm, 28 x 0,305Shim 40/46 mm, 28 x 0,305
-
18619300153 Shim 40/46 mm, 30 x 0,114Shim 40/46 mm, 30 x 0,114
-
18619300104 Shim 40/46 mm, 30 x 0,152Shim 40/46 mm, 30 x 0,152
-
18619300154 Shim 40/46 mm, 30 x 0,203Shim 40/46 mm, 30 x 0,203
-
18619300113 Shim 40/46 mm, 30 x 0,254Shim 40/46 mm, 30 x 0,254
-
18619300056 Shim 40/46 mm, 30 x 0,305Shim 40/46 mm, 30 x 0,305
-
18230082 Shim 40/46 mm, 32 x 0,114Shim 40/46 mm, 32 x 0,114
-
18619300137 Shim 40/46 mm, 32 x 0,152Shim 40/46 mm, 32 x 0,152
-
18619300138 Shim 40/46 mm, 32 x 0,203Shim 40/46 mm, 32 x 0,203
-
18619300059 Shim 40/46 mm, 32 x 0,254Shim 40/46 mm, 32 x 0,254
-
18619300022 Shim 40/46 mm, 32 x 0,305Shim 40/46 mm, 32 x 0,305
-
18230033 Shim 40/46 mm, 34 x 0,114Shim 40/46 mm, 34 x 0,114
-
18230034 Shim 40/46 mm, 34 x 0,152Shim 40/46 mm, 34 x 0,152
-
18230035 Shim 40/46 mm, 34 x 0,203Shim 40/46 mm, 34 x 0,203
-
18230036 Shim 40/46 mm, 34 x 0,254Shim 40/46 mm, 34 x 0,254
-
18619300070 Shim 40/46 mm, 34 x 0,305Shim 40/46 mm, 34 x 0,305
-
18230037 Shim 40/46 mm, 36 x 0,114Shim 40/46 mm, 36 x 0,114
-
18619300155 Shim 40/46 mm, 36 x 0,152Shim 40/46 mm, 36 x 0,152
-
18619300142 Shim 40/46 mm, 36 x 0,203Shim 40/46 mm, 36 x 0,203
-
18503189038 Shim 40/46 mm, 36 x 0,254Shim 40/46 mm, 36 x 0,254
-
18619300105 Shim 40/46 mm, 36 x 0,305Shim 40/46 mm, 36 x 0,305
-
18230040 Shim 40/46 mm, 38 x 0,152Shim 40/46 mm, 38 x 0,152
-
18230041 Shim 40/46 mm, 38 x 0,203Shim 40/46 mm, 38 x 0,203
-
18230042 Shim 40/46 mm, 38 x 0,254Shim 40/46 mm, 38 x 0,254
-
18619300106 Shim 40/46 mm, 38 x 0,305Shim 40/46 mm, 38 x 0,305
-
18503189039 Shim 40/46 mm, 40 x 0,152Shim 40/46 mm, 40 x 0,152
-
18619300112 Shim 40/46 mm, 40 x 0,203Shim 40/46 mm, 40 x 0,203
-
18619300158 Shim 40/46 mm, 40 x 0,254Shim 40/46 mm, 40 x 0,254
-
18619300107 Shim 40/46 mm, 40 x 0,305Shim 40/46 mm, 40 x 0,305
