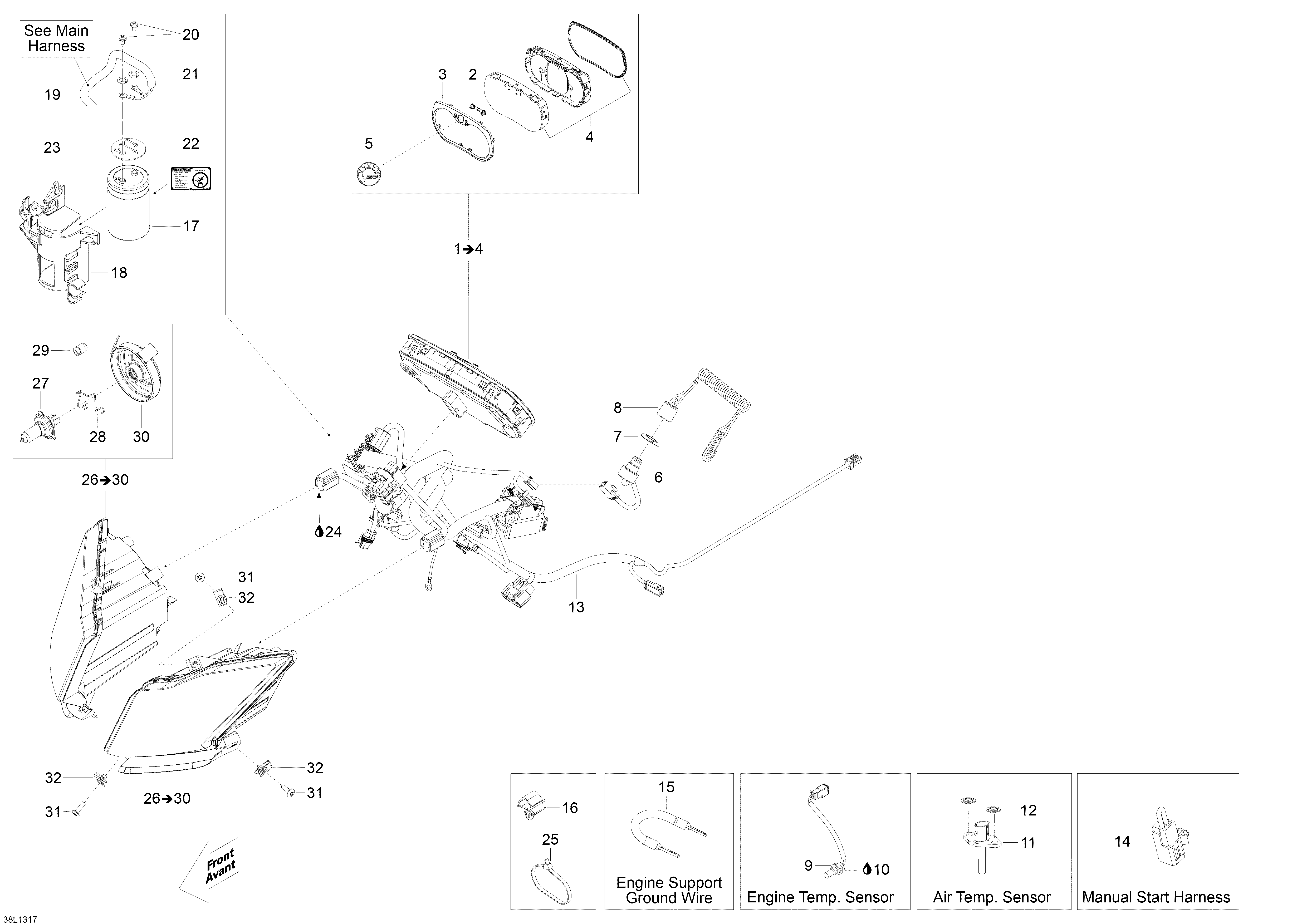

10- Electrical System для BRP Lynx Rave RE 600 E-TEC - 2013
-
№АртикулНазвание
-
1515177470 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 BRP LogoBRP Logo
-
6515177249 Dess SwitchDess Switch
-
7278000508 Safety Switch NutSafety Switch Nut
-
8515177057 DESS CapDESS Cap
-
9515177471 Temperature SensorTemperature Sensor
-
11515176366 Air Temperature SensorAir Temperature Sensor
-
12389804300 Push NutPush Nut
-
13515177099 Main HarnessMain Harness
-
14515176661 Manual Start HarnessManual Start Harness
-
15515177289 Ground WireGround Wire
-
16515177066 ClipClip
-
17515176349 CapacitorCapacitor
-
18515176607 Capacitor SupportCapacitor Support
-
20250000462 Socket Head Screw M10 x 32Socket Head Screw M10 x 32
-
21250200026 Lock washerLock washer
-
22516005515 Capacitor DecalCapacitor Decal
-
23515177193 CapCap
-
24619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
25414115200 Tie Rap 180mmTie Rap 180mm
-
25293750008 Tie Rap 350mmTie Rap 350mm
-
25293750001 Tie Rap 94mmTie Rap 94mm
-
25605627000 Tie RapTie Rap
-
26517304194 Headlamp Ass'y RH. Includes 26 To 30Headlamp Ass'y RH. Includes 26 To 30
-
26517304195 Headlamp Ass'y LH. Includes 26 To 30Headlamp Ass'y LH. Includes 26 To 30
-
27515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
29515176141 CapCap
-
30515176499 CoverCover
-
31250000128 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
32250100113 Panel Nut M6Panel Nut M6
