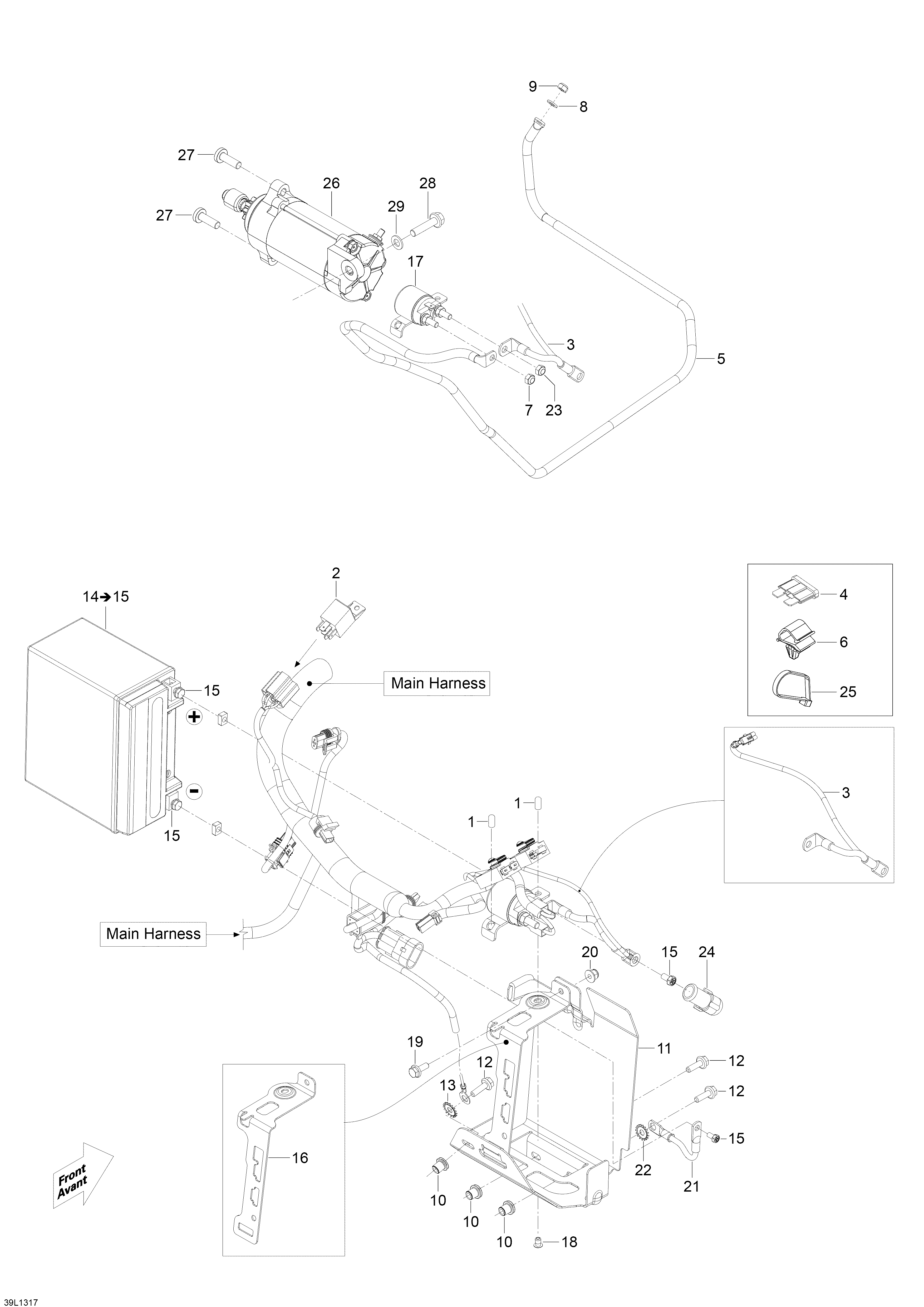

10- Battery And Starter для BRP Lynx Rave RE 600 E-TEC - 2013
-
№АртикулНазвание
-
1515176141 CapCap
-
2515177041 RelayRelay
-
3515177200 Fuse Battery WireFuse Battery Wire
-
4410917200 Fuse, 30AFuse, 30A
-
5515177067 Battery WireBattery Wire
-
6515177066 ClipClip
-
7232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
8234061410 Flat WasherFlat Washer
-
9232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
10293450275 InsertInsert
-
11515176886 Battery Support Ass'yBattery Support Ass'y
-
12207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
13250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
14410301203 Battery, 18 Amp. Includes 14 To 15Battery, 18 Amp. Includes 14 To 15
-
15295500849 Battery Fastener KitBattery Fastener Kit
-
16515177008 Battery StripBattery Strip
-
17515176501 Starter RelayStarter Relay
-
18390402200 Pop Rivet 3/16Pop Rivet 3/16
-
19207661644 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
20233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21515176358 Ground WireGround Wire
-
22250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
23232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
24710000495 Protector CapProtector Cap
-
25414115200 Tie Rap 180mmTie Rap 180mm
-
25293750008 Tie Rap 350mmTie Rap 350mm
-
25293750001 Tie Rap 94mmTie Rap 94mm
-
25605627000 Tie RapTie Rap
-
26515177389 StarterStarter
-
27250000248 Torx Screw M8 x 25, Scotch GripTorx Screw M8 x 25, Scotch Grip
-
28207583544 Hex Flanged Screw M8 x 35, Scotch GripHex Flanged Screw M8 x 35, Scotch Grip
-
29250200008 Flat Washer M8Flat Washer M8
