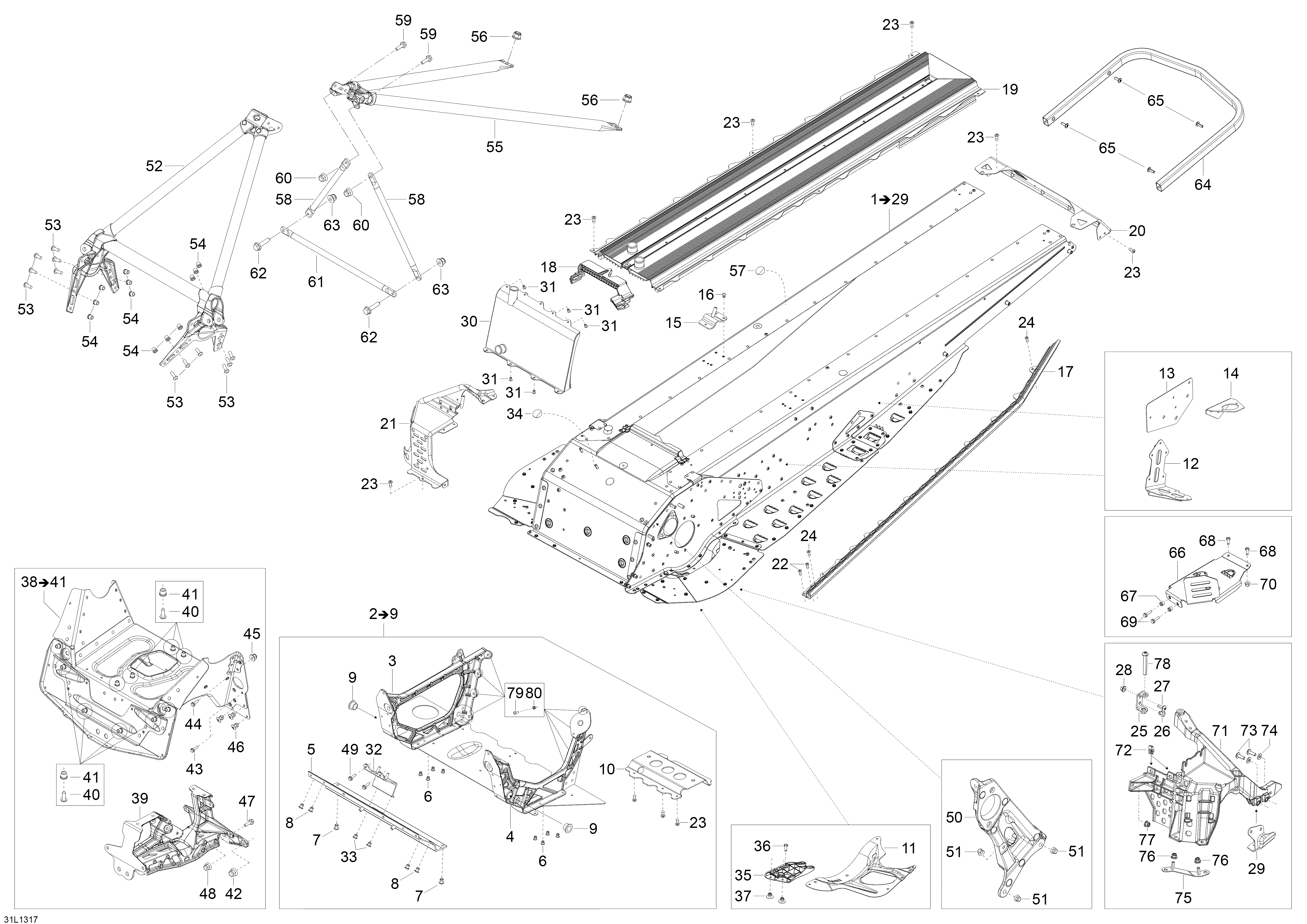

09- Frame для BRP Lynx Rave RE 600 E-TEC - 2013
-
№АртикулНазвание
-
1518327123 Frame Ass?y. Includes 1 To 29Frame Ass?y. Includes 1 To 29
-
2518326077 E Module. Includes 2 To 9E Module. Includes 2 To 9
-
3518326795 Member RHMember RH
-
4518326796 Member LHMember LH
-
5518326198 Front MemberFront Member
-
6390909100 RivetRivet
-
7293150120 RivetRivet
-
8293150119 RivetRivet
-
9505073317 CushionCushion
-
10518327285 Engine SupportEngine Support
-
11518324874 Reinforcement RHReinforcement RH
-
11518324875 Reinforcement LHReinforcement LH
-
12518326038 Angle ReinforcementAngle Reinforcement
-
13518327607 SupportSupport
-
14518326084 SupportSupport
-
15518326421 Rear Base RHRear Base RH
-
15518326443 Rear Base LHRear Base LH
-
16293150119 RivetRivet
-
17518325693 Roller LHRoller LH
-
17518325694 Roller RHRoller RH
-
18518326656 SealSeal
-
19518326786 Rear RadiatorRear Radiator
-
20518327105 Rear CapRear Cap
-
21518326216 Stirrup RHStirrup RH
-
22390402300 Pop Rivet 3/16Pop Rivet 3/16
-
23390909200 RivetRivet
-
24390909100 RivetRivet
-
25518326961 AttachAttach
-
26293150147 RivetRivet
-
27250000534 Torx Truss M6 x 16Torx Truss M6 x 16
-
28233061414 Hex. Flange Nut M6Hex. Flange Nut M6
-
29518326960 SupportSupport
-
30518326485 Front RadiatorFront Radiator
-
31390909200 RivetRivet
-
32518325943 MAG SupportMAG Support
-
33293150119 RivetRivet
-
34518325560 Adhesive PatchAdhesive Patch
-
35518325782 Deflector RHDeflector RH
-
35518325783 Deflector LHDeflector LH
-
36207561244 Hex. Flange Screw M6 x 12Hex. Flange Screw M6 x 12
-
37293150104 Pop Rivet 3/16Pop Rivet 3/16
-
38518326210 Cross Member. Includes 38 To 41Cross Member. Includes 38 To 41
-
39518325925 SupportSupport
-
40207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
41233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
42233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
43210262080 Forming Screw M6 x 20Forming Screw M6 x 20
-
44207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
45233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
46293150179 RivetRivet
-
47207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
48233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
49207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
50518327460 Pulley SupportPulley Support
-
51233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
52518327565 Front MemberFront Member
-
53207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
54233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
55518327237 Rear MemberRear Member
-
56233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
57518325560 Adhesive PatchAdhesive Patch
-
58518325114 SupportSupport
-
59207662086 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
60233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
61518325115 Upper ColumnUpper Column
-
62250000522 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
63233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
64518325481 Rear BumperRear Bumper
-
65250000402 Torx Truss M6 x 18Torx Truss M6 x 18
-
66518327128 Footrest LH, BlackFootrest LH, Black
-
66518327089 Footrest RH, BlackFootrest RH, Black
-
67605636003 Clinch Nut M6Clinch Nut M6
-
68250000589 Hex. Cap Screw M6 x 12Hex. Cap Screw M6 x 12
-
69207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
70232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
71518326820 Stirrup LHStirrup LH
-
72250000079 Extruded Panel Nut M5Extruded Panel Nut M5
-
73250000402 Torx Truss M6 x 18Torx Truss M6 x 18
-
74250200039 Flat WasherFlat Washer
-
75518326986 AttachAttach
-
76233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
77233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
78250000535 Torx Truss M8 x 55Torx Truss M8 x 55
-
79207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
80233261414 Elastic Flange Nut M6Elastic Flange Nut M6
