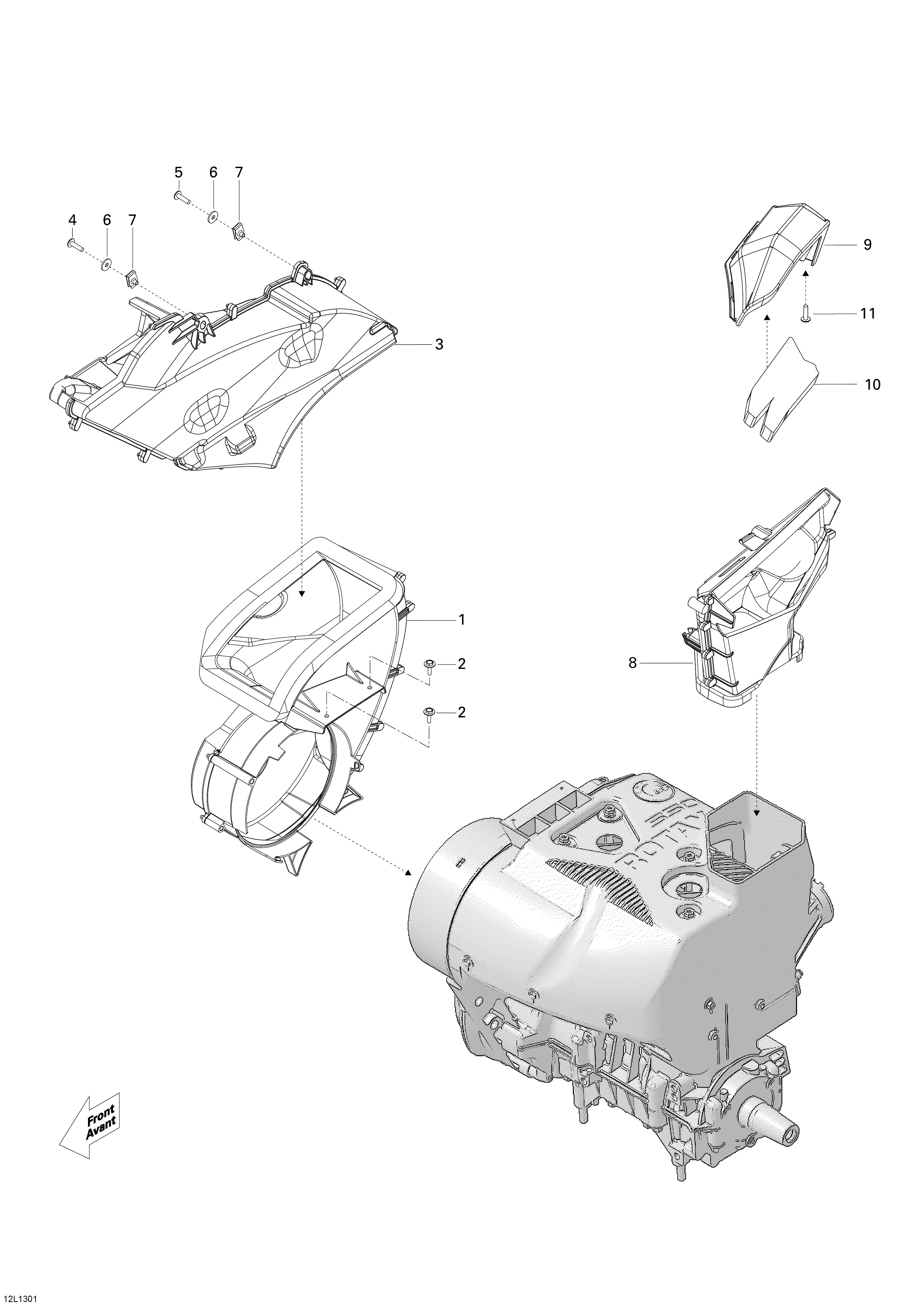

01- Cooling System для BRP Lynx 59 YETI 550 - 2013
-
№АртикулНазвание
-
1509000840 Inlet Duct Ass'yInlet Duct Ass'y
-
2250000377 Plastite Screw Type K-40 M4 x 16Plastite Screw Type K-40 M4 x 16
-
3509000684 Air Chamber Ass'yAir Chamber Ass'y
-
4250000130 Torx Screw M5 x 20Torx Screw M5 x 20
-
5250000300 Torx-Truss M/S M5 x 25Torx-Truss M/S M5 x 25
-
6391301600 WasherWasher
-
7250000079 Panel Nut M5 x 0.8Panel Nut M5 x 0.8
-
8509000683 Outlet Duct Ass'yOutlet Duct Ass'y
-
9509000687 Air Out DeflectorAir Out Deflector
-
10509000831 Air Inlet FoamAir Inlet Foam
-
11293700048 Screw Plastofast MP 6 x 16 PZScrew Plastofast MP 6 x 16 PZ
