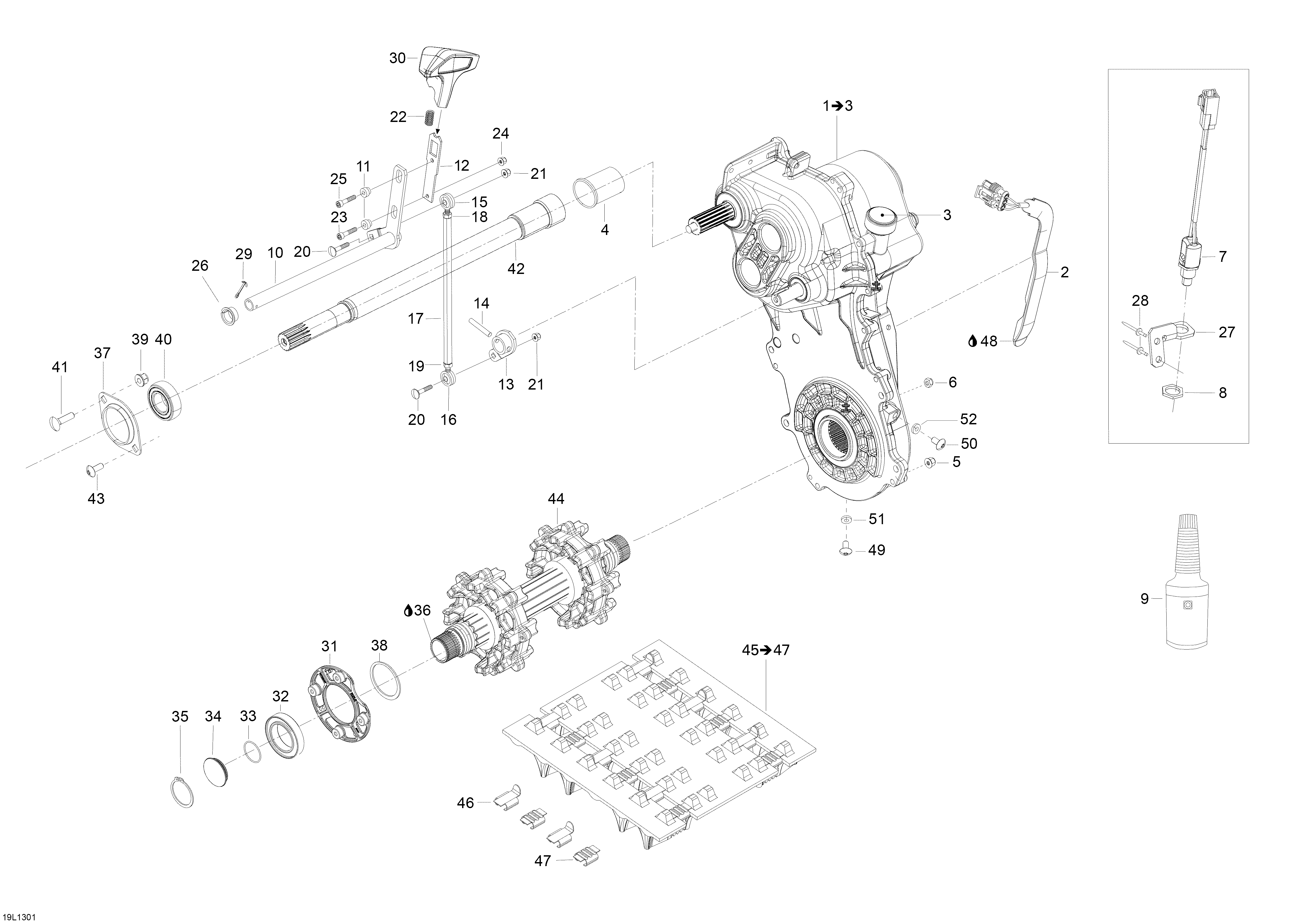

05- Drive System для BRP Lynx 59 YETI 550 - 2013
-
№АртикулНазвание
-
1504153140 Gear Box, Slow Ratio. Includes 1 To 3Gear Box, Slow Ratio. Includes 1 To 3
-
2504152896 SensorSensor
-
3619230027 Cap, OilCap, Oil
-
4504153054 Protective RubberProtective Rubber
-
5233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
6232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
7515176472 SwitchSwitch
-
8250000373 NutNut
-
9619590182 Gearbox OilGearbox Oil
-
10504152887 ShifterShifter
-
11504152787 SleeveSleeve
-
12504152831 Shifter ArmShifter Arm
-
13504152834 Lever WeldLever Weld
-
1441012 Spring Pin 6 x 30Spring Pin 6 x 30
-
15707000689 Ball Joint RHBall Joint RH
-
16707000690 Ball Joint LHBall Joint LH
-
17504152836 RodRod
-
18232061414 Nut M6Nut M6
-
19232066414 Nut LH Thread M6Nut LH Thread M6
-
20207762044 Bolt Carriage M6 x 20Bolt Carriage M6 x 20
-
21232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
22504152882 SpringSpring
-
23205052544 Socket Head Screw M5 x 25Socket Head Screw M5 x 25
-
24233251434 Nut M5Nut M5
-
25732600030 Screw FormingScrew Forming
-
26504152890 BushingBushing
-
27504152902 Sensor BracketSensor Bracket
-
28293150163 RivetRivet
-
29250400035 Cotter PinCotter Pin
-
30504152837 Shifter HandleShifter Handle
-
31504152949 Bearing HousingBearing Housing
-
32293350059 Ball BearingBall Bearing
-
33293300122 O-RingO-Ring
-
34504152619 Magnetic CapMagnetic Cap
-
35504152572 CirclipCirclip
-
37504153089 Bearing HousingBearing Housing
-
38504153207 ShimShim
-
39233281414 Nut M8Nut M8
-
40293350074 Ball BearingBall Bearing
-
41207783044 Bolt Carriage M8 x 30Bolt Carriage M8 x 30
-
42504152963 Counter ShaftCounter Shaft
-
43250000198 Torx Truss M8 x 16Torx Truss M8 x 16
-
44504153106 Drive Axle Ass'yDrive Axle Ass'y
-
45504152817 Track Ass'y (500 x 3923 x 32). Includes 45 To 47Track Ass'y (500 x 3923 x 32). Includes 45 To 47
-
465318323 GuideGuide
-
48293800066 Loctite 5900, 300mlLoctite 5900, 300ml
-
49619230037 Allen Screw M8 x 10Allen Screw M8 x 10
-
50619230038 Allen Screw M10 x 16Allen Screw M10 x 16
-
51615580812 Gasket RingGasket Ring
-
52619230047 Seal RingSeal Ring
