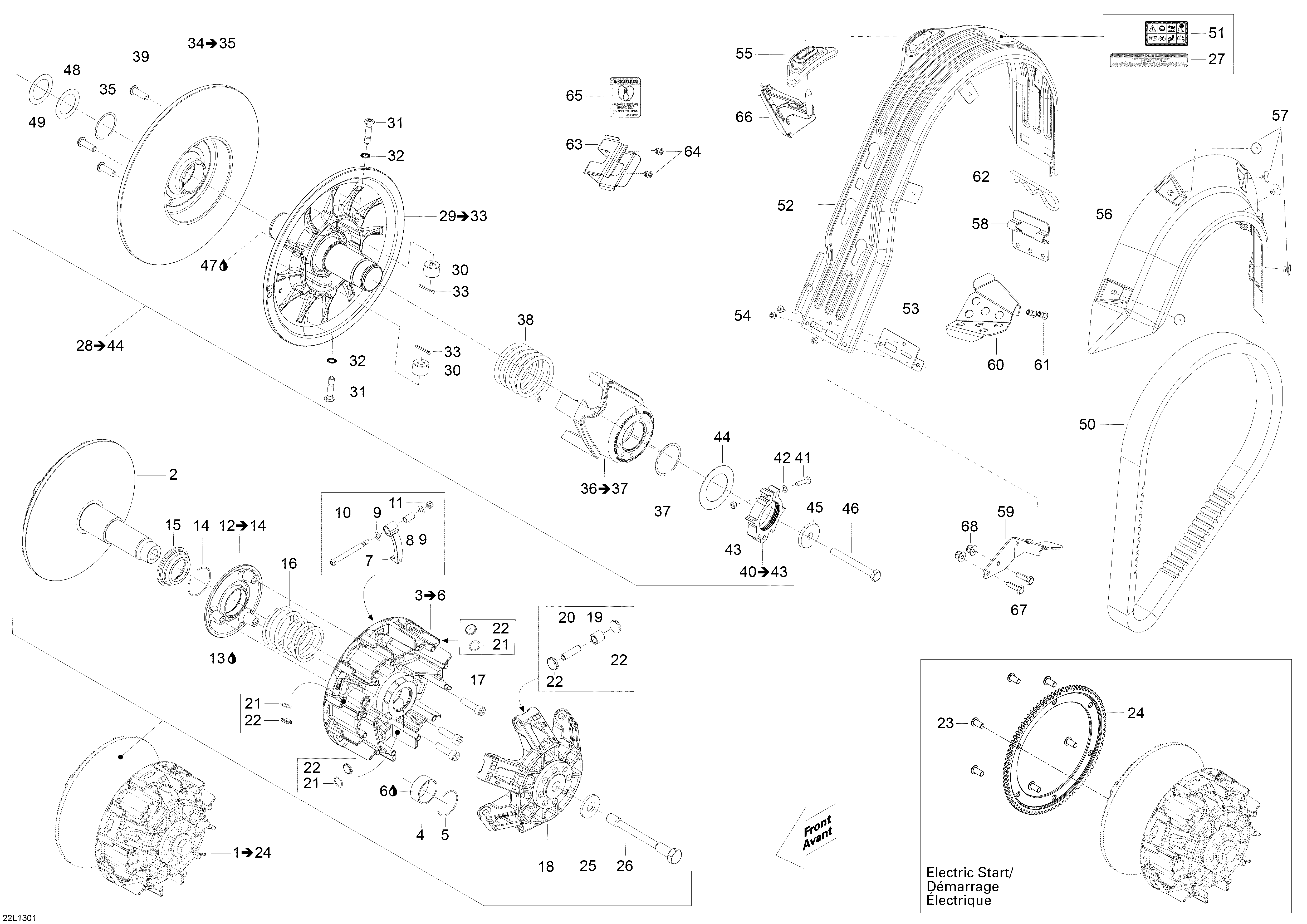

05- Pulley System для BRP Lynx 59 YETI 550 - 2013
-
№АртикулНазвание
-
2417223534 Fixe Flange Ass'yFixe Flange Ass'y
-
3417223606 Sliding Flange Ass'y. Includes 3 To 6Sliding Flange Ass'y. Includes 3 To 6
-
4293350079 Journal BearingJournal Bearing
-
5293370065 CirclipCirclip
-
6619600012 Loctite 609, 50mlLoctite 609, 50ml
-
7417223604 RampRamp
-
8293350078 Journal BearingJournal Bearing
-
9417223255 WasherWasher
-
10417223694 Axle RampAxle Ramp
-
11232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
12417223615 Sliding Adaptor Ass'y. Includes 12 To 14Sliding Adaptor Ass'y. Includes 12 To 14
-
13619600012 Loctite 609, 50mlLoctite 609, 50ml
-
14293370063 CirclipCirclip
-
15417223155 Spring SeatSpring Seat
-
16417223315 Spring, Red / Yellow (356-756N)Spring, Red / Yellow (356-756N)
-
17250000473 Hex. Socket Head ScrewHex. Socket Head Screw
-
18417223565 Governor Cup Ass'yGovernor Cup Ass'y
-
19417223767 RollerRoller
-
20417223257 Roller AxleRoller Axle
-
21293300145 O-RingO-Ring
-
22417223269 Slider ShoeSlider Shoe
-
23250000243 Torx Screw M8 x 16Torx Screw M8 x 16
-
24417223476 Gear RingGear Ring
-
25250200006 Spring WasherSpring Washer
-
26417300407 Drive Pulley BoltDrive Pulley Bolt
-
27516005503 DecalDecal
-
29417127346 Fixed Flange Ass'y. Includes 29 To 33Fixed Flange Ass'y. Includes 29 To 33
-
30417127189 RollerRoller
-
31417127294 StudStud
-
32250200009 Lock Washer 8mmLock Washer 8mm
-
33250400061 Spring Pin 3 x 18Spring Pin 3 x 18
-
34417127231 Sliding Flange Ass'y. Includes 34 To 35Sliding Flange Ass'y. Includes 34 To 35
-
35293370049 CirclipCirclip
-
36417127148 Cam Ass'y. Includes 36 To 37Cam Ass'y. Includes 36 To 37
-
37293370049 CirclipCirclip
-
38417127243 Spring, White / White (476-705N)Spring, White / White (476-705N)
-
39250000283 Torx Screw M8 x 25, Scotch GripTorx Screw M8 x 25, Scotch Grip
-
40415129604 Pulley Adjuster Ass'y. Includes 40 To 43Pulley Adjuster Ass'y. Includes 40 To 43
-
41205052544 Socket Screw M5 x 25Socket Screw M5 x 25
-
42234051410 Flat Washer M5Flat Washer M5
-
43232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
44417127155 WasherWasher
-
45517302322 Strength WasherStrength Washer
-
46207287544 Hex. Cap Screw M8 x 75Hex. Cap Screw M8 x 75
-
47619600013 Loctite 8151 (Antiseize), 400ml SprayLoctite 8151 (Antiseize), 400ml Spray
-
48417300265 Spacer. (Adjustment Part, Use If Needed)Spacer. (Adjustment Part, Use If Needed)
-
49504112000 Shim. (Adjustment Part, Use If Needed)Shim. (Adjustment Part, Use If Needed)
-
50414860700 Drive BeltDrive Belt
-
51516003919 Warning LabelWarning Label
-
52417300382 Belt GuardBelt Guard
-
53417300380 ReinforcementReinforcement
-
54390909200 RivetRivet
-
55417300381 GuideGuide
-
56417300356 Side ProtectorSide Protector
-
57293150103 Pop Rivet 3/16Pop Rivet 3/16
-
58417300363 Belt Guard BracketBelt Guard Bracket
-
59417300451 BracketBracket
-
60518325626 Brake Hose CoverBrake Hose Cover
-
61293150163 RivetRivet
-
62114045200 Hair PinHair Pin
-
63517281905 Drive Belt BracketDrive Belt Bracket
-
64390909100 RivetRivet
-
65516005511 Decal BeltDecal Belt
-
66512060745 Support / Belt Guard BracketSupport / Belt Guard Bracket
-
67207162044 Screw M6 x 20Screw M6 x 20
-
68233261414 Nut M6Nut M6
