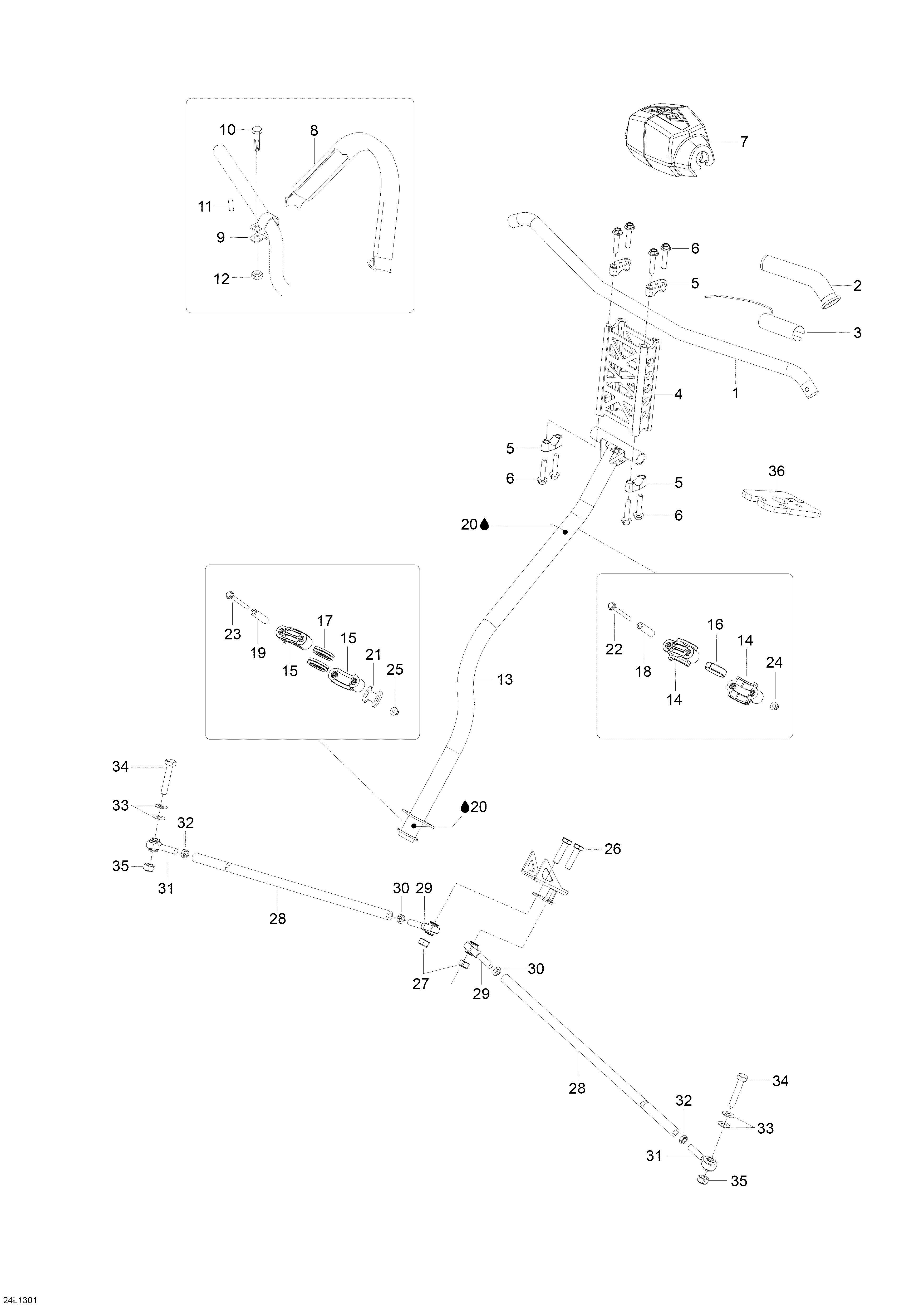

07- Steering System для BRP Lynx 59 YETI 550 - 2013
-
№АртикулНазвание
-
1506152399 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152467 Heated Film, 25WHeated Film, 25W
-
4860200821 ExtensionExtension
-
5506152395 Steering SupportSteering Support
-
6250000285 Hex Flanged Screw M8 x 40Hex Flanged Screw M8 x 40
-
7506152265 Steering PadSteering Pad
-
8506152115 Steering StrapSteering Strap
-
9506152536 Steering Strap SupportSteering Strap Support
-
10207662084 Screw M6 x 20Screw M6 x 20
-
11506152156 BushingBushing
-
12233261494 Nut M6Nut M6
-
13506152586 Main Tube PaintMain Tube Paint
-
14506152508 Half-Housing UpperHalf-Housing Upper
-
15506152217 Half-Housing LowerHalf-Housing Lower
-
16506152509 Vibrat. Gasket UpperVibrat. Gasket Upper
-
17506152518 Vibrat. Gasket LowerVibrat. Gasket Lower
-
18506152297 Housing BushingHousing Bushing
-
19506152388 Housing BushingHousing Bushing
-
21506152389 Stopper PlateStopper Plate
-
22207667086 Screw Hex.Flange M6 x 70Screw Hex.Flange M6 x 70
-
23207686544 Screw Hex.Flange M8 x 65Screw Hex.Flange M8 x 65
-
24233261416 Nut Elastic Flange M6Nut Elastic Flange M6
-
25233281414 Nut Elastic Flange M8Nut Elastic Flange M8
-
26207004044 Screw Hex.Cap M10 x 40Screw Hex.Cap M10 x 40
-
27232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
28506152436 Tie RodTie Rod
-
29506152081 Ball Joint (LH Thread)Ball Joint (LH Thread)
-
30250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
31506152019 Ball Joint (RH Thread)Ball Joint (RH Thread)
-
32732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
33506152194 WasherWasher
-
34207004544 Screw Hex. Cap M10 x 45Screw Hex. Cap M10 x 45
-
35232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
36506152404 CushionCushion
