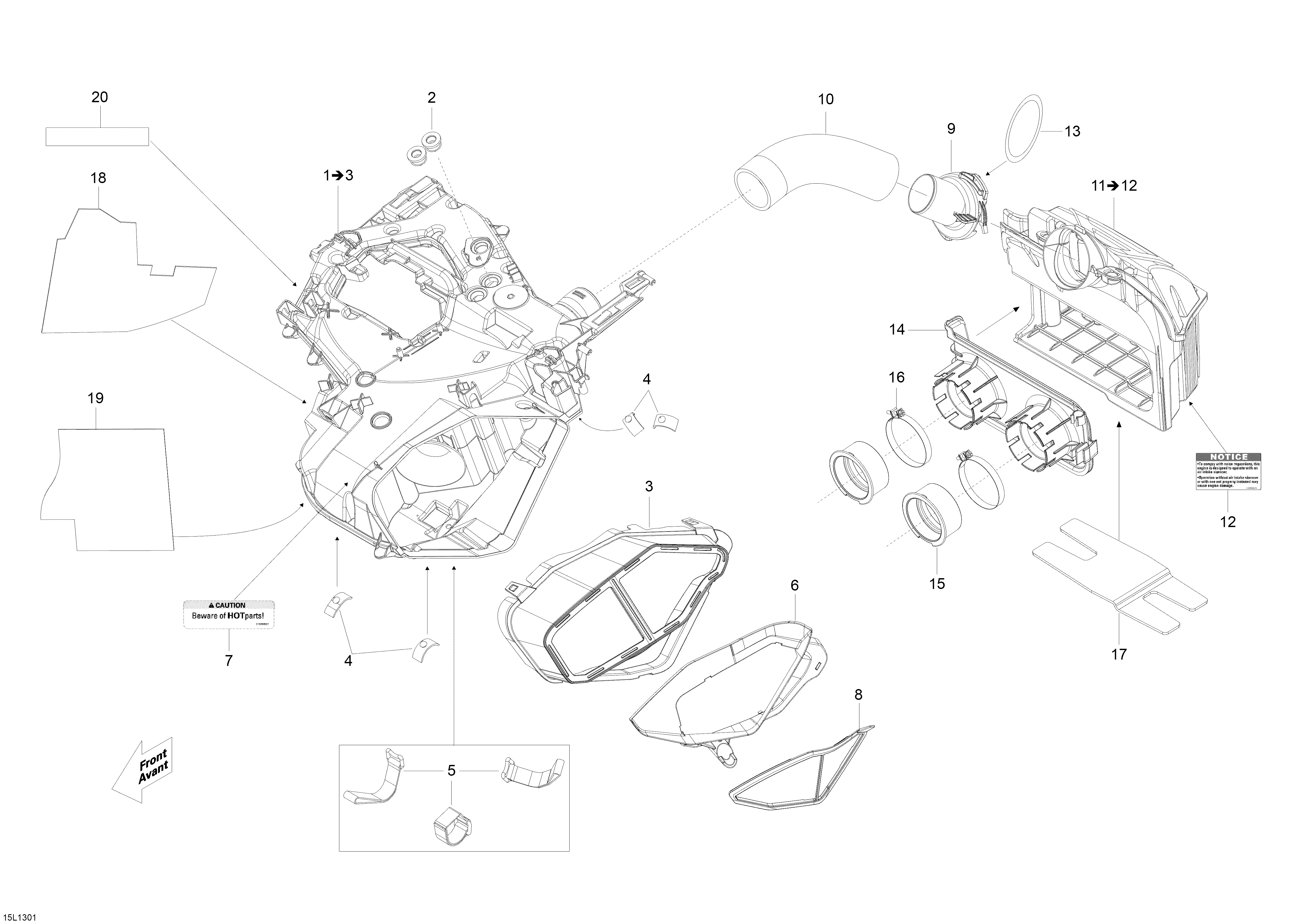

02- Air Intake System для BRP Lynx 59 YETI 550 - 2013
-
№АртикулНазвание
-
1508000715 Secondary Chamber Ass'y. Includes 1 To 3Secondary Chamber Ass'y. Includes 1 To 3
-
2508000574 GrommetGrommet
-
3508000595 Air Intake FilterAir Intake Filter
-
4508000537 Rubber StopperRubber Stopper
-
5508000532 Velcro StripVelcro Strip
-
6508000687 AdapterAdapter
-
7516004651 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
8508000609 Air FilterAir Filter
-
9508000562 LinkLink
-
10508000406 TubeTube
-
11508000680 Primary Chamber Ass'y. Includes 11 To 12Primary Chamber Ass'y. Includes 11 To 12
-
12516005876 Label, Air IntakeLabel, Air Intake
-
13293300115 O-RingO-Ring
-
14508000564 Adapter PlateAdapter Plate
-
15508000594 Air Intake AdapterAir Intake Adapter
-
16508000369 ClampClamp
-
17508000674 Insulated FoamInsulated Foam
-
18508000684 Heat ShieldHeat Shield
-
19508000685 Heat ShieldHeat Shield
-
2044110 Al-Tape (0,25m)Al-Tape (0,25m)
