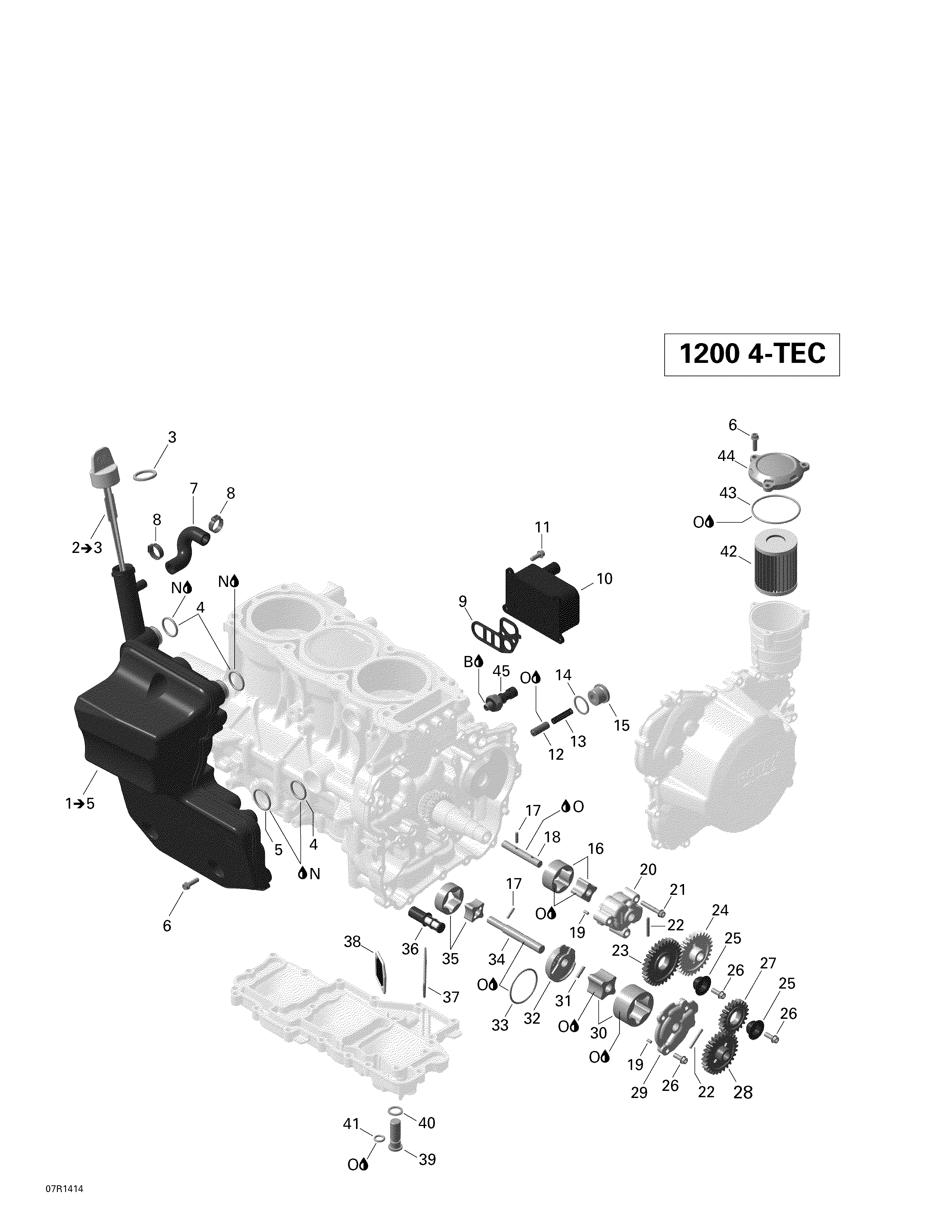

01_Engine Lubrication для BRP Lynx Adventure GT 1200 4-TEC - 2014
-
№АртикулНазвание
-
1420656386 Oil Tank Ass'y. Includes 1 to 5Oil Tank Ass'y. Includes 1 to 5
-
2420856661 Oil Dipstick. Includes 2 to 3Oil Dipstick. Includes 2 to 3
-
3420431790 Gasket RingGasket Ring
-
4420931634 O-Ring 23 X 3O-Ring 23 X 3
-
5420430068 O-Ring 26,7 X 3O-Ring 26,7 X 3
-
6420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
7420460021 Air Vent LineAir Vent Line
-
8420951273 ClampClamp
-
9420431283 GasketGasket
-
10420891912 Oil RadiatorOil Radiator
-
11420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
12420256510 Pressure Regulating PistonPressure Regulating Piston
-
13420239445 SpringSpring
-
14420650465 Gasket RingGasket Ring
-
15420640278 Screw Plug M22 X 1.5Screw Plug M22 X 1.5
-
16420256681 Oil Pump Rotor, SuctionOil Pump Rotor, Suction
-
17420232731 Needle PinNeedle Pin
-
18420837911 Oil Pump ShaftOil Pump Shaft
-
19420929075 Needle PinNeedle Pin
-
20420611861 Oil Pump HousingOil Pump Housing
-
21420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
22420232431 Needle PinNeedle Pin
-
23420835055 Idle Gear, 31 TeethIdle Gear, 31 Teeth
-
24420834882 Oil Pump Gear, 29 TeethOil Pump Gear, 29 Teeth
-
25420947390 Graduated SpacerGraduated Spacer
-
26420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
27420835051 Idle Gear, 22 TeethIdle Gear, 22 Teeth
-
28420834885 Oil Pump Gear, 28 TeethOil Pump Gear, 28 Teeth
-
29420611980 Oil Pump CoverOil Pump Cover
-
30420256830 Oil Pump RotorOil Pump Rotor
-
31420632220 Needle PinNeedle Pin
-
32420611950 Oil Pump CoverOil Pump Cover
-
33420631830 O-RingO-Ring
-
34420837915 Oil Pump ShaftOil Pump Shaft
-
35420256670 Oil Pump Rotor, PressureOil Pump Rotor, Pressure
-
36420856658 Oil SieveOil Sieve
-
37420856650 Oil SieveOil Sieve
-
38420856655 Oil SieveOil Sieve
-
39420941841 Screw Plug M14 X 1.5Screw Plug M14 X 1.5
-
40420230500 Gasket RingGasket Ring
-
41420430115 O-RingO-Ring
-
42420956123 Oil FilterOil Filter
-
43420650500 O-RingO-Ring
-
44420210418 Oil Filter CoverOil Filter Cover
-
45420256915 Oil Pressure SwitchOil Pressure Switch
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
N413707000 Dow Corning 111, 150 gDow Corning 111, 150 g
-
O293600112 Engine OilEngine Oil
