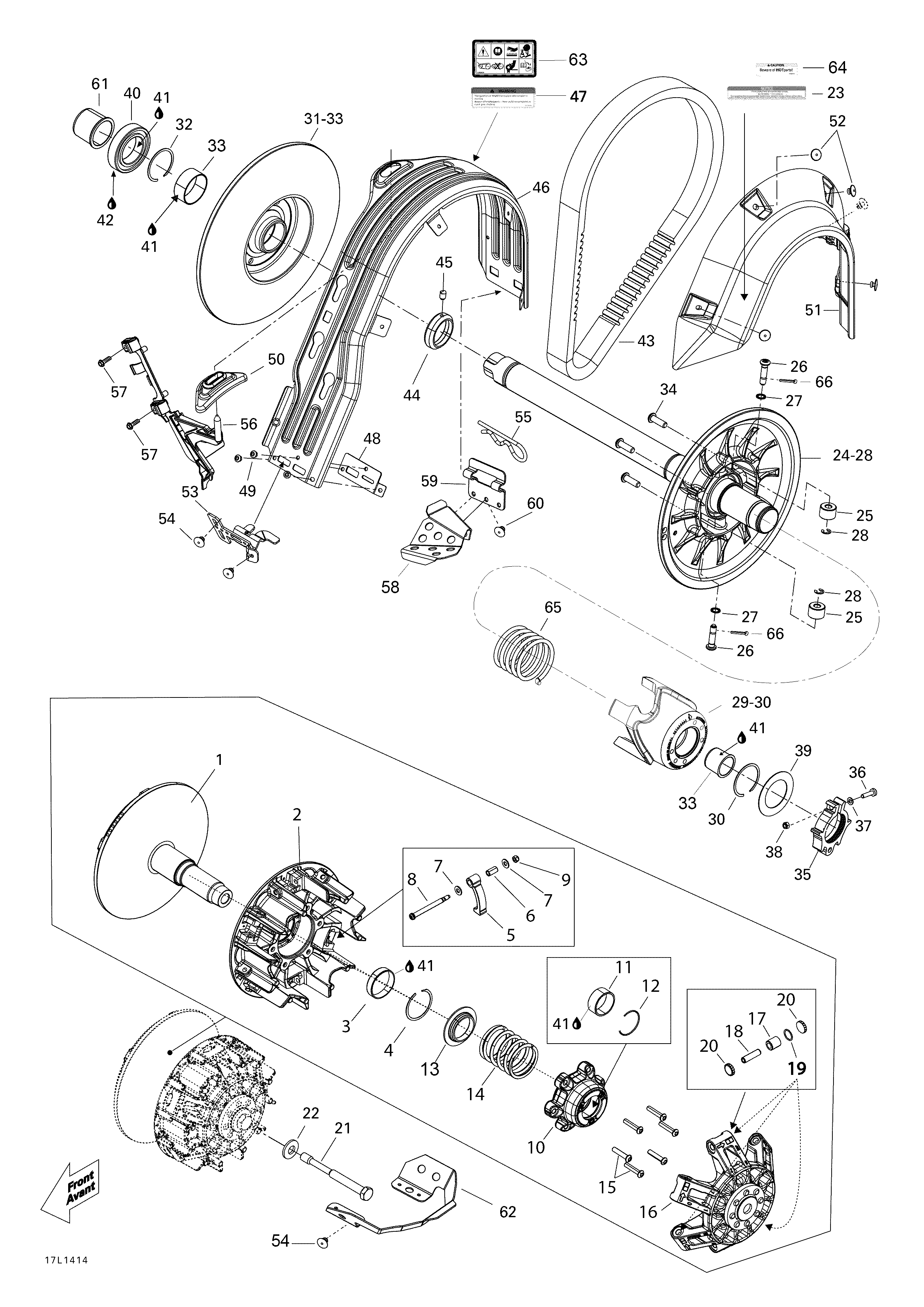

05_Pulley System для BRP Lynx Adventure GT 1200 4-TEC - 2014
-
№АртикулНазвание
-
1417223867 FLANGE FIX ASSYFLANGE FIX ASSY
-
2417223763 FLANGE-SLID.ASSYFLANGE-SLID.ASSY
-
3417222758 BushingBushing
-
4293370037 CirclipCirclip
-
5417223679 RAMP 735 assy. Includes 5-6RAMP 735 assy. Includes 5-6
-
6293350078 JOURNALBEARINGJOURNALBEARING
-
7417223660 WASHER-STOPPERWASHER-STOPPER
-
8417223694 AXLE-RAMPAXLE-RAMP
-
9232551414 NUT-STOP ELASTIC DIN.985NUT-STOP ELASTIC DIN.985
-
10417223650 SPRING COVERSPRING COVER
-
11293350079 BearingBearing
-
12293370065 CirclipCirclip
-
13417223752 SEAT-SPRINGSEAT-SPRING
-
14417223751 CLUTCH SPRING Yellow/Red. 100/155Nm.CLUTCH SPRING Yellow/Red. 100/155Nm.
-
15250000580 SCREW TORX BUTTON HD ISO 7380 S.GRIPSCREW TORX BUTTON HD ISO 7380 S.GRIP
-
16417223865 GOVERNOR CUPGOVERNOR CUP
-
17417223767 ROLLERROLLER
-
18417223257 AXLE ROLLERAXLE ROLLER
-
19293300169 O-RINGO-RING
-
20417223919 SHOE-SLIDERSHOE-SLIDER
-
21417300432 Drive Pulley BoltDrive Pulley Bolt
-
22250200144 Spring Washer 14 mmSpring Washer 14 mm
-
23516005503 Decal notice, Drive pulley boltDecal notice, Drive pulley bolt
-
24417127423 Fixed Flange Ass'yFixed Flange Ass'y
-
24417127408 Fixed Flange Ass'y. CE ModelsFixed Flange Ass'y. CE Models
-
25417127189 Roller, VespelRoller, Vespel
-
26417127294 StudStud
-
27250200009 Lock Washer 8 mmLock Washer 8 mm
-
29417127412 Cam Ass'y (44/40?)Cam Ass'y (44/40?)
-
29417127413 Cam Ass'y (37/45?). CE modelsCam Ass'y (37/45?). CE models
-
30293370049 CirclipCirclip
-
31417127317 Sliding Flange Ass'ySliding Flange Ass'y
-
32293370049 CirclipCirclip
-
33417127000 BushingBushing
-
34250000283 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
35415129604 Pulley adjuster ass'yPulley adjuster ass'y
-
36205052544 Phillips Screw M5 X 20Phillips Screw M5 X 20
-
37234051410 Flat Washer M5Flat Washer M5
-
38232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
39417127155 WasherWasher
-
40504152574 BearingBearing
-
41413703100 Loctite 609Loctite 609
-
42293800070 Loctite 767 antiseize lubricantLoctite 767 antiseize lubricant
-
43417300391 Drive BeltDrive Belt
-
44417300419 Bearing retainerBearing retainer
-
45417127203 Set Screw M6X6 DIN 916Set Screw M6X6 DIN 916
-
46417300382 Belt GuardBelt Guard
-
47516004649 Security label, Belt GuardSecurity label, Belt Guard
-
48417300380 ReinforcementReinforcement
-
49390909200 Avex RivetAvex Rivet
-
50417300381 Guide rubberGuide rubber
-
51417300356 Side ProtectorSide Protector
-
52293150103 Pop RivetPop Rivet
-
53417300373 BracketBracket
-
54293150104 RivetRivet
-
55114045200 Hair PinHair Pin
-
56417300396 Belt Guard BracketBelt Guard Bracket
-
57241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
58518325626 Brake Hose CoverBrake Hose Cover
-
59417300363 BracketBracket
-
60293150163 Rivet HucklocRivet Huckloc
-
61504153054 Protective RubberProtective Rubber
-
63516003919 Warning Label (EU Models)Warning Label (EU Models)
-
64516004651 Decal Hot PartsDecal Hot Parts
-
65417127039 Spring, Black. CE ModelsSpring, Black. CE Models
-
65417127427 Spring, RoseSpring, Rose
-
66250400061 Spring pinSpring pin
