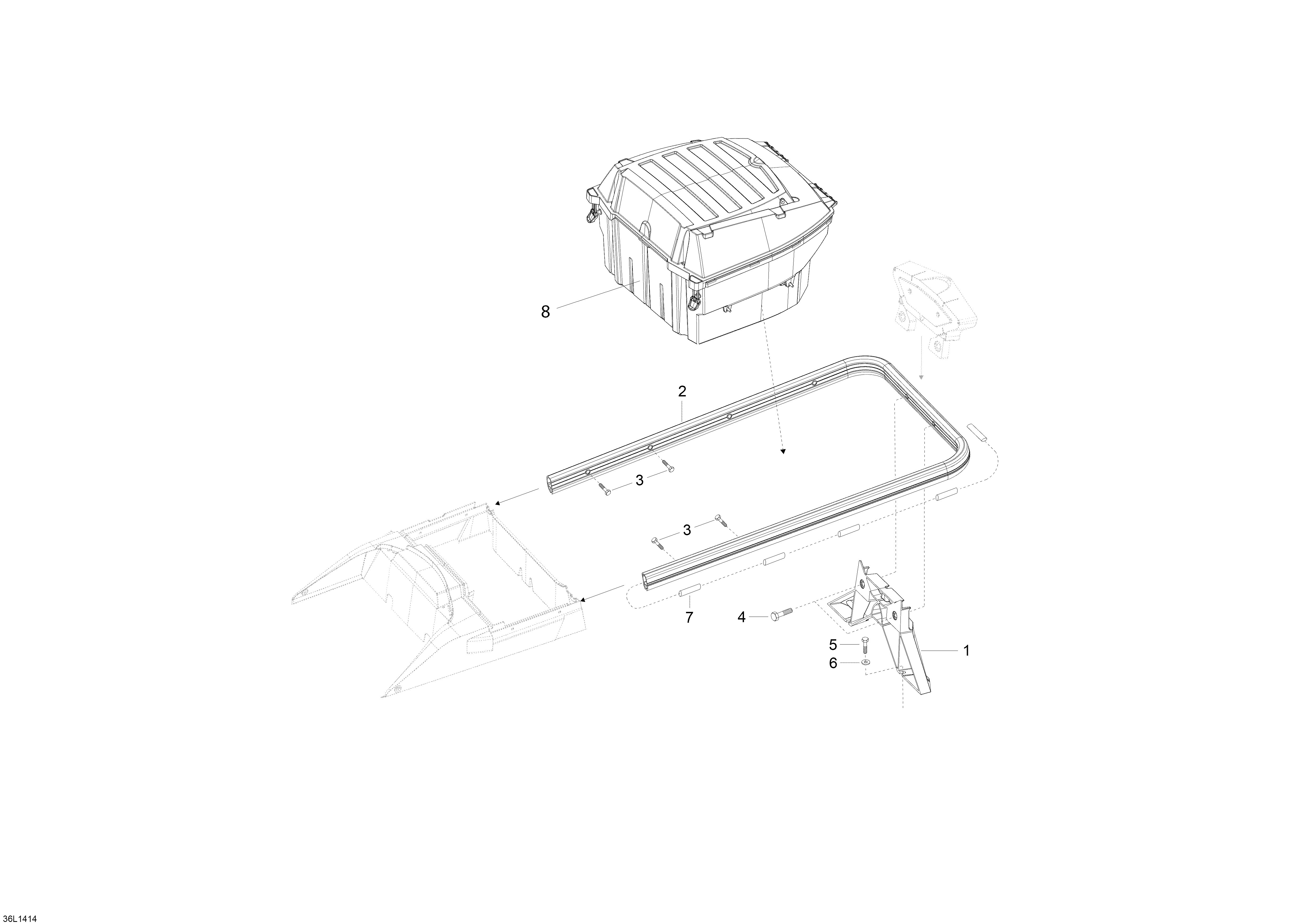

09- Cargo Rack для BRP Lynx Adventure GT 1200 4-TEC - 2014
-
№АртикулНазвание
-
1511000559 Rear Light SupportRear Light Support
-
2511000853 Rack Bar, brownRack Bar, brown
-
3207561644 Screw Hex. Flange M6 x 16Screw Hex. Flange M6 x 16
-
4207663534 Screw Hex. Flange M6 x 35Screw Hex. Flange M6 x 35
-
5207662056 Screw flange M6 x 20Screw flange M6 x 20
-
7511000657 Support HoseSupport Hose
-
8619560023 Cargo box, black, Opt.Cargo box, black, Opt.
