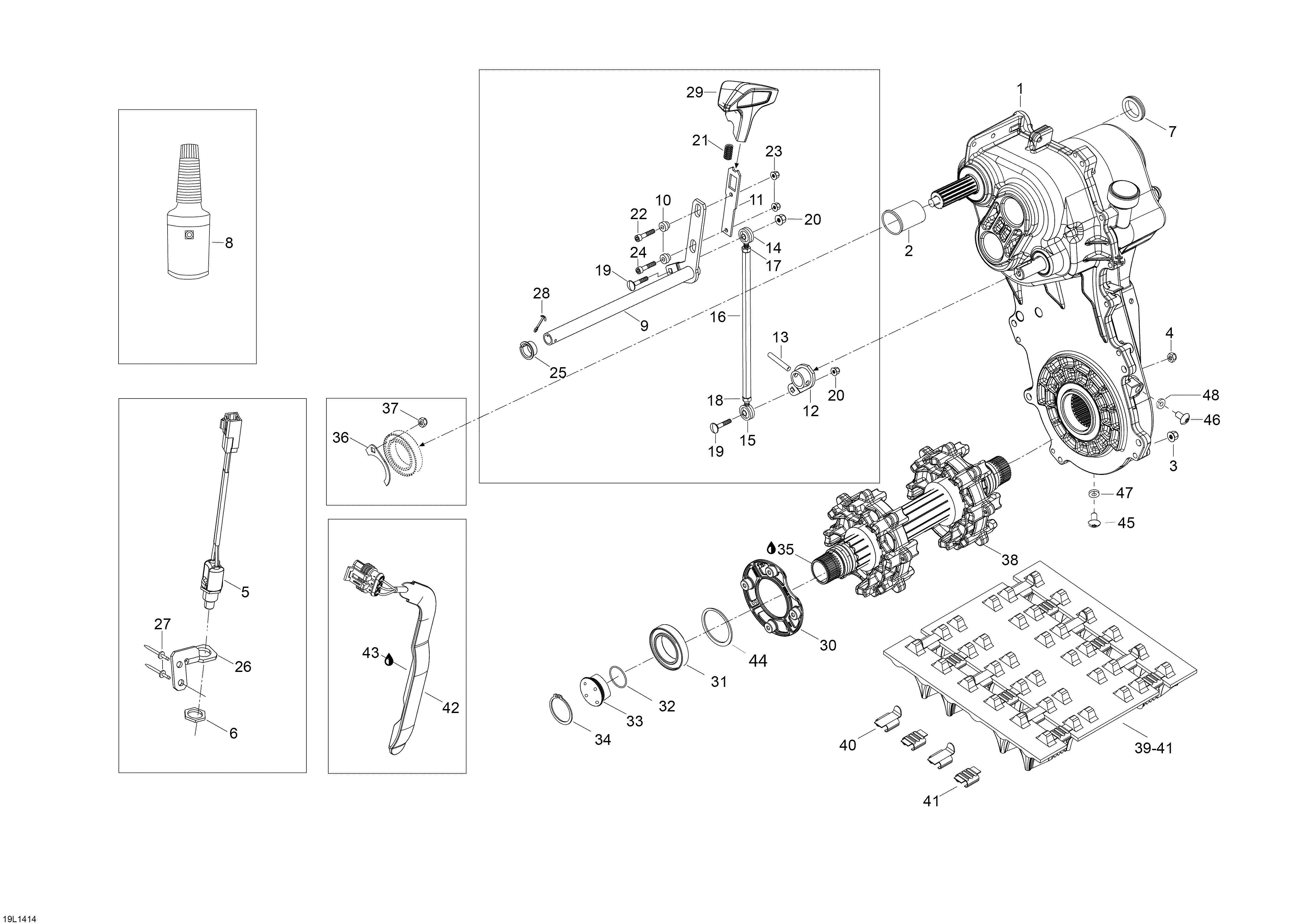

05- Drive System для BRP Lynx Adventure GT 1200 4-TEC - 2014
-
№АртикулНазвание
-
1504153284 Gear box. ECS modelsGear box. ECS models
-
1504153220 Gear box. EU, CE modelsGear box. EU, CE models
-
2504153054 RubberRubber
-
3233281414 Elastic flanged nut M8Elastic flanged nut M8
-
4232581414 Elastic stop nut M8Elastic stop nut M8
-
5515176472 Switch kompl.Switch kompl.
-
6250000373 NutNut
-
8619590182 Gearbox oil 12 x 355mlGearbox oil 12 x 355ml
-
9504152887 ShifterShifter
-
10504152787 SleeveSleeve
-
11504152831 Shifter armShifter arm
-
12504152834 Lever weldLever weld
-
1341012 PinPin
-
14707000690 Ball joint L.HBall joint L.H
-
15707000689 Ball joint R.HBall joint R.H
-
16504152836 RodRod
-
17232066414 L.H. NutL.H. Nut
-
18232061414 NutNut
-
19207762044 Bolt carriage M6 x 20Bolt carriage M6 x 20
-
20232561434 Elastic stop nut M6Elastic stop nut M6
-
21504152882 SpringSpring
-
22205052544 Screw M5 x 25Screw M5 x 25
-
23233251434 Nut M5Nut M5
-
24732600030 Screw formingScrew forming
-
25504152890 BearingBearing
-
26504152902 Sensor bracketSensor bracket
-
27293150163 RivetRivet
-
28250400035 PinPin
-
29504152837 Shifter handleShifter handle
-
30504152949 Bearing housingBearing housing
-
31293350059 BearingBearing
-
32293300122 O-ringO-ring
-
33504152619 CapCap
-
34504152572 CirclipCirclip
-
35293550033 Grease 10 xz 400 gGrease 10 xz 400 g
-
36504152974 Housing bearingHousing bearing
-
37232581414 Elastic stop nut M8Elastic stop nut M8
-
38504153104 Drive axle ass'yDrive axle ass'y
-
38504153106 Drive axle ass'y (CE). CE ModelsDrive axle ass'y (CE). CE Models
-
39504152817 Track ass'y (500 x 3923 x 32)Track ass'y (500 x 3923 x 32)
-
39504153036 Track ass'y (500 x 3923 x 32, Studded). CE ModelsTrack ass'y (500 x 3923 x 32, Studded). CE Models
-
405318323 GuideGuide
-
42504152896 SensorSensor
-
43293800066 Loctite 5900Loctite 5900
-
44504153207 ShimShim
-
45619230037 Allen Screw M8 x 10Allen Screw M8 x 10
-
46619230038 Allen Screw M10 x 16Allen Screw M10 x 16
-
47615580812 Gasket RingGasket Ring
-
48619230047 Seal RingSeal Ring
