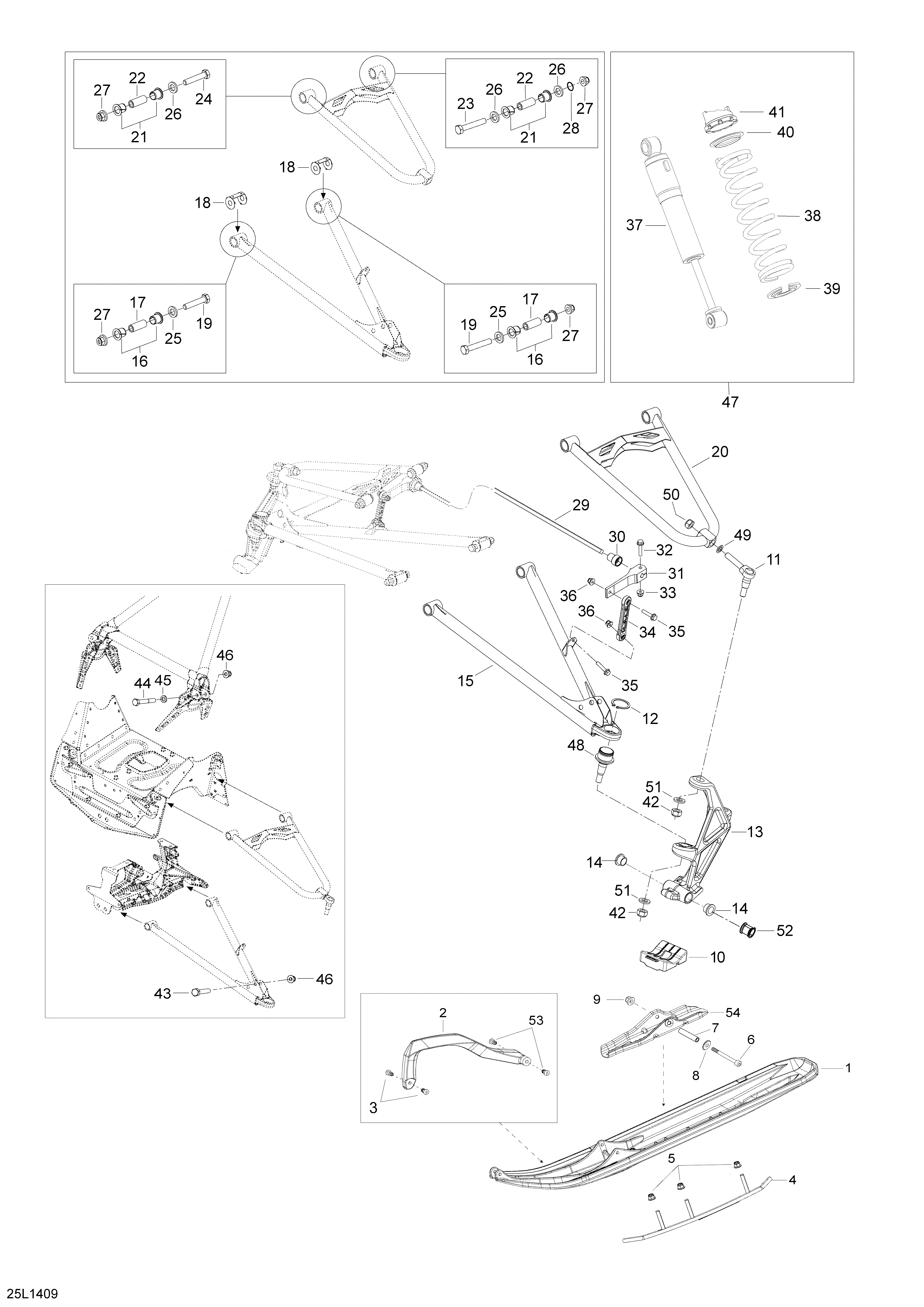

07- Front Suspension And Ski для BRP Lynx Adventure GT 1200 4-TEC - 2014
-
№АртикулНазвание
-
1505073154 Ski BLADE (Black)Ski BLADE (Black)
-
2505072976 Plastic handle, Black BLADEPlastic handle, Black BLADE
-
3505071812 RetainerRetainer
-
4505073493 Runner BLADE 3 carb.. Not pairRunner BLADE 3 carb.. Not pair
-
4605349378 Runner kit BLADE 5 carb.(Opt.). PairRunner kit BLADE 5 carb.(Opt.). Pair
-
533074 Elastic flanged nut M10Elastic flanged nut M10
-
6230003044 Socket head screw M10 x 100Socket head screw M10 x 100
-
7506133300 Axle skiAxle ski
-
8732900049 WasherWasher
-
9233201414 Elastic stop nut M10Elastic stop nut M10
-
10505073411 Rubber damperRubber damper
-
11505072257 Upper Ball JointUpper Ball Joint
-
12293370035 CirclipCirclip
-
13505072959 LH Ski Leg, blackLH Ski Leg, black
-
13505072960 RH Ski Leg, blackRH Ski Leg, black
-
14505072690 BushingBushing
-
15505072664 RH Lower ArmRH Lower Arm
-
15505072665 LH Lower ArmLH Lower Arm
-
16505073330 CushionCushion
-
17505072393 BushingBushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
20505072374 Upper ArmUpper Arm
-
21505073329 Swivel BushingSwivel Bushing
-
22505072143 Aluminum BushingAluminum Bushing
-
23250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
24250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
29505072602 Stabilisator barStabilisator bar
-
30505072064 BushingBushing
-
31505072394 Stabilisator LeverStabilisator Lever
-
32207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
33233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34505072204 Double Ball Joint LinkDouble Ball Joint Link
-
35207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
36233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37505073346 Front Shock (ECS). ECS modelsFront Shock (ECS). ECS models
-
37505073343 Front ShockFront Shock
-
37505073342 Front Shock (CE). CE modelsFront Shock (CE). CE models
-
38505072882 Spring 16 Nm.Spring 16 Nm.
-
38505072879 Spring 18 Nm. (CE / ECS models). CE/ECS modelsSpring 18 Nm. (CE / ECS models). CE/ECS models
-
39706200881 Spring SeatSpring Seat
-
40503191872 Guide-springGuide-spring
-
41505070150 CamCam
-
42250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
43207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
44207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
45503189564 WasherWasher
-
46233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
48505072682 Lower Ball JointLower Ball Joint
-
49503189276 WasherWasher
-
50250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
51234021410 Flat Washer 12 mmFlat Washer 12 mm
-
52505071999 SpacerSpacer
-
53505072133 RetainerRetainer
-
54505073240 Ski bridge weldSki bridge weld
