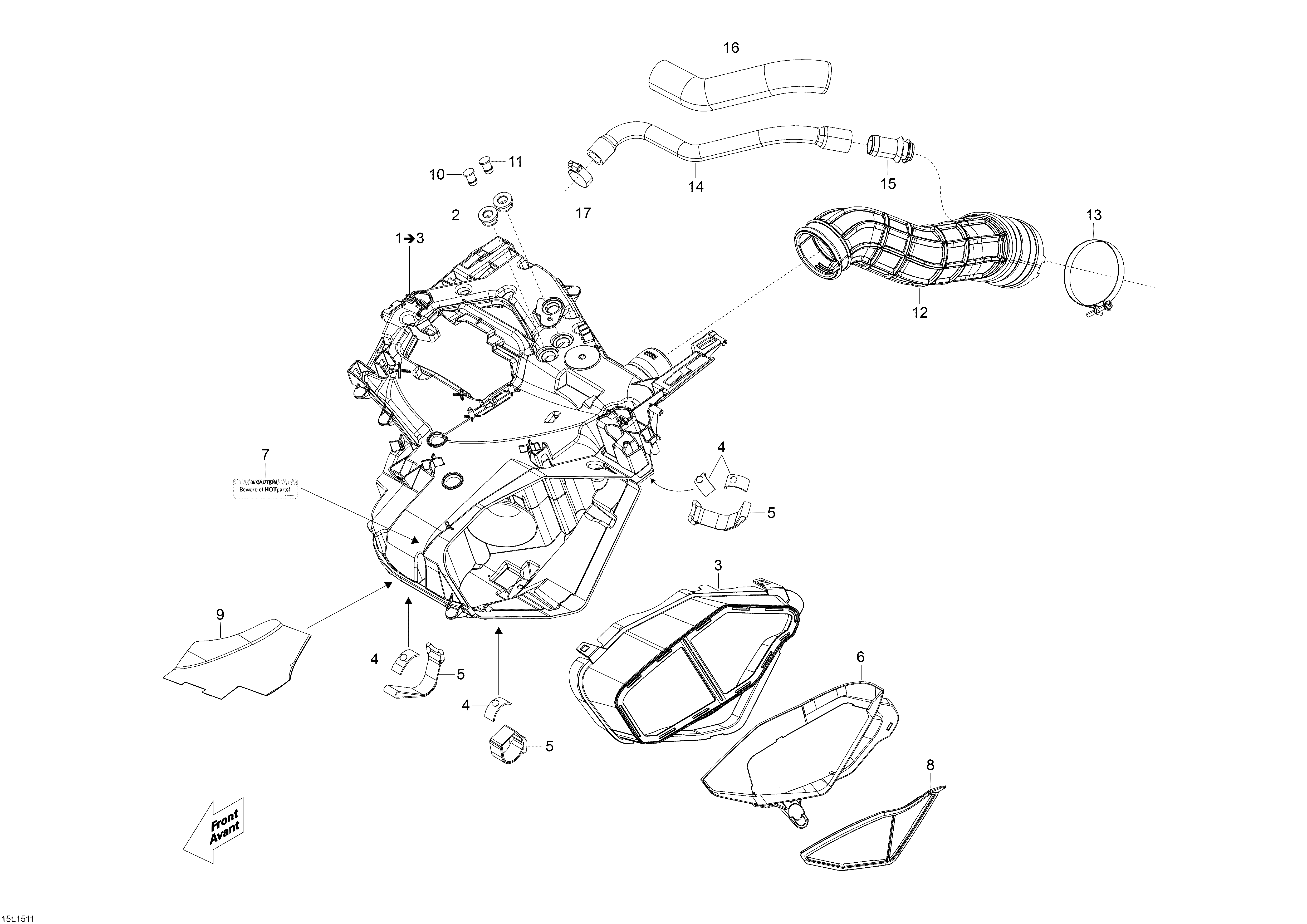

02- Air Intake System для BRP Lynx Adventure GT 900 ACE - 2015
-
№АртикулНазвание
-
1508000715 Secondary Chamber Ass'y. Includes 1 To 3Secondary Chamber Ass'y. Includes 1 To 3
-
2508000574 GrommetGrommet
-
3508000595 Air FilterAir Filter
-
4508000537 Rubber StopperRubber Stopper
-
5508000532 Velcro StripVelcro Strip
-
6508000687 AdapterAdapter
-
7516004651 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
8508000609 Air FilterAir Filter
-
9508000622 Heat ShieldHeat Shield
-
10572092900 CapCap
-
11572092900 CapCap
-
12508000773 Intake HoseIntake Hose
-
13293650229 ClampClamp
-
14508000746 Vent HoseVent Hose
-
15273000234 BreatherBreather
-
16508000648 Insul. TubeInsul. Tube
-
17293650172 Hose ClampHose Clamp
