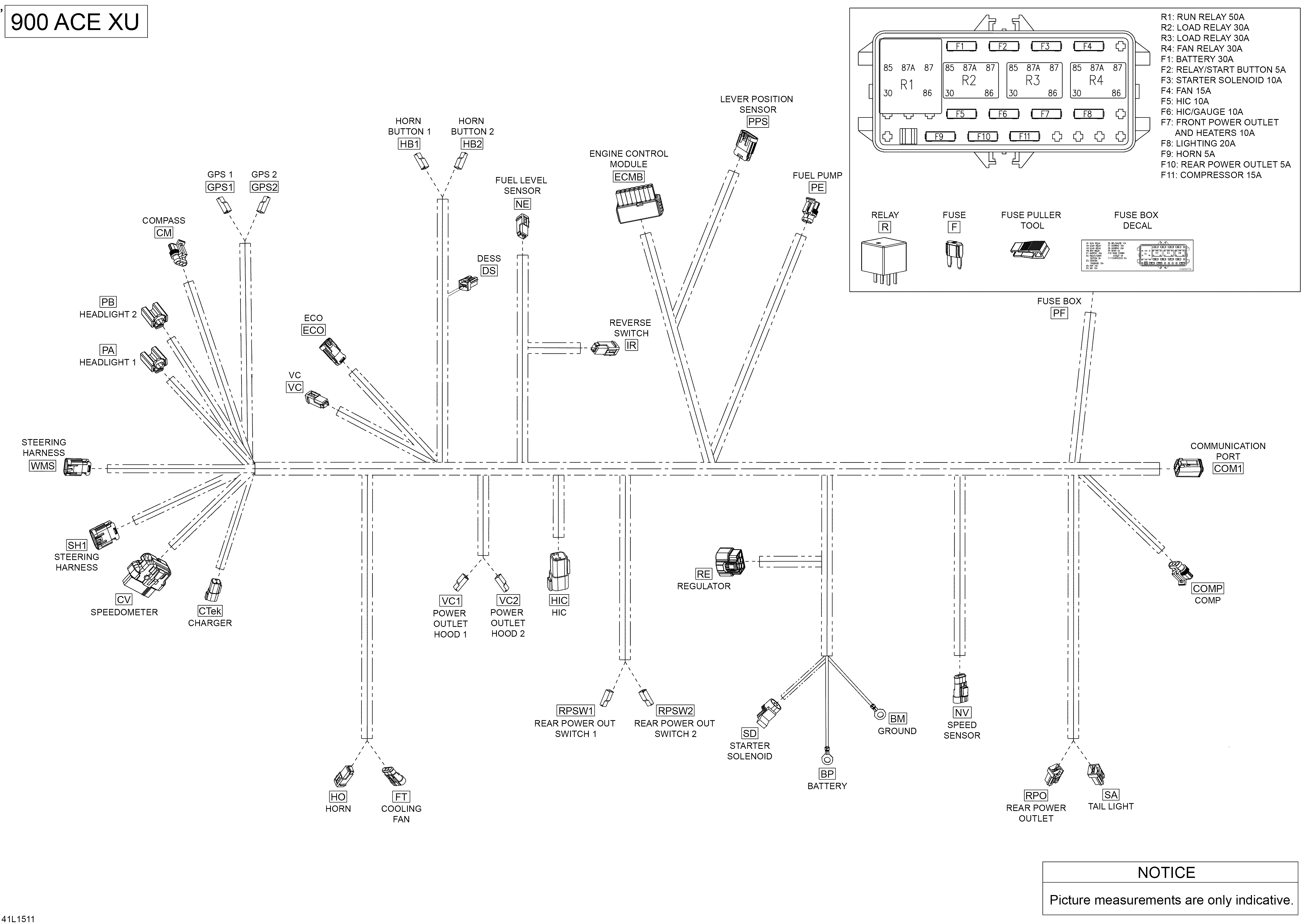

10- Electrical Harness для BRP Lynx Adventure GT 900 ACE - 2015
-
№АртикулНазвание
-
1515177482 Main Harness. Includes 1 To VMSMain Harness. Includes 1 To VMS
-
2515175442 Tubing 6mmTubing 6mm
-
2409901700 Tubing 9mmTubing 9mm
-
2415079900 Tubing 11mmTubing 11mm
-
2409901800 Tubing 13mmTubing 13mm
-
2415080000 Tubing 16mmTubing 16mm
-
2409901600 Tubing 19mmTubing 19mm
-
2409902200 Tubing 25mmTubing 25mm
-
BM278000992 Open BarrelOpen Barrel
-
BP278000992 Open BarrelOpen Barrel
-
CM409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
CM278001014 Female TerminalFemale Terminal
-
CM515176621 Wire SealWire Seal
-
CM293750002 Tie-Rap 130mmTie-Rap 130mm
-
COM1515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
COM1515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COM1278000632 Female TerminalFemale Terminal
-
COM1293000052 Sealing CapSealing Cap
-
COMP409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
COMP278001014 Female TerminalFemale Terminal
-
COMP515176621 Wire SealWire Seal
-
CTEK278001674 Female HousingFemale Housing
-
CTEK278001672 LockLock
-
CTEK515175568 Male TerminalMale Terminal
-
CV515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CV515175802 Retainer BlockRetainer Block
-
CV515175803 Wire SealWire Seal
-
CV515175804 Female HousingFemale Housing
-
CV515175805 Lock TabLock Tab
-
CV515175806 Female TerminalFemale Terminal
-
CV515175812 PlugPlug
-
CV710000399 Female HousingFemale Housing
-
DS515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
DS515175231 Female TerminalFemale Terminal
-
ECMB710001967 Female Housing, 48 CircuitsFemale Housing, 48 Circuits
-
ECMB710001591 CoverCover
-
ECMB710001589 Female TerminalFemale Terminal
-
ECMB710001590 Female TerminalFemale Terminal
-
ECMB710001592 PlugPlug
-
ECMB710001593 PlugPlug
-
ECO710002593 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
F710000742 Fuse 5AFuse 5A
-
F710000743 Fuse 7,5AFuse 7,5A
-
F710000744 Fuse 10AFuse 10A
-
F710000745 Fuse 15AFuse 15A
-
F710000746 Fuse 20AFuse 20A
-
F710000747 Fuse 30AFuse 30A
-
FT278000217 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
FT278000222 Male TerminalMale Terminal
-
FT409004300 Male TerminalMale Terminal
-
FT278001065 Wire SealWire Seal
-
GPS1409010400 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
GPS1409010100 Female TerminalFemale Terminal
-
GPS2409010400 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
GPS2409010100 Female TerminalFemale Terminal
-
HB1409010400 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
HB1409010100 Female TerminalFemale Terminal
-
HB2409010400 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
HB2409010100 Female TerminalFemale Terminal
-
HIC278000739 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
HIC278000632 Female TerminalFemale Terminal
-
HIC278000738 Male Lock, 4 CircuitsMale Lock, 4 Circuits
-
HIC293000052 Sealing CapSealing Cap
-
HO515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
HO515175231 Female TerminalFemale Terminal
-
IR515176296 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
IR515175231 Female TerminalFemale Terminal
-
NE515175654 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
NE515175232 Male TerminalMale Terminal
-
NV710000568 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
NV515176164 Male TerminalMale Terminal
-
NV710000992 ClipClip
-
NV515176621 Wire SealWire Seal
-
PA515176908 Female HousingFemale Housing
-
PA515176909 TerminalTerminal
-
PB515176908 Female HousingFemale Housing
-
PB515176909 TerminalTerminal
-
PE710001132 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
PE710001134 Female TerminalFemale Terminal
-
PE710001133 LockLock
-
PE710000643 Wire SealWire Seal
-
PF710001026 Fuse Box CoverFuse Box Cover
-
PF415129856 Fuse Box Base Ass?yFuse Box Base Ass?y
-
PF710000836 Female TerminalFemale Terminal
-
PF710000837 Female TerminalFemale Terminal
-
PF278000999 Wire SealWire Seal
-
PF415128501 Wire SealWire Seal
-
PF710000840 PlugPlug
-
PF710000781 Fuse Puller ToolFuse Puller Tool
-
PF278002172 FoamFoam
-
PF516006778 Decal, Fuse BoxDecal, Fuse Box
-
R515176775 Relay 50ARelay 50A
-
R515176774 Relay 30ARelay 30A
-
RE710000879 Female Housing, 3 circuitsFemale Housing, 3 circuits
-
RE710000877 Female TerminalFemale Terminal
-
RE710000882 CapCap
-
RE710000881 SealSeal
-
RPO515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
RPO515175232 Male TerminalMale Terminal
-
RPSW1409010400 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
RPSW1409010100 Female TerminalFemale Terminal
-
RPSW2409010400 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
RPSW2409010100 Female TerminalFemale Terminal
-
SA515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SA515175231 Female TerminalFemale Terminal
-
SD515177192 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
SD278001114 Female TerminalFemale Terminal
-
SH1710001929 Male Housing, 12 CircuitMale Housing, 12 Circuit
-
VC515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
VC515175231 Female TerminalFemale Terminal
-
VC1409010400 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
VC1409010100 Female TerminalFemale Terminal
-
VC2409010400 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
VC2409010100 Female TerminalFemale Terminal
-
WMS710001927 Male Housing, 8 CircuitsMale Housing, 8 Circuits
