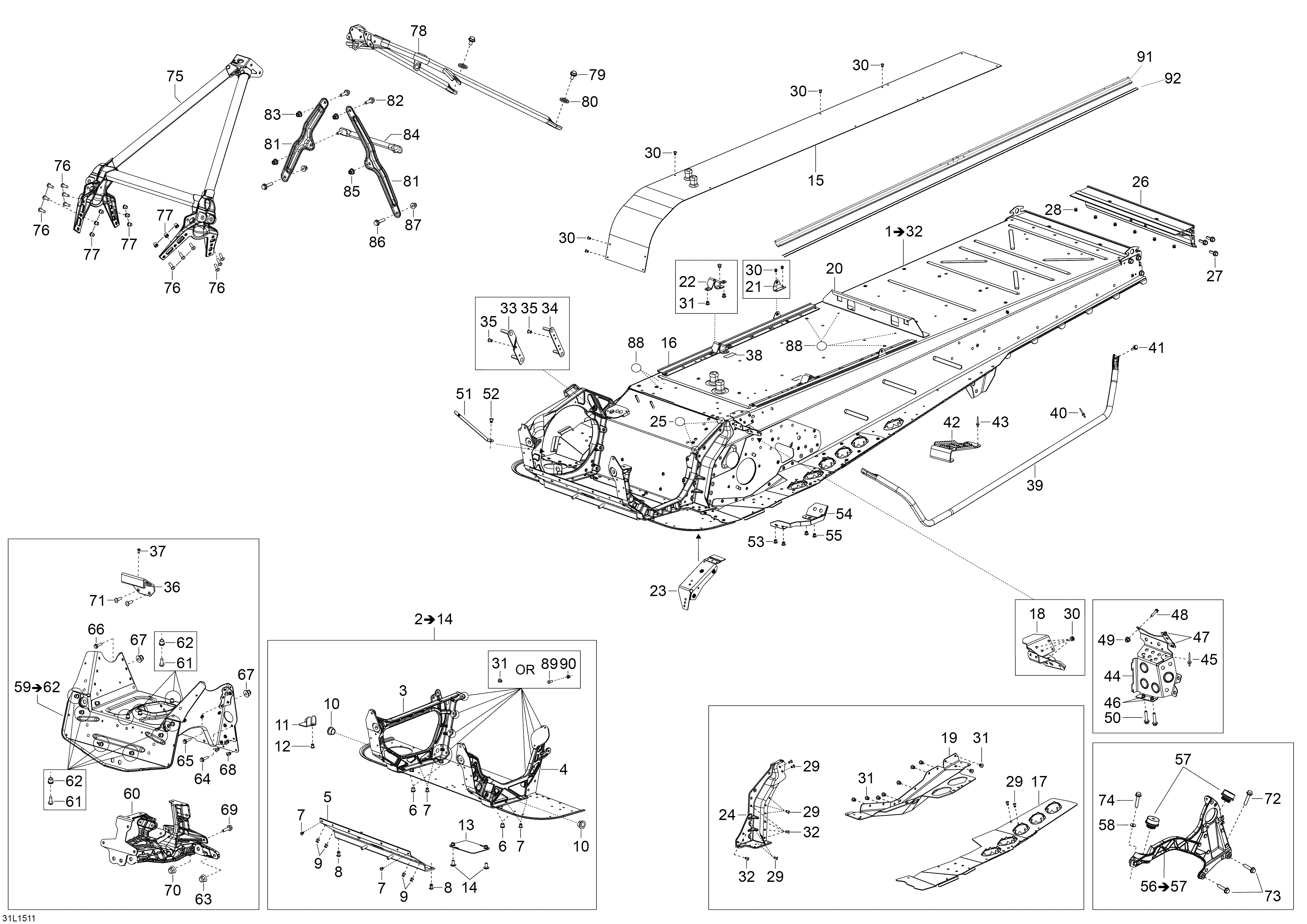

09- Frame для BRP Lynx Adventure GT 900 ACE - 2015
-
№АртикулНазвание
-
1518328658 Frame XU ACE PPS GreyFrame XU ACE PPS Grey
-
1518328355 Frame XU ACE PPS EHCS Grey. ECS2 modelFrame XU ACE PPS EHCS Grey. ECS2 model
-
2518328188 Module E. Includes 2 To 14Module E. Includes 2 To 14
-
3518326328 RH MemberRH Member
-
4518326330 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut Hexsert M8Clinch Nut Hexsert M8
-
7390909100 RivetRivet
-
8293150120 RivetRivet
-
9293150119 RivetRivet
-
10505072690 BushingBushing
-
11518327983 Muffler SupportMuffler Support
-
12293150163 RivetRivet
-
13518328317 Oil PlateOil Plate
-
14250000325 Torx Truss Screw M6 x 12Torx Truss Screw M6 x 12
-
15509000867 Tunnel RadiatorTunnel Radiator
-
16518326107 Fastening RailFastening Rail
-
17518326895 LH FootrestLH Footrest
-
17518326896 RH FootrestRH Footrest
-
18605355235 Fastening BracketFastening Bracket
-
20518325986 Battery SupportBattery Support
-
21518327457 Seat Box BracketSeat Box Bracket
-
22518326109 LH Support Tube BracketLH Support Tube Bracket
-
22518326110 RH Support Tube BracketRH Support Tube Bracket
-
23518326430 Clinch Nut PlateClinch Nut Plate
-
24518325524 LH Frame CornerLH Frame Corner
-
25518325560 Adhesive PatchAdhesive Patch
-
26518327194 Rear ProfileRear Profile
-
27207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
28293150174 RivetRivet
-
29390909100 RivetRivet
-
30390909200 RivetRivet
-
31293150119 RivetRivet
-
32293150183 RivetRivet
-
33518326123 Front Gearbox Counter PlateFront Gearbox Counter Plate
-
34518326124 Rear Gearbox Counter PlateRear Gearbox Counter Plate
-
35390402200 Pop Rivet 3/16Pop Rivet 3/16
-
36518326178 Engine SupportEngine Support
-
37293150174 RivetRivet
-
38518326357 Rubber CoverRubber Cover
-
39518326963 LH Footboard Support TubeLH Footboard Support Tube
-
39518326964 RH Footboard Support TubeRH Footboard Support Tube
-
40390909100 RivetRivet
-
41207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
42520000492 FootrestFootrest
-
43390909100 RivetRivet
-
44518327374 LH Toe Hook, blackLH Toe Hook, black
-
44518327376 RH Toe Hook, blackRH Toe Hook, black
-
45390909200 RivetRivet
-
46605636003 Clinch Nut M6Clinch Nut M6
-
47605636003 Clinch Nut M6Clinch Nut M6
-
48207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
49233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
50250000223 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
51514054828 Spring BracketSpring Bracket
-
52390909200 RivetRivet
-
56518327535 LH Brace Ass'y. Includes 56 To 57LH Brace Ass'y. Includes 56 To 57
-
57512060295 Rubber MountRubber Mount
-
58234281474 Washer-Spring ConicalWasher-Spring Conical
-
59518328391 Module S. Includes 59 To 62Module S. Includes 59 To 62
-
60518327487 SupportSupport
-
61207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
62233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
63233281414 Elastic Flange Nut M6Elastic Flange Nut M6
-
64210262080 Forming Screw M6 x 20Forming Screw M6 x 20
-
65207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
66207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
67233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
68293150163 RivetRivet
-
69207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
70233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
71207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
72207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
73207583586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
74207584044 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
75518326975 Front Member Ass'yFront Member Ass'y
-
76207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
77233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
78518326103 Upper Support TubeUpper Support Tube
-
79207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
81518326848 Upper ColumnUpper Column
-
82207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
83233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
84518326355 Upper ColumnUpper Column
-
85233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
86207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
87233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
88518325560 Adhesive PatchAdhesive Patch
-
89207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
90233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
91860200737 Radiator protector kit. Includes 91 - 92Radiator protector kit. Includes 91 - 92
