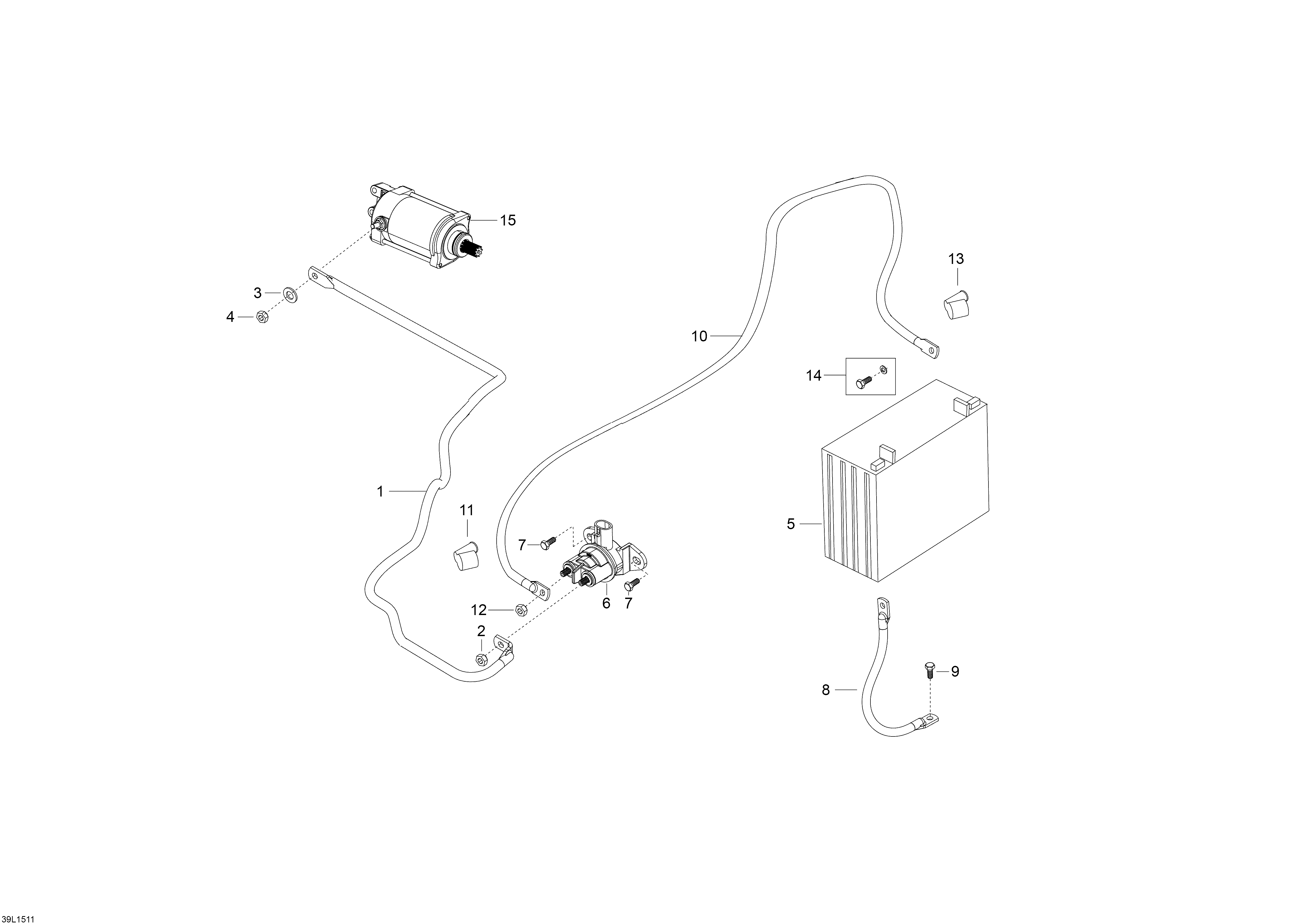

10- Battery And Starter для BRP Lynx Adventure GT 900 ACE - 2015
-
№АртикулНазвание
-
1515176945 Battery WireBattery Wire
-
2232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
3234061410 Flat Washer M6Flat Washer M6
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5296000295 Battery 18AhBattery 18Ah
-
6278003012 Starter SolenoidStarter Solenoid
-
7207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
8515176777 Ground WireGround Wire
-
9207661644 Hex.Flange Screw M6 x 16Hex.Flange Screw M6 x 16
-
10515176778 Battery WireBattery Wire
-
11570151000 Protection CapProtection Cap
-
12232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
13710000495 Protector CapProtector Cap
-
14250000282 Battery Fastener KitBattery Fastener Kit
-
15420892429 Electric Starter Ass'yElectric Starter Ass'y
