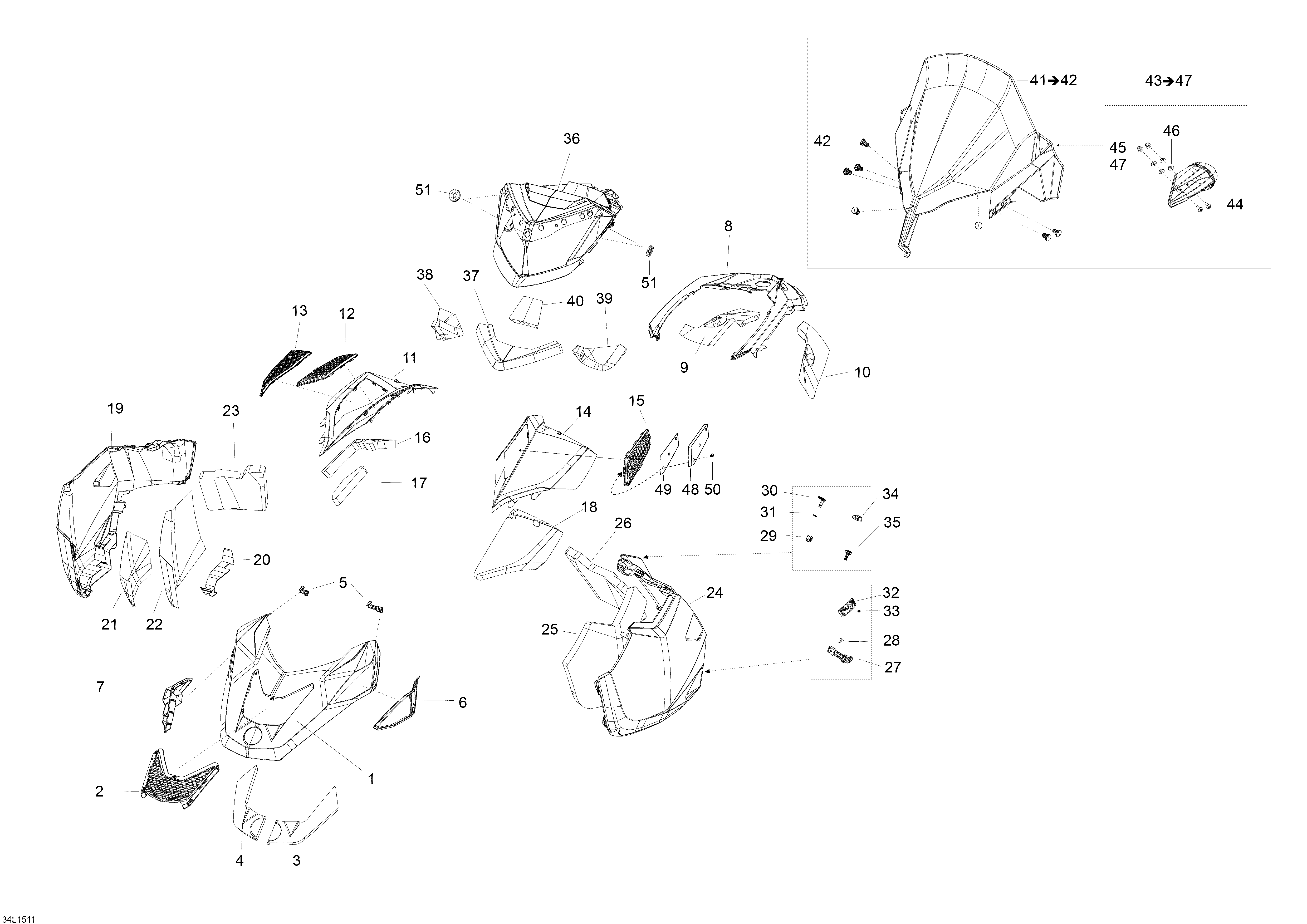

09- Hood And Windshield для BRP Lynx Adventure GT 900 ACE - 2015
-
№АртикулНазвание
-
1517305440 Hood, GreyHood, Grey
-
2517304843 Hood grill frontHood grill front
-
3517304330 Isolation L.H.Isolation L.H.
-
4517304214 Isolation R.H.Isolation R.H.
-
5517304289 LatchLatch
-
6508000609 Air filterAir filter
-
7517304155 Scoop grillScoop grill
-
8517305609 ConsoleConsole
-
8517305607 Console. ECS2 modelConsole. ECS2 model
-
9517304318 Isolation rightIsolation right
-
10517305644 Isolation leftIsolation left
-
11517305446 R.H. Upper Side panel, GreyR.H. Upper Side panel, Grey
-
12517304015 R.H. Acces panel grillR.H. Acces panel grill
-
13517304016 R.H. Lower sidepanel grillR.H. Lower sidepanel grill
-
14517305450 L.H. Upper Side panel, GreyL.H. Upper Side panel, Grey
-
15517303893 L.H. Acces panel grillL.H. Acces panel grill
-
16517304311 IsolationIsolation
-
17517304312 IsolationIsolation
-
18517304313 IsolationIsolation
-
19517304866 R.H. Side panelR.H. Side panel
-
20517304215 Heat protector alu foilHeat protector alu foil
-
21517304216 Heat protector alu foilHeat protector alu foil
-
22517304512 Heat protector alu foilHeat protector alu foil
-
23517304310 R.H. Isolation rearR.H. Isolation rear
-
24517304869 L.H. SidepanelL.H. Sidepanel
-
25517303891 L.H. IsolationL.H. Isolation
-
26517304309 L.H. Isolation rearL.H. Isolation rear
-
27517304572 LatchLatch
-
28605636003 RivetRivet
-
29517304297 Quarter-turn fastenerQuarter-turn fastener
-
30517304296 Quarter-turn handleQuarter-turn handle
-
31517304538 Locking plateLocking plate
-
32517304497 Side panel supportSide panel support
-
3336005 RivetRivet
-
34517304075 End pieceEnd piece
-
35517304573 Latch-panelLatch-panel
-
36517304272 Indicator supportIndicator support
-
37517304314 Isolation frontIsolation front
-
38517304315 Isolation rightIsolation right
-
39517304316 Isolation leftIsolation left
-
40517304319 Isolation middleIsolation middle
-
41860201000 Windshield Ass'yWindshield Ass'y
-
42517304744 KnobKnob
-
43517305787 Mirror Ass'y RH/LHMirror Ass'y RH/LH
-
44250000129 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
45232361493 Nut Hexagonal Domed M6Nut Hexagonal Domed M6
-
46250200024 Rubber Washer M5Rubber Washer M5
-
4720117 WasherWasher
-
48517305311 Insulator. OptionalInsulator. Optional
-
49502007312 Grill plate. OptionalGrill plate. Optional
-
50414644300 Dart. OptionalDart. Optional
-
51517303756 GrommetGrommet
