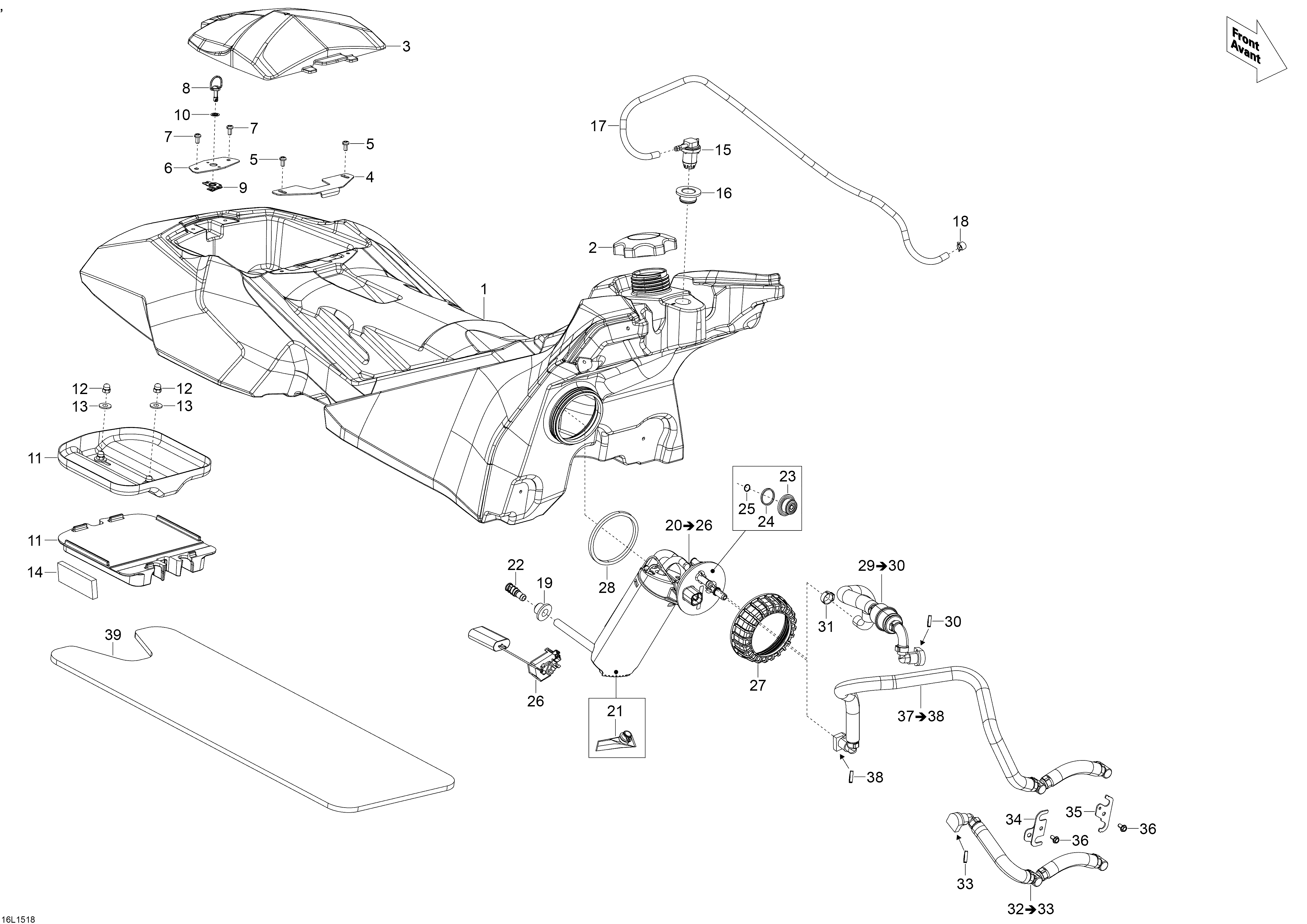

02- Fuel System для BRP Lynx BoonDocker 600 E-TEC - 2015
-
№АртикулНазвание
-
1513033725 Fuel TankFuel Tank
-
2513033723 CapCap
-
3513033705 Battery CoverBattery Cover
-
4513033775 Lock PlateLock Plate
-
5205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
6513033731 Lock PlateLock Plate
-
7205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
8513033735 Quarter Turn FastenerQuarter Turn Fastener
-
9513033736 Quarter Turn Fastener PlateQuarter Turn Fastener Plate
-
10732610072 Push NutPush Nut
-
11513033751 Fuel Tank SupportFuel Tank Support
-
11513033732 Fuel Tank Support. (Electric Start)Fuel Tank Support. (Electric Start)
-
12232361493 Hex. Domed Nut M6Hex. Domed Nut M6
-
13234062410 Flat Washer M6Flat Washer M6
-
14510006023 Foam. (Electric Start)Foam. (Electric Start)
-
15513033188 Check ValveCheck Valve
-
16513033596 GrommetGrommet
-
17415080200 Polyurethane HosePolyurethane Hose
-
18414554800 Spring ClampSpring Clamp
-
19293300184 GrommetGrommet
-
20513033794 Fuel Pump. Includes 20 To 26Fuel Pump. Includes 20 To 26
-
21415129451 Fuel Filter, PumpFuel Filter, Pump
-
22414872100 Fuel Filter, HoseFuel Filter, Hose
-
23415129821 RegulatorRegulator
-
24415129822 O RingO Ring
-
25415129823 O RingO Ring
-
26415129671 Fuel Level SensorFuel Level Sensor
-
27513033040 Fuel Pump NutFuel Pump Nut
-
28513033707 GasketGasket
-
29513033715 Fuel Hose Ass'y. Includes 29 To 30Fuel Hose Ass'y. Includes 29 To 30
-
30513033135 Locking ClipLocking Clip
-
31293650053 Crimp ClampCrimp Clamp
-
32513033594 Hose Ass'y. Includes 32 To 33Hose Ass'y. Includes 32 To 33
-
33513033135 Locking ClipLocking Clip
-
34513033542 RH BracketRH Bracket
-
35513033593 LH BracketLH Bracket
-
36207551044 Hex. Flange Screw M5 x 10Hex. Flange Screw M5 x 10
-
37513033648 Hose Ass'y. Includes 37 To 38Hose Ass'y. Includes 37 To 38
-
38513033135 Locking ClipLocking Clip
-
39513033701 Insulating FoamInsulating Foam
