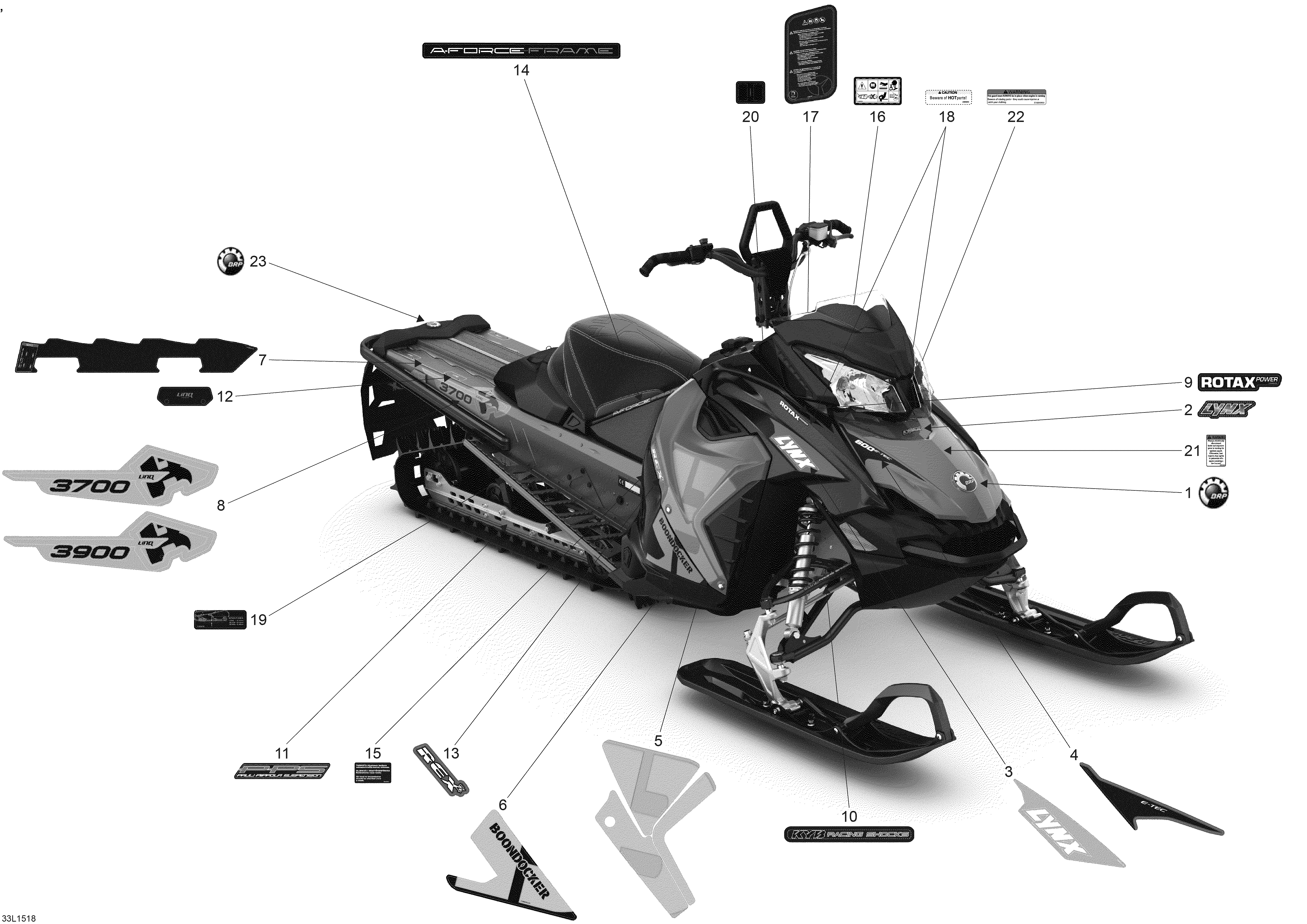

09- Decals для BRP Lynx BoonDocker 600 E-TEC - 2015
-
№АртикулНазвание
-
1704904613 BRP LogoBRP Logo
-
2516004333 Hood DecalHood Decal
-
3516006756 LH Sidepanel DecalLH Sidepanel Decal
-
3516006757 RH Sidepanel DecalRH Sidepanel Decal
-
4516005934 LH Hood DecalLH Hood Decal
-
4516005935 RH Hood DecalRH Hood Decal
-
5516006735 LH Sidepanel DecalLH Sidepanel Decal
-
5516006736 RH Sidepanel DecalRH Sidepanel Decal
-
6516006739 LH Sidepanel DecalLH Sidepanel Decal
-
6516006740 RH Sidepanel DecalRH Sidepanel Decal
-
7516006344 LH Tunnel Decal. (3700)LH Tunnel Decal. (3700)
-
7516006345 RH Tunnel Decal. (3700)RH Tunnel Decal. (3700)
-
7516006342 LH Tunnel Decal. (3900)LH Tunnel Decal. (3900)
-
7516006343 RH Tunnel Decal. (3900)RH Tunnel Decal. (3900)
-
8516006751 LH Tunnel Decal. (3700)LH Tunnel Decal. (3700)
-
8516006752 RH Tunnel Decal. (3700)RH Tunnel Decal. (3700)
-
8516006753 LH Tunnel Decal. (3900)LH Tunnel Decal. (3900)
-
8516006754 RH Tunnel Decal. (3900)RH Tunnel Decal. (3900)
-
9516006331 Rotax Power DecalRotax Power Decal
-
10516004170 KYB Racing Shocks DecalKYB Racing Shocks Decal
-
11516005674 PPS DecalPPS Decal
-
12516006308 LinkQ DecalLinkQ Decal
-
13516005919 REX2 Platform DecalREX2 Platform Decal
-
14516006688 A-Force Frame DecalA-Force Frame Decal
-
155447012 Oil Checking DecalOil Checking Decal
-
16516003919 Warning DecalWarning Decal
-
17516004607 Instr./Warning (EN/FI/SWE) DecalInstr./Warning (EN/FI/SWE) Decal
-
18516004651 Hot Parts DecalHot Parts Decal
-
19516006395 Track Tension DecalTrack Tension Decal
-
20516006361 Console Buttonhole Cover DecalConsole Buttonhole Cover Decal
-
21516005583 Inject. DecalInject. Decal
-
22516006900 Driven Pulley Shield Warning DecalDriven Pulley Shield Warning Decal
-
23219903947 BRP LogoBRP Logo
